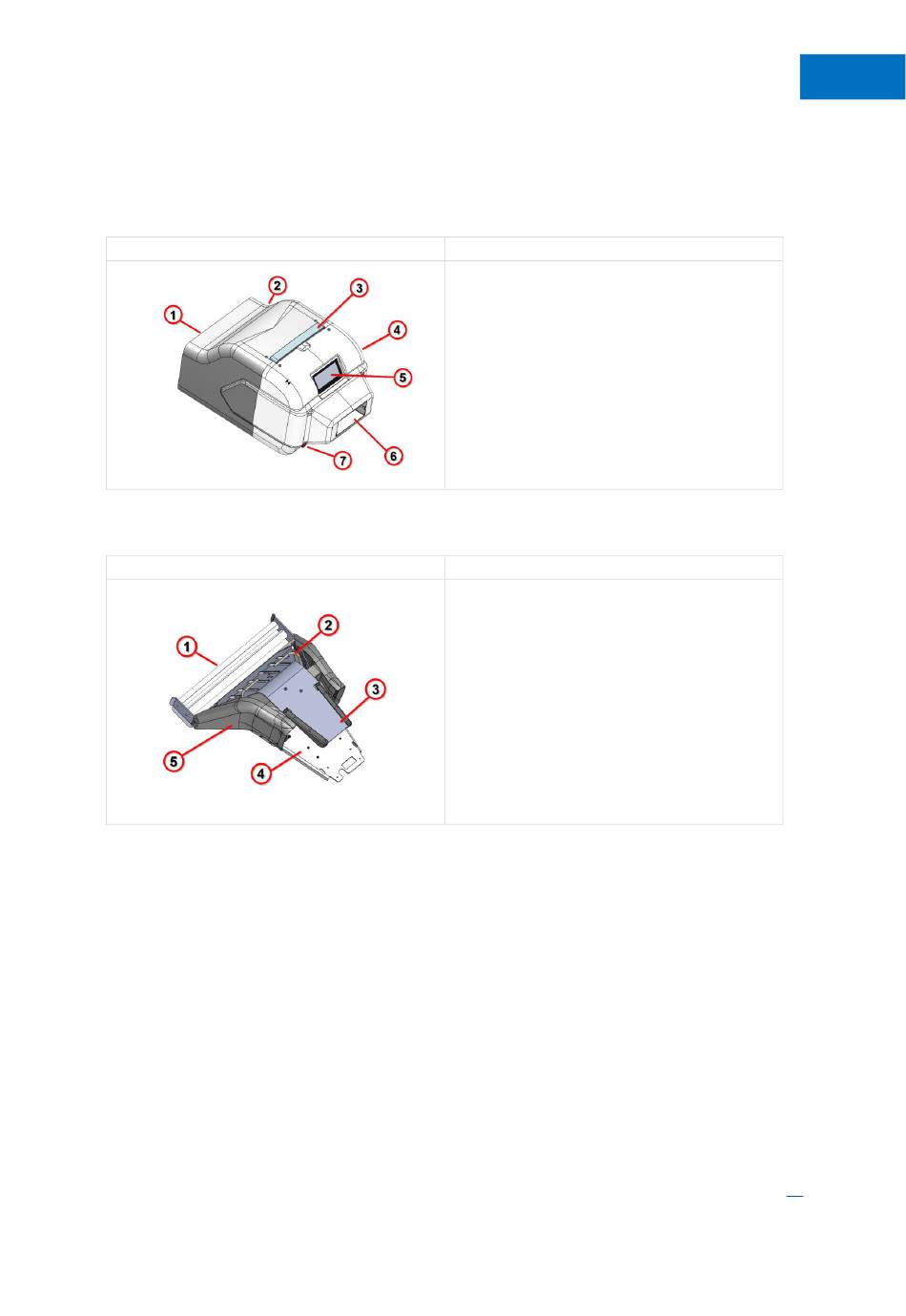

Description PAPERplus® Classic-CX
The following sections list the individual components of the PAPERplus®Classic-CX and provide
a description of how they work.
5.1 Machine design without feeder
Figure
5.2 Feeder design without machine
Figure
5.3 Overall function
•
Insert paper into the PAPERplus®Classic-CX.
•
Various paper lengths, crumpling factors and quantities can be set using the HMI
control panel.
•
The paper is fed into the machine via a roller system and the guide table.
•
The crumpled paper is discharged at the outfeed.
•
In an emergency, the machine can be stopped by pressing the emergency stop button.
Description
1 Paper feed
2 Rear housing half
3 Extendable carrying handle
4 Front housing half
5 HMI control panel
6 Paper outfeed
7 Emergency stop button
Rollers are fitted inside the unit for
crumpling the paper.
Description
1 Support rollers
2 Bracket
3 Guide table
4 Support plate
5 Housing
The feeder must be mounted on a suitable
base provided by Storopack.
