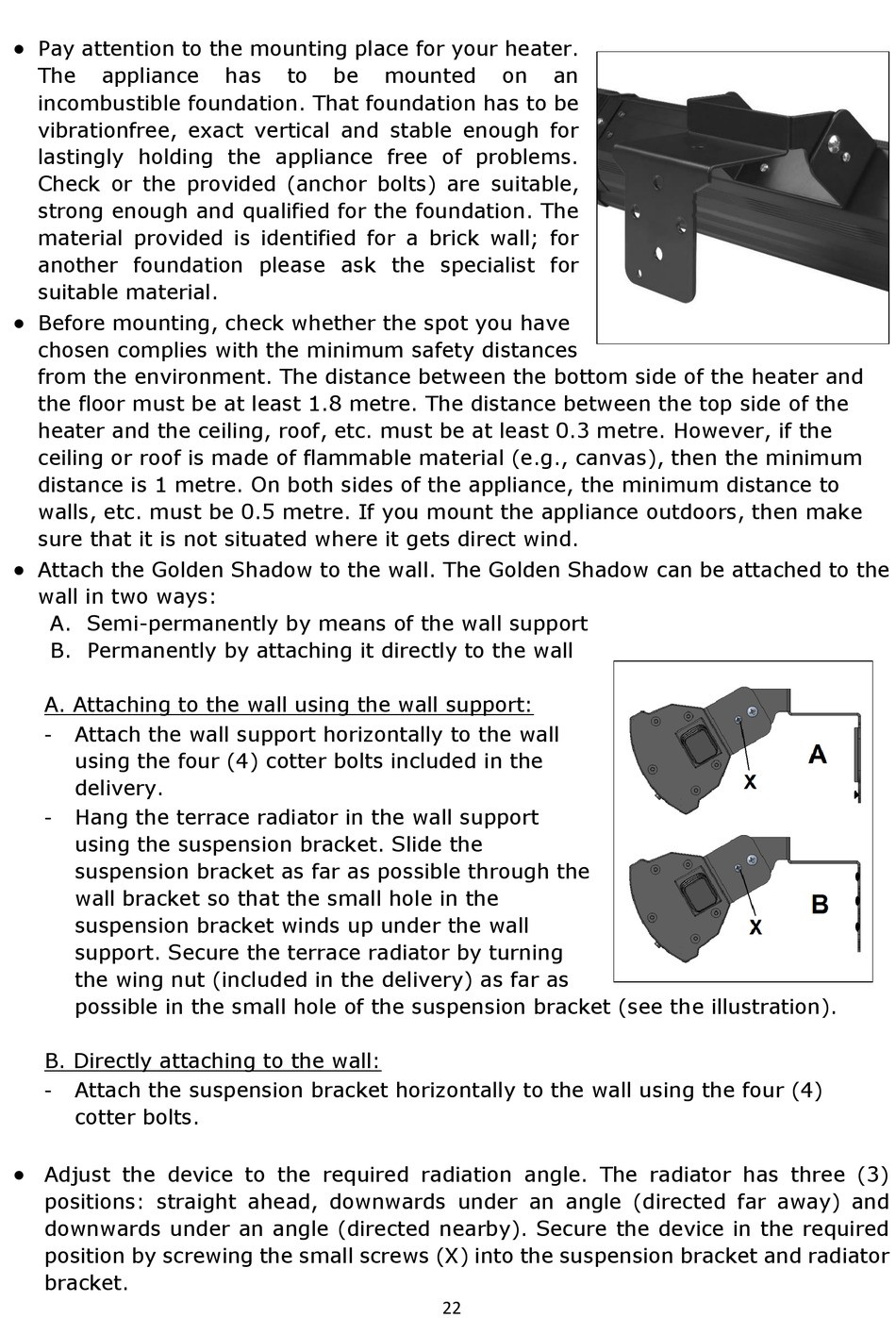

EUROM 334425 Gebrauchsanleitung Seite 22


Pay attention to the mounting place for your heater.
The appliance
incombustible foundation. That foundation has to be
vibrationfree, exact vertical and stable enough for
lastingly holding the appliance free of problems.
Check or the provided (anchor bolts) are suitable,
strong enough and qualified for the foundation. The
material provided is identified for a brick wall; for
another foundation please ask the specialist for
suitable material.

Before mounting, check whether the spot you have
chosen complies with the minimum safety distances
from the environment. The distance between the bottom side of the heater and
the floor must be at least 1.8 metre. The distance between the top side of the
heater and the ceiling, roof, etc. must be at least 0.3 metre. However, if the
ceiling or roof is made of flammable material (e.g., canvas), then the minimum
distance is 1 metre. On both sides of the appliance, the minimum distance to
walls, etc. must be 0.5 metre. If you mount the appliance outdoors, then make
sure that it is not situated where it gets direct wind.

Attach the Golden Shadow to the wall. The Golden Shadow can be attached to the
wall in two ways:
A. Semi-permanently by means of the wall support
B. Permanently by attaching it directly to the wall
A. Attaching to the wall using the wall support:
Attach the wall support horizontally to the wall
-
using the four (4) cotter bolts included in the
delivery.
Hang the terrace radiator in the wall support
-
using the suspension bracket. Slide the
suspension bracket as far as possible through the
wall bracket so that the small hole in the
suspension bracket winds up under the wall
support. Secure the terrace radiator by turning
the wing nut (included in the delivery) as far as
possible in the small hole of the suspension bracket (see the illustration).
B. Directly attaching to the wall:
Attach the suspension bracket horizontally to the wall using the four (4)
-
cotter bolts.

Adjust the device to the required radiation angle. The radiator has three (3)
positions: straight ahead, downwards under an angle (directed far away) and
downwards under an angle (directed nearby). Secure the device in the required
position by screwing the small screws (X) into the suspension bracket and radiator
bracket.
has to be mounted on an
22
