MD 9250 Clamp Meter Series

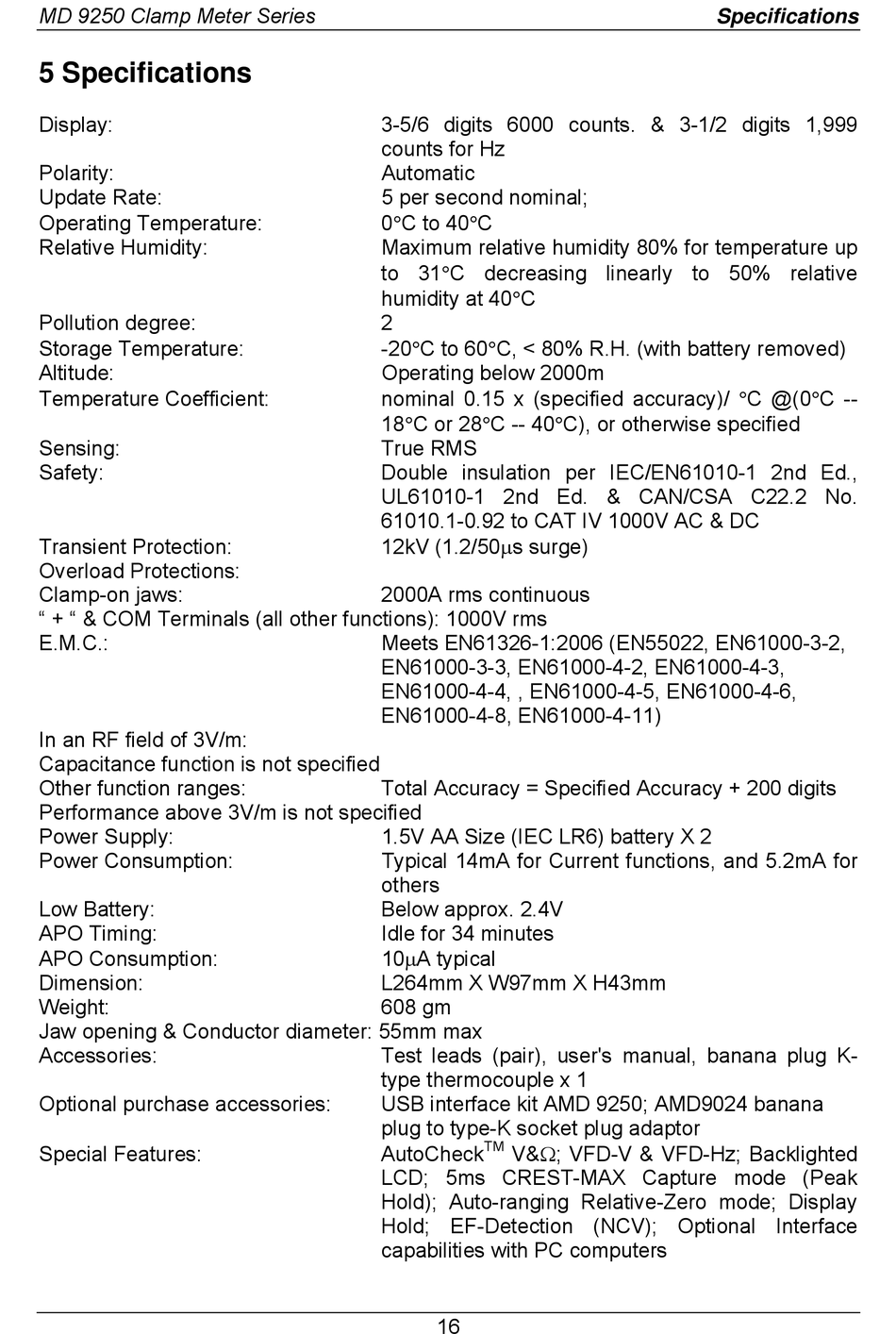

5 Specifications

Display:
Polarity:
Update Rate:
Operating Temperature:
Relative Humidity:
Pollution degree:
Storage Temperature:
Altitude:
Temperature Coefficient:
Sensing:
Safety:
Transient Protection:
Overload Protections:
Clamp-on jaws:
" + " & COM Terminals (all other functions): 1000V rms
E.M.C.:
In an RF field of 3V/m:
Capacitance function is not specified
Other function ranges:
Performance above 3V/m is not specified
Power Supply:
Power Consumption:
Low Battery:
APO Timing:
APO Consumption:
Dimension:
Weight:
Jaw opening & Conductor diameter: 55mm max
Accessories:
Optional purchase accessories:
Special Features:
3-5/6 digits 6000 counts. & 3-1/2 digits 1,999
counts for Hz
Automatic
5 per second nominal;
0C to 40C
Maximum relative humidity 80% for temperature up
to 31C decreasing linearly to 50% relative
humidity at 40C
2
-20C to 60C, < 80% R.H. (with battery removed)
Operating below 2000m
nominal 0.15 x (specified accuracy)/ C @(0C --
18C or 28C -- 40C), or otherwise specified
True RMS
Double insulation per IEC/EN61010-1 2nd Ed.,
UL61010-1 2nd Ed. & CAN/CSA C22.2 No.
61010.1-0.92 to CAT IV 1000V AC & DC
12kV (1.2/50s surge)
2000A rms continuous
Meets EN61326-1:2006 (EN55022, EN61000-3-2,
EN61000-3-3, EN61000-4-2, EN61000-4-3,
EN61000-4-4, , EN61000-4-5, EN61000-4-6,
EN61000-4-8, EN61000-4-11)
Total Accuracy = Specified Accuracy + 200 digits
1.5V AA Size (IEC LR6) battery X 2
Typical 14mA for Current functions, and 5.2mA for
others
Below approx. 2.4V
Idle for 34 minutes
10A typical
L264mm X W97mm X H43mm
608 gm
Test leads (pair), user's manual, banana plug K-
type thermocouple x 1
USB interface kit AMD 9250; AMD9024 banana
plug to type-K socket plug adaptor
TM
AutoCheck V&; VFD-V & VFD-Hz; Backlighted
LCD; 5ms CREST-MAX Capture mode (Peak
Hold); Auto-ranging Relative-Zero mode; Display
Hold; EF-Detection (NCV); Optional Interface
capabilities with PC computers
16
Specifications
