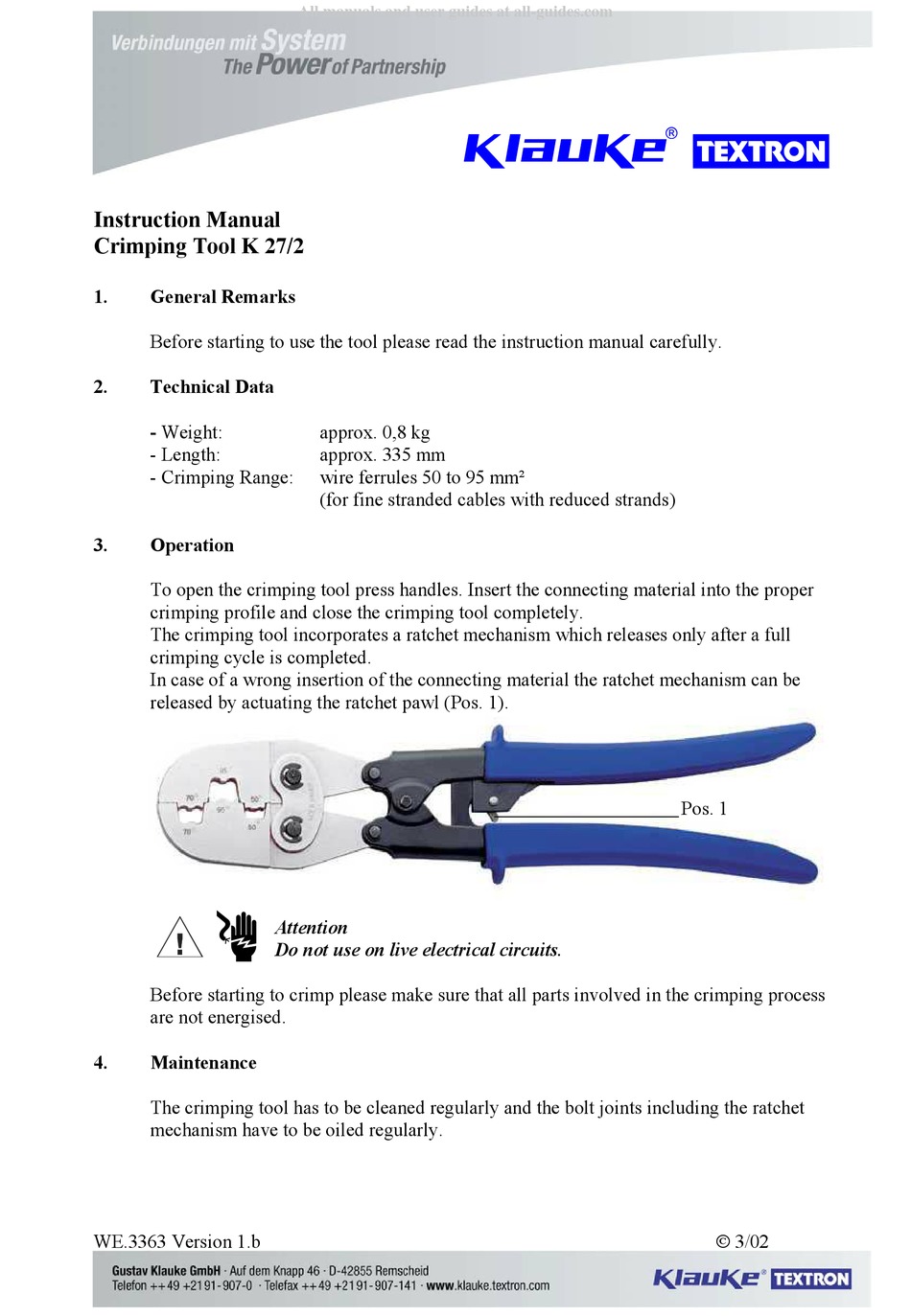

Instruction Manual
Crimping Tool K 27/2
1.
General Remarks
Before starting to use the tool please read the instruction manual carefully.
2.
Technical Data
- Weight:
- Length:
- Crimping Range:
3.
Operation
To open the crimping tool press handles. Insert the connecting material into the proper
crimping profile and close the crimping tool completely.
The crimping tool incorporates a ratchet mechanism which releases only after a full
crimping cycle is completed.
In case of a wrong insertion of the connecting material the ratchet mechanism can be
released by actuating the ratchet pawl (Pos. 1).
Before starting to crimp please make sure that all parts involved in the crimping process
are not energised.
4.
Maintenance
The crimping tool has to be cleaned regularly and the bolt joints including the ratchet
mechanism have to be oiled regularly.
WE.3363 Version 1.b
All manuals and user guides at all-guides.com
approx. 0,8 kg
approx. 335 mm
wire ferrules 50 to 95 mm²
(for fine stranded cables with reduced strands)
Attention
Do not use on live electrical circuits.
Pos. 1
 3/02
