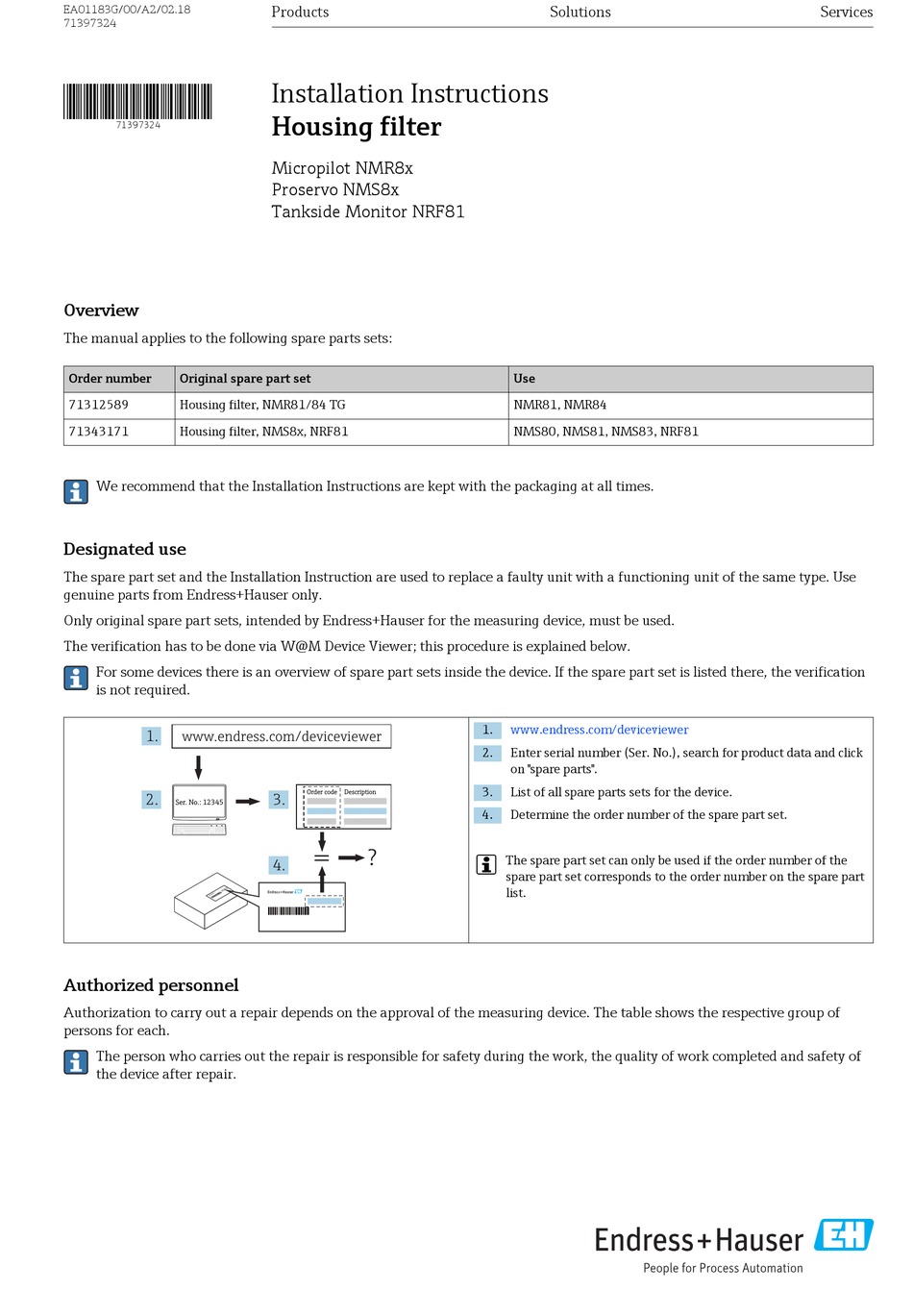

EA01183G/00/A2/02.18
71397324
*71397324*
71397324
Overview
The manual applies to the following spare parts sets:
Order number
Original spare part set
71312589
Housing filter, NMR81/84 TG
71343171
Housing filter, NMS8x, NRF81
We recommend that the Installation Instructions are kept with the packaging at all times.
Designated use
The spare part set and the Installation Instruction are used to replace a faulty unit with a functioning unit of the same type. Use
genuine parts from Endress+Hauser only.
Only original spare part sets, intended by Endress+Hauser for the measuring device, must be used.
The verification has to be done via W@M Device Viewer; this procedure is explained below.
For some devices there is an overview of spare part sets inside the device. If the spare part set is listed there, the verification
is not required.
1.
www.endress.com/deviceviewer
2.
Ser. No.: 12345
Authorized personnel
Authorization to carry out a repair depends on the approval of the measuring device. The table shows the respective group of
persons for each.
The person who carries out the repair is responsible for safety during the work, the quality of work completed and safety of
the device after repair.
Products
Installation Instructions
Housing filter
Micropilot NMR8x
Proservo NMS8x

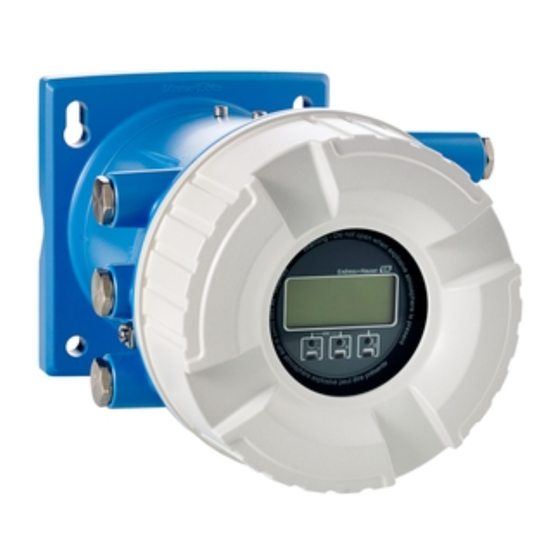

Tankside Monitor NRF81
Order code
Description
3.
=
?
4.
Solutions
Use
NMR81, NMR84
NMS80, NMS81, NMS83, NRF81
1.
www.endress.com/deviceviewer
2.
Enter serial number (Ser. No.), search for product data and click
on "spare parts".
3.
List of all spare parts sets for the device.
4.
Determine the order number of the spare part set.
The spare part set can only be used if the order number of the
spare part set corresponds to the order number on the spare part
list.
Services
Werbung
Verwandte Anleitungen für Endress+Hauser NRF8 Serie
Inhaltszusammenfassung für Endress+Hauser NRF8 Serie
- Seite 1 The spare part set and the Installation Instruction are used to replace a faulty unit with a functioning unit of the same type. Use genuine parts from Endress+Hauser only. Only original spare part sets, intended by Endress+Hauser for the measuring device, must be used. The verification has to be done via W@M Device Viewer; this procedure is explained below.
- Seite 2 1, 2, 3 With approval (e.g. IECEx) 1, 2, 3 1 = Trained customer technician, 2 = Service technician authorized by Endress+Hauser, 3 = Endress+Hauser (send measuring device back to manufacturer) Safety instructions • Check whether the spare part matches the identification •...
- Seite 3 Housing filter, NMR81/84 TG (2 pieces) 1 → 19 mm 17 mm 11 Nm 2.5 Nm Re-assembly has to be done in reverse order. Housing filter, NMS8x, NRF81 19 mm 11 Nm Re-assembly has to be done in reverse order. Endress+Hauser...
- Seite 5 Bestimmungsgemäße Verwendung Ersatzteilset und Einbauanleitung dienen dazu, eine defekte Einheit gegen eine funktionierende Einheit des gleichen Typs zu ersetzen. Es dürfen nur Originalteile von Endress+Hauser verwendet werden. Grundsätzlich dürfen nur Ersatzteilsets verwendet werden, die von Endress+Hauser für das Messgerät vorgesehen sind.
- Seite 6 Ohne Zulassung 1, 2, 3 Mit Zulassung (z.B. IECEx) 1, 2, 3 1 = Ausgebildete Fachkraft des Kunden, 2 = Von Endress+Hauser autorisierter Servicetechniker, 3 = Endress+Hauser (Messgerät an Hersteller zurücksenden) Sicherheitshinweise • Prüfen, ob das vorliegende Ersatzteil zur Kennzeichnung auf •...
- Seite 7 2,5 Nm 11 Nm Gehäusefilter austauschen Gehäusefilter, NMR81/84 TG (2 Stück) 1 → 19 mm 17 mm 11 Nm 2.5 Nm Der Einbau erfolgt in umgekehrter Reihenfolge. Gehäusefilter, NMS8x, NRF81 19 mm 11 Nm Der Einbau erfolgt in umgekehrter Reihenfolge. Endress+Hauser...
