*ER=A550IM
<<When sliding backwards>>
<4 Fig. 5

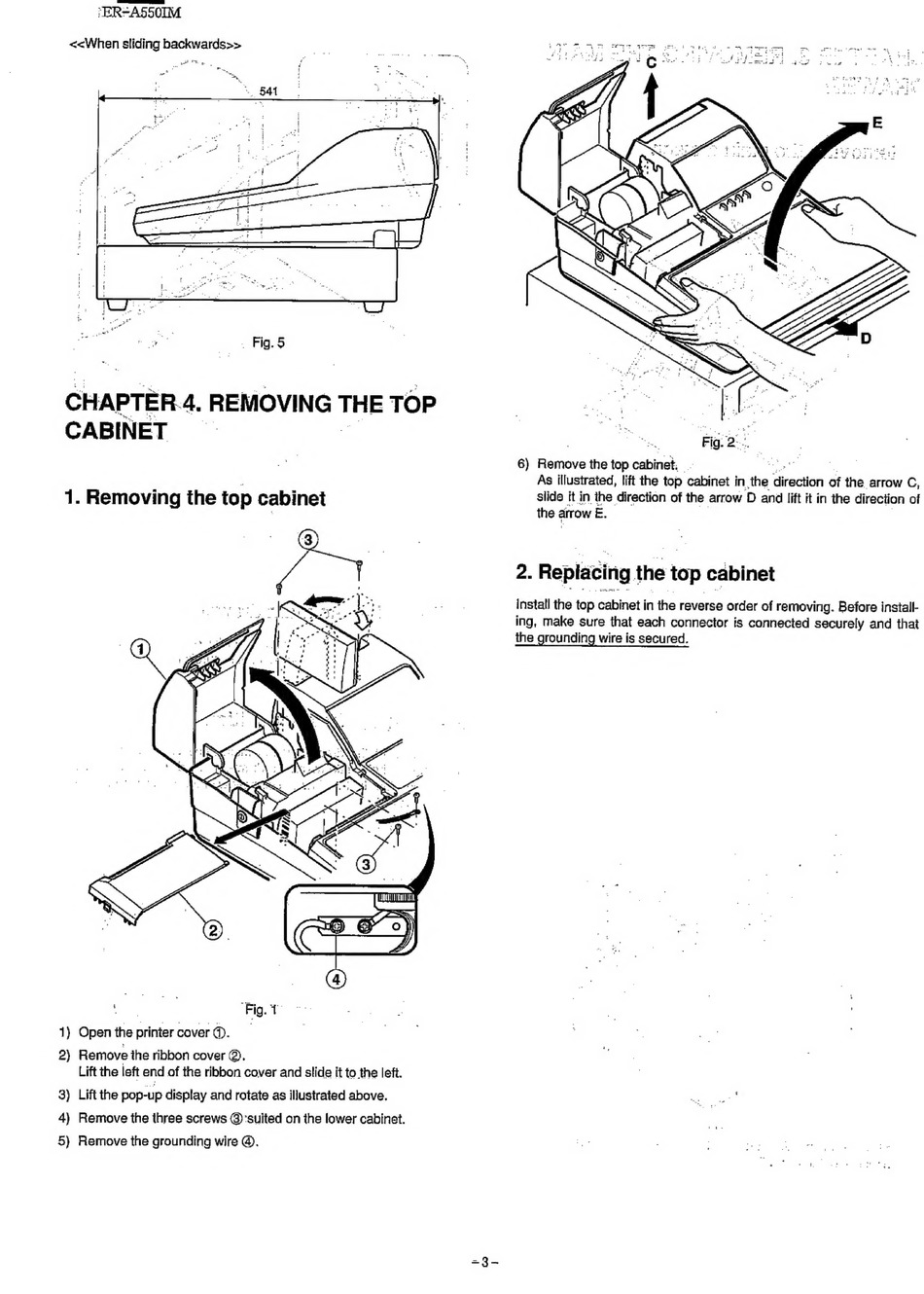

CHAPTER.4, REMOVING THE TOP
Is:
.
CABINET
2. Replacing the top cabinet
install the top cabinet in the reverse order of removing. Before install-
ing, make sure that each connector is connected securely and that
the grounding wire is secured.
'Fig. io
1} Open the printer cover ®@.
2} Remove the ribbon cover @.
Lift the left end of the ribbon cover and slide it to the left.
3) Lift the pop-up display and rotate as illustrated above.
4) Remove the three screws @:suited on the lower cabinet.
5) Remove the grounding wire @.
