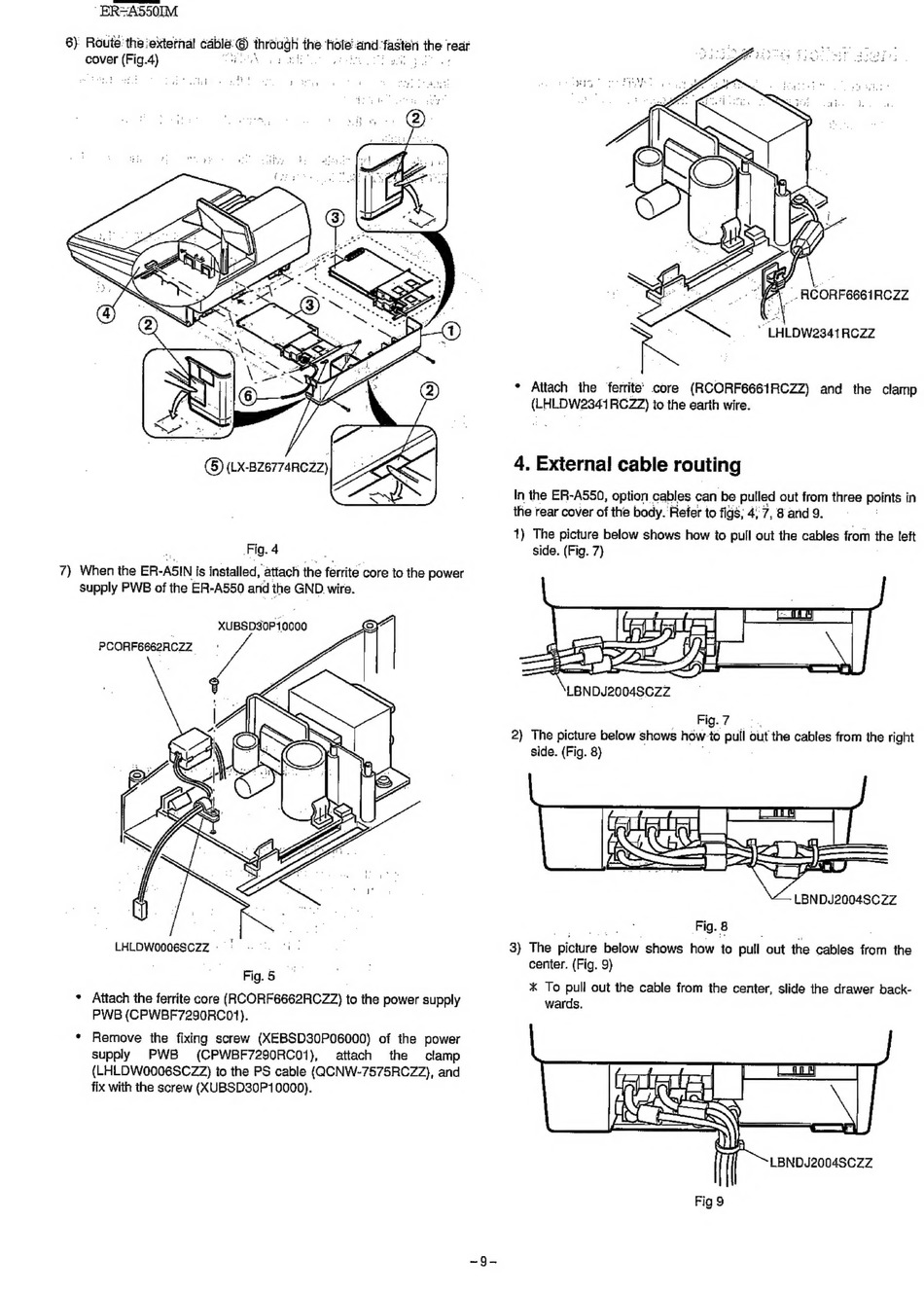

"ER+A550IM
Fig. 4
7) When the ER-ASIN is installed, attach the ferrite core to the power
supply PWB of the ER-A550 and the GND wire.
XUBSD0P10000
PCORF6662RCZZ_
LHLDWooo6SCZZ-
5
|
>
Fig. 5
.
* Attach the ferrite core (RCORF6662RCZZ) to the power supply
PWB (CPWBF7290RC01).
* Remove
the fixing screw (XEBSD30P06000)
of the power
supply
PWB
(CPWBF7290RC01),
attach
the
clamp
(LHLDWO0006SCZZ) io the PS cable (QCNW-7575RCZZ), and
fix with the screw (XUBSD30P10000).
* ACORF6661RCZZ
* Attach ihe ferrite' core (RCORF6661RCZZ)
and the clamp
(LHLDW2341RCZZ) to the earth wire.
4. External cable routing
In the ER-AS50, option cables can be pulled out from three points in
the rear cover of the body. Refer to figs; 4; 7, 8 and 9.
1) The picture below shows how to pull out the cables from the left
side. (Fig. 7}
LBNDJ20048CZZ
_
Fig.7
2) The picture below shows how to pull out the cables from the right
side. (Fig. 8)
Fig. 8
3) The picture below shows how to pull out the cables from the
center. (Fig. 9)
x To pull out the cable from the center, slide the drawer back-
wards.
aieted |
=
| (aA Gath
mt
WS
Sy
_\
Ny!
ed
a
| BNDJ20048CZZ
