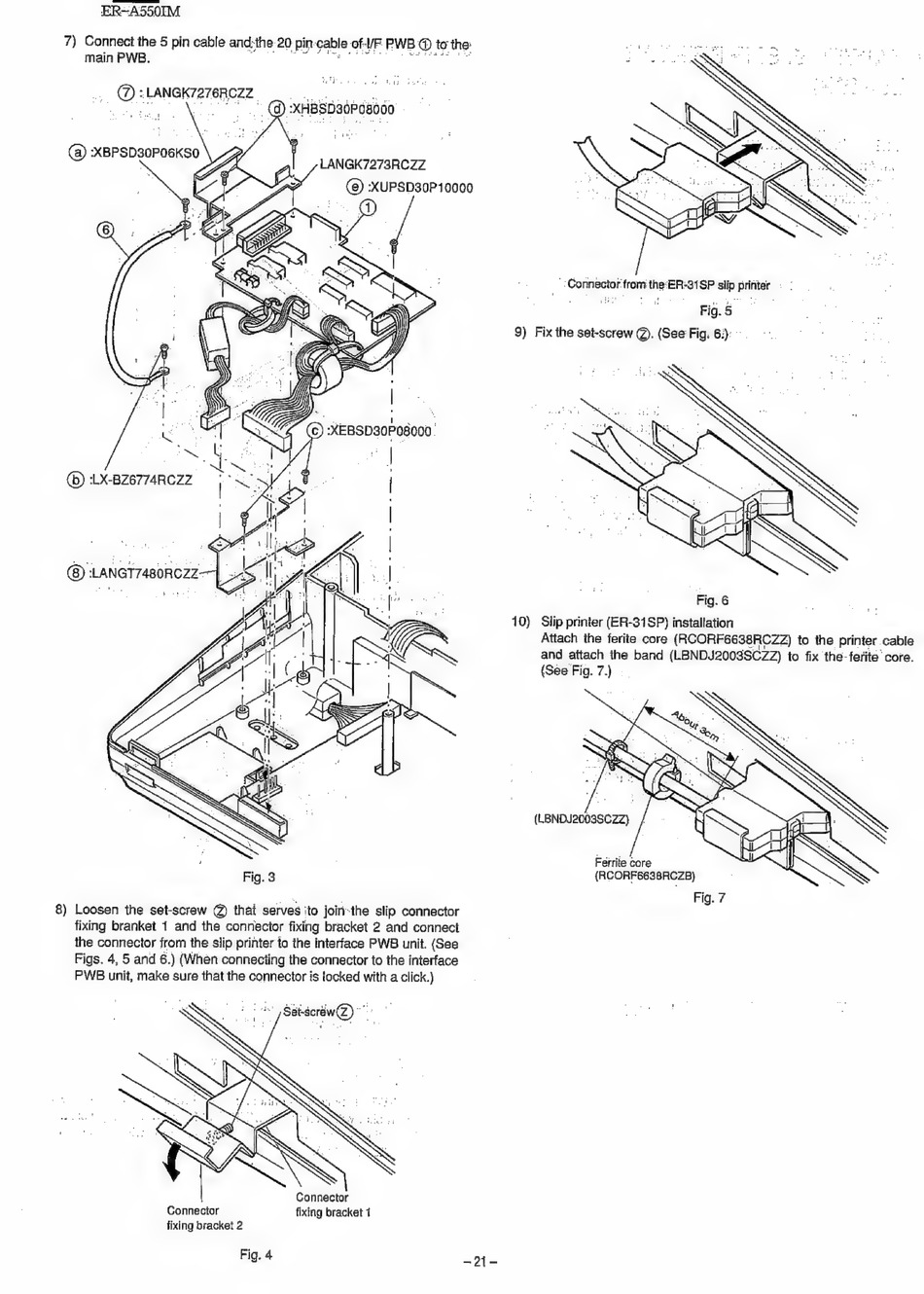

Sharp ER-A550 Installationsanleitung Seite 22

ER~A550IM
@ :xHBSD3dPC8000 ©
LANGK7273RCZZ
'XUPSD30P10000
Fig. 3
8) Loosen the set-screw @ thai serves ito join-the slip connector
fixing branket 1 and the connecior fixing bracket 2 and connect
the connector from the slip printer to the interface PWB unit. (See
Figs. 4, 5 and 6.) (When connecting the connector to the interface
PWB unit, make sure that the connector is tocked with a click.)
Connector
fixing bracket 1
Connector
fixing bracket 2
Fig. 4
aap
_ Connector from theER:31SP slip printer = -
. ane pens rig
9) Fix the set-screw @. (See Fig. 6.) .
Fig. 6
10) Slip printer (ER-31SP) installation
Attach the ferite core (RCORF6638RCZZ) to the printer cable
and attach the band (LBNDJ2003SCZz) to fix the-ferite core.
(See Fig. 7.)
Ferrite core
(RCORF6638RCZB)
Fig. 7
