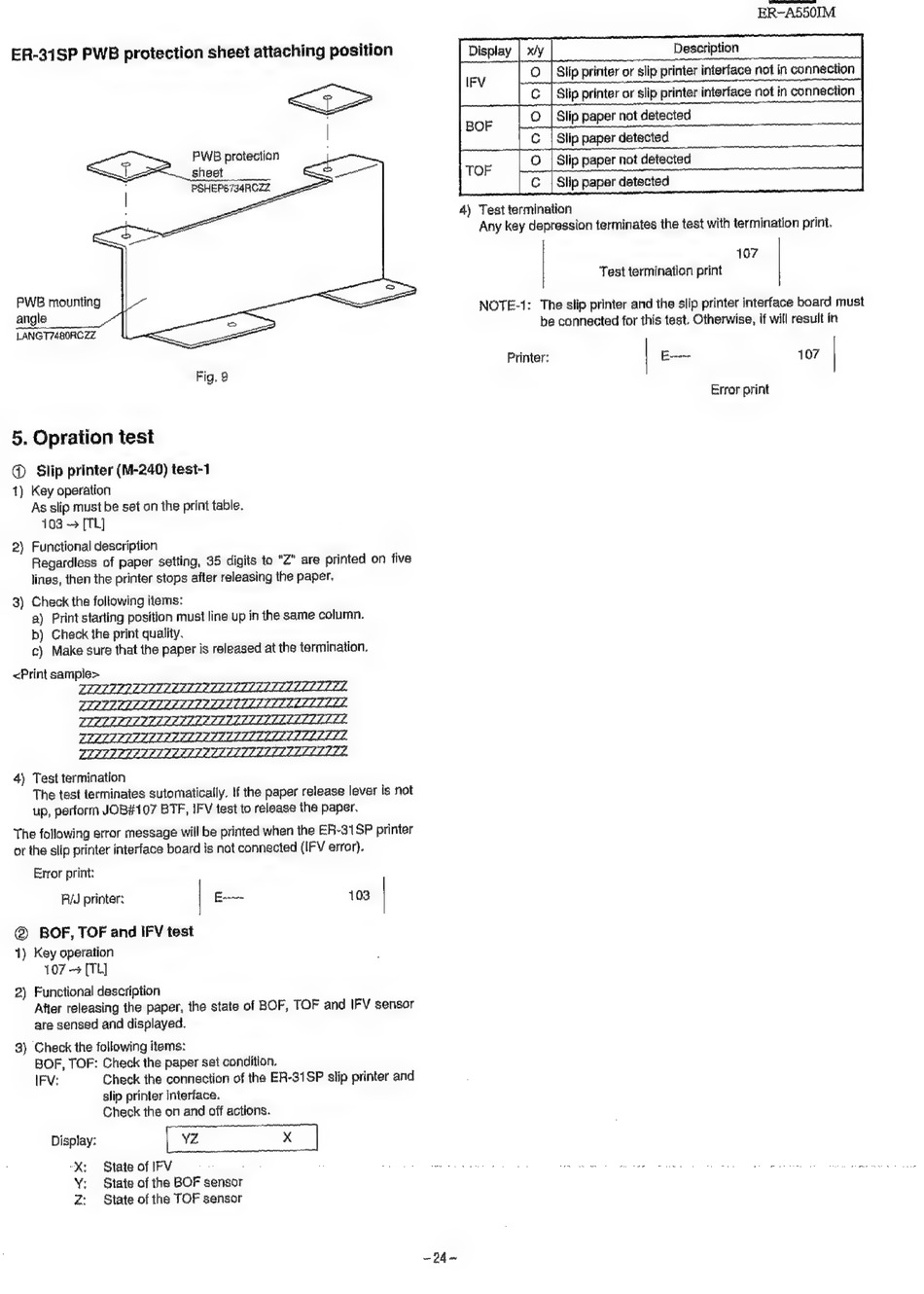

PWB protection
sheet
PSHEPE7S4RCZZ
PWB mounting
angle
LANG T74R0RC2ZZ
5. Opration test
@) Slip printer (M-240) test-1
1) Key operation
As slip must be set an the print table.
103 ~> [TL]
2) Functional description
Regardless of paper setting, 35 digits to "2" are printed on five
lines, then the printer stops alter releasing the paper.
3) Check the following items:
a) Print starting position must line up in the same column.
b) Gheck the print quality.
c) Make sure that the paper is released at the termination.
<Print sample>
L2LELTELLLTAT EL
@ BOF, TOF and IFV test
1) Key operation
107 ~+ [TL]
2) Functional description
Atier releasing the paper, the state of BOF, TOF and IFV sensor
are sensed and displayed.
8) Check the following items:
BOF, TOF: Check the paper set condition.
-X: State of IFV
Y¥: State of the BOF sensor
Z: State of the TOF sensor
Mohn
ER-A550IM
Display
ig
©. | Slip printer or slip printer interface not in connection
Slip printer or slip printer interface not in connection
BOE oO | Slip paper not detected
Slip paper detected
Rew Slip paper not detected
Slip paper detected
4) Test termination
Any key depression terminates the test with termination print,
107
Test termination print
Error print
