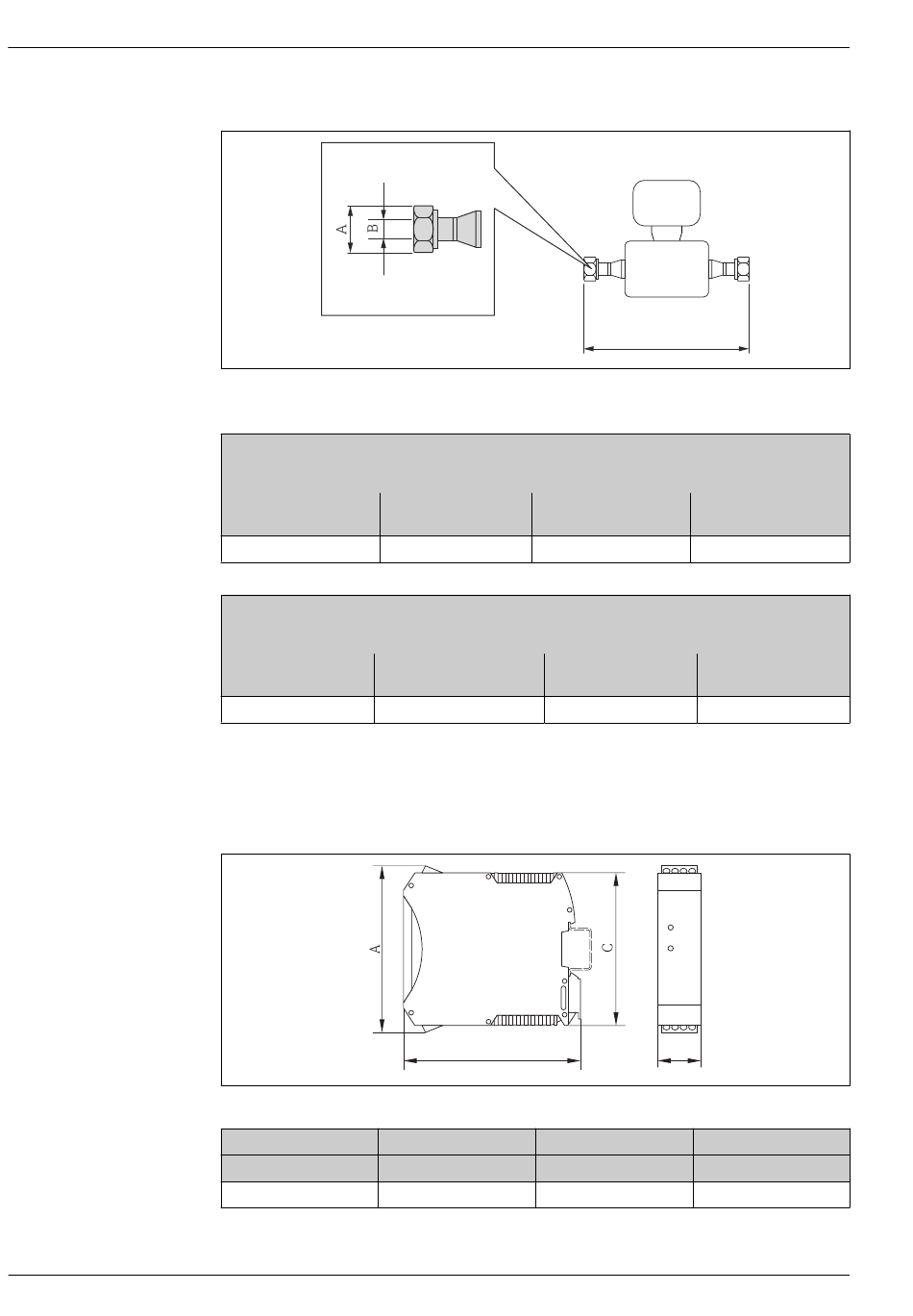

VCO
 38 Maßeinheit mm (in)
8-VCO-4 (½")
1.4404 (316/316L)
Bestellmerkmal "Prozessanschluss", Option CVS
DN
[mm]
8
12-VCO-4 (¾")
1.4404 (316/316L)
Bestellmerkmal "Prozessanschluss", Option CWS
DN
[mm]
15
Safety Barrier Promass 100
Hutschiene EN 60715:
• TH 35 x 7,5
• TH 35 x 15
A
[mm]
108
A B
[in] [mm]
SW 1 10,2
A
[in] [mm]
SW 1½ 15,7
B
B C
[mm] [mm]
114,5 99
Proline Promass E 100
+1,5 (+0.06)
L
-2,0 (-0.08)
L
[mm]
252
B L
[mm]
305
D
D
[mm]
22,5
