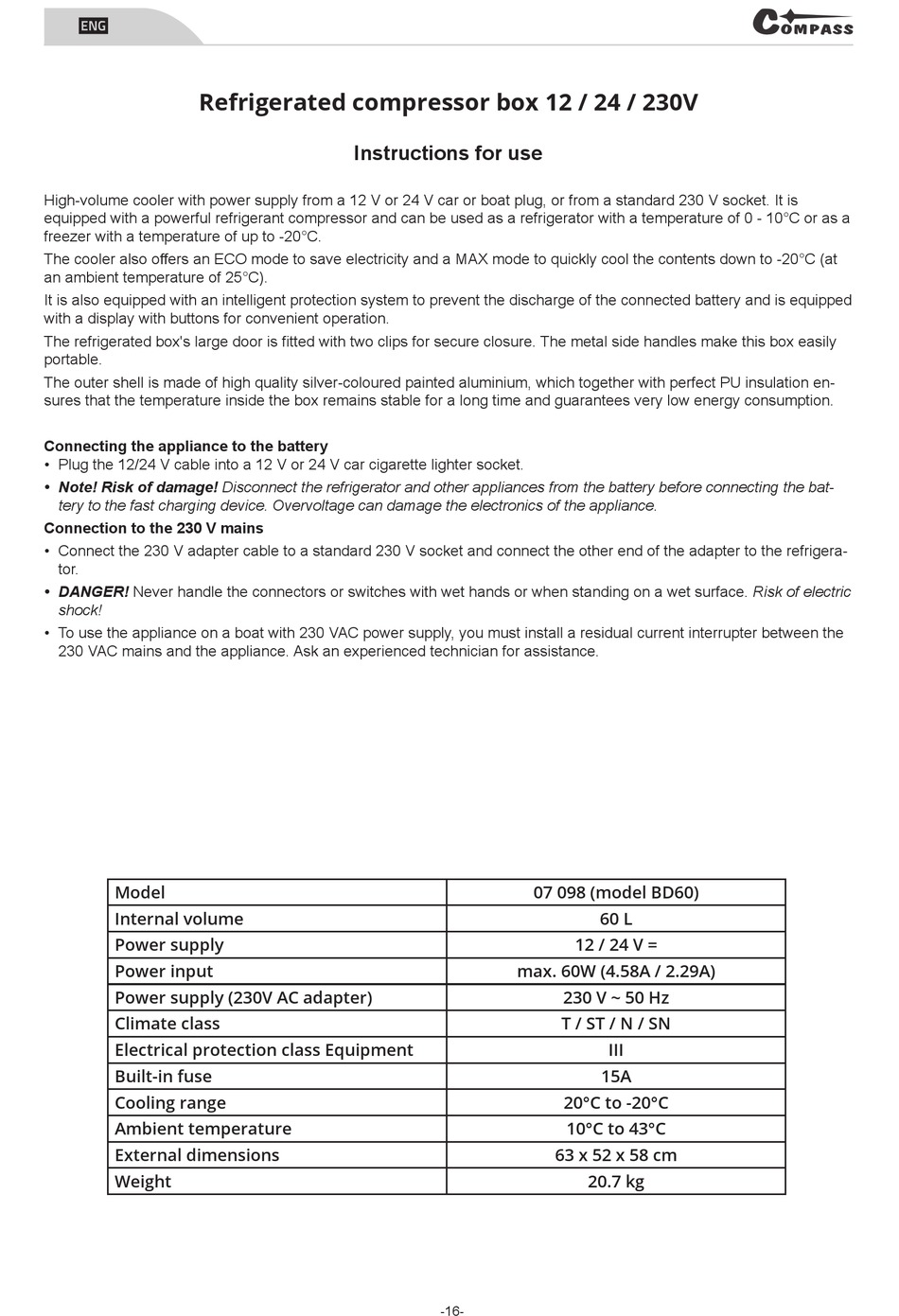

Compass BIG FRIDGE Bedienungsanleitung Seite 16

e
Refrigerated compressor box 12 / 24 / 230V
High-volume cooler with power supply from a 12 V or 24 V car or boat plug, or from a standard 230 V socket. It is
equipped with a powerful refrigerant compressor and can be used as a refrigerator with a temperature of 0 - 10°C or as a
freezer with a temperature of up to -20°C.
The cooler also offers an ECO mode to save electricity and a MAX mode to quickly cool the contents down to -20°C (at
an ambient temperature of 25°C).
It is also equipped with an intelligent protection system to prevent the discharge of the connected battery and is equipped
with a display with buttons for convenient operation.
The refrigerated box's large door is fitted with two clips for secure closure. The metal side handles make this box easily
portable.
The outer shell is made of high quality silver-coloured painted aluminium, which together with perfect PU insulation en-
sures that the temperature inside the box remains stable for a long time and guarantees very low energy consumption.
Connecting the appliance to the battery
• Plug the 12/24 V cable into a 12 V or 24 V car cigarette lighter socket.
• Note! Risk of damage! Disconnect the refrigerator and other appliances from the battery before connecting the bat-
tery to the fast charging device. Overvoltage can damage the electronics of the appliance.
Connection to the 230 V mains
• Connect the 230 V adapter cable to a standard 230 V socket and connect the other end of the adapter to the refrigera-
tor.
• DANGER! Never handle the connectors or switches with wet hands or when standing on a wet surface. Risk of electric
shock!
• To use the appliance on a boat with 230 VAC power supply, you must install a residual current interrupter between the
230 VAC mains and the appliance. Ask an experienced technician for assistance.
Model
Internal volume
Power supply
Power input
Power supply (230V AC adapter)
Climate class
Electrical protection class Equipment
Built-in fuse
Cooling range
Ambient temperature
External dimensions
Weight
Instructions for use
max. 60W (4.58A / 2.29A)
-16-
07 098 (model BD60)
60 L
12 / 24 V =
230 V ~ 50 Hz
T / ST / N / SN
III
15A
20°C to -20°C
10°C to 43°C
63 x 52 x 58 cm
20.7 kg
