3.2.2.2 Power supply and synchronisation connections
Power supply

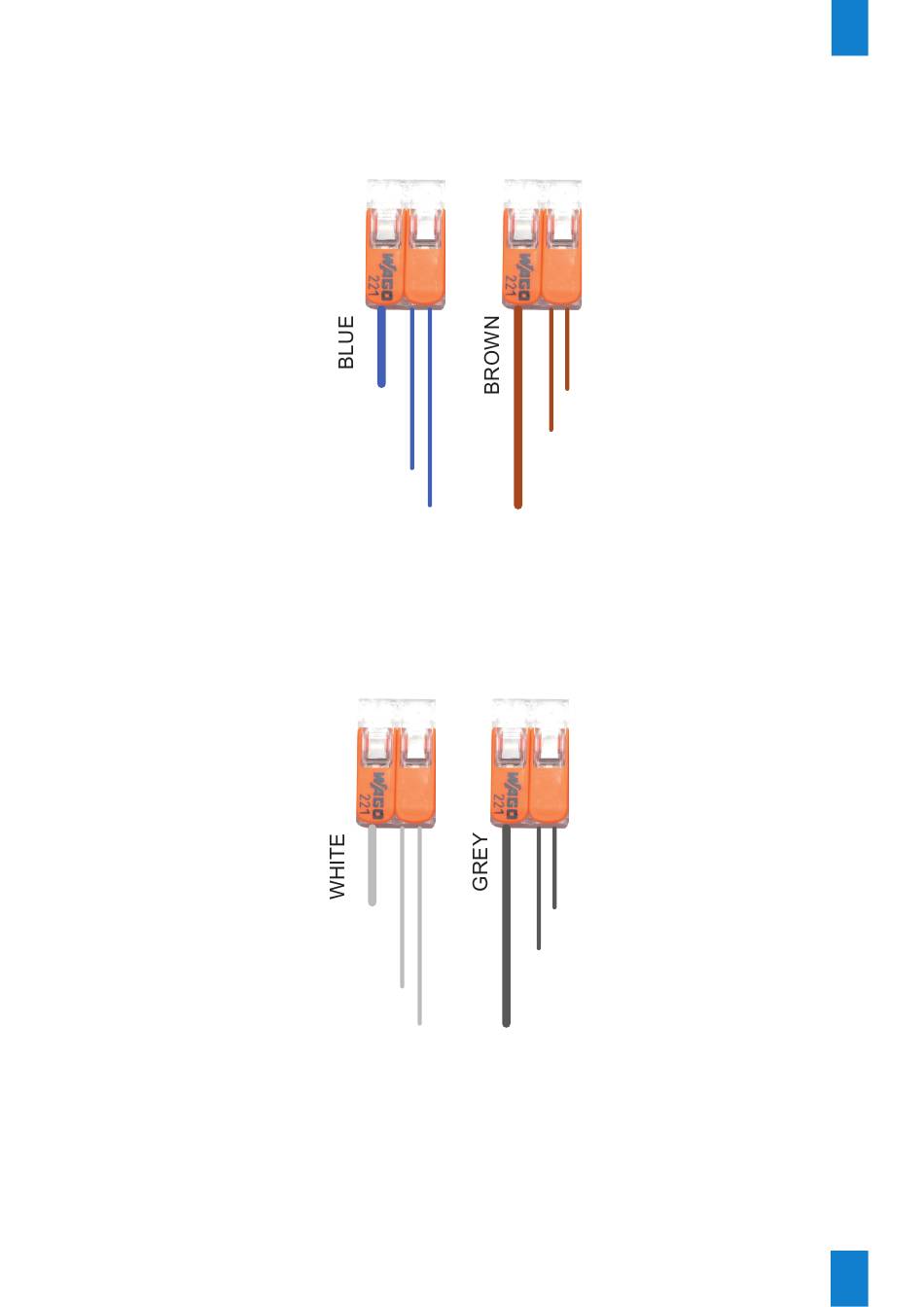

Use the blue and brown cable kits to connect the power to the electronic synchronisation cards
of both clocks.
Cable from main wire bundle
(client wiring)
(double sided only)
AFNOR and IMP synchronition signal
Use the white and grey cable kits to connect the synchronisation signal to the electronic
synchronisation cards of both clocks.
Cable from main wire bundle
(client wiring)
(double sided only)
All manuals and user guides at all-guides.com
To clock 1
To clock 2
To clock 1
To clock 2
To clock 1
To clock 2
(double sided only)
Cable from main wire bundle
(client wiring)
To clock 1
To clock 2
(double sided only)
Cable from main wire bundle
(client wiring)
