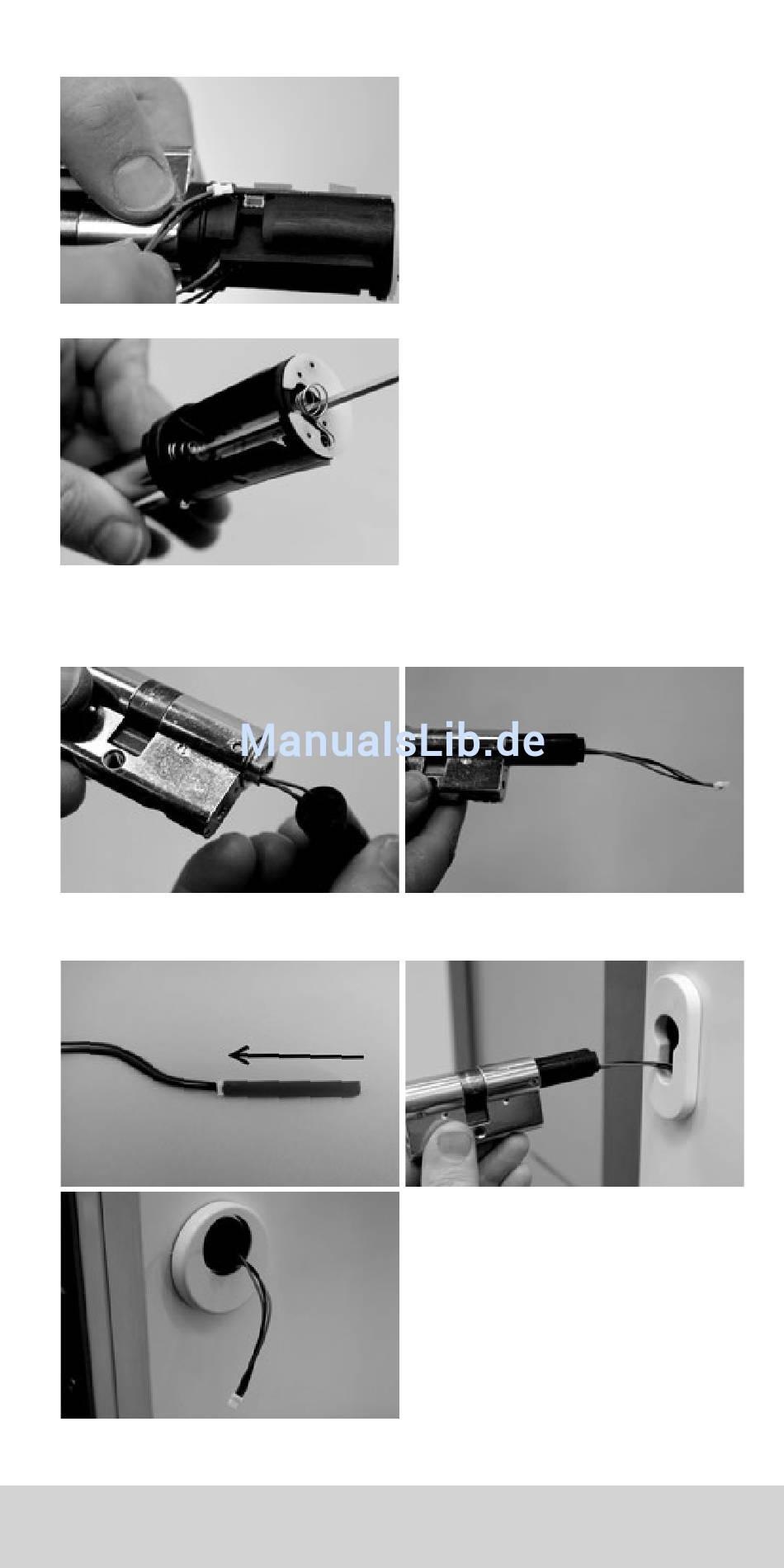

2 Carefully pull off the plug.
3 Remove the screw.
4 Pull the knob from the cylinder and slide the cable from the sleeve.
5 Choose the appropriate adapter for the outside and snap it on. Table 1
provides the required dimensions.
6 Slide the assembly aid on the plug and, together with the cylinder and the
adapter, slide it from inside into the mortise lock.
uaitgzigf
secuENTRY
Attention! Be careful not to
damage the circuit board or the
cable!
Attention! Do not pinch or
damage the cable!
English | 47
