Mounting for doors with thickness incl. fittings which are less
than 29mm per side and for which the cylinder can be moved from
outside to inside through the profile cylinder hole.

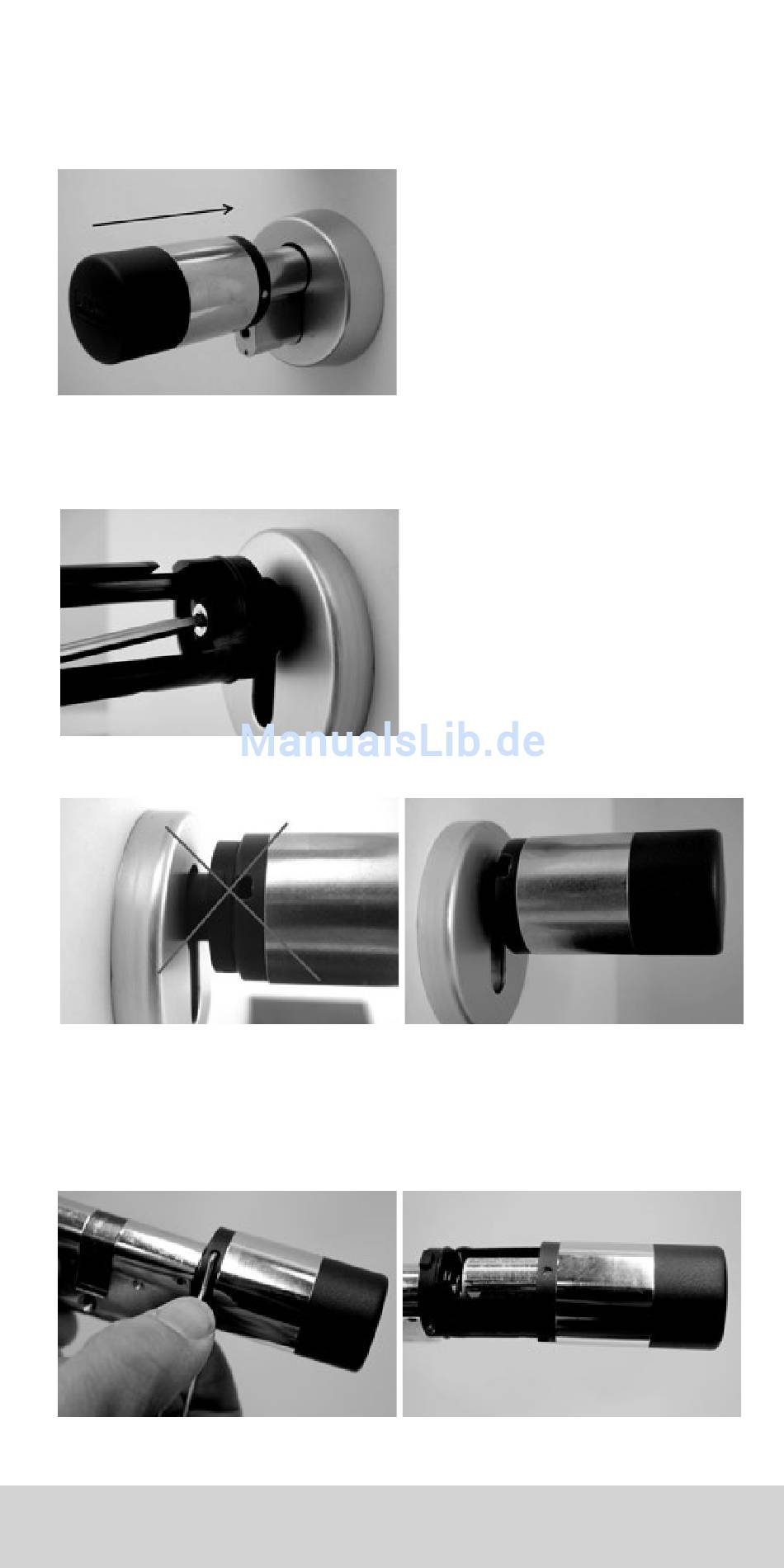

1 Slide the cylinder from outside to inside through the profile cylinder hole.
2 Fix the cylinder using the forend screw.
3 Put the inner knob on the cylinder or on the appropriate adapter and
fasten it with the corresponding screw. Table 1 provides the required
dimensions.
4 Push the sleeve on the inner knob and snap it in.
Mounting for doors which thickness incl. fittings exceeds 29mm
per side.
1 Use the disconnecting pliers to push the knob latches together and pull
the sleeve off.
46 | English
