DESCRIPTION OF THE DEVICE

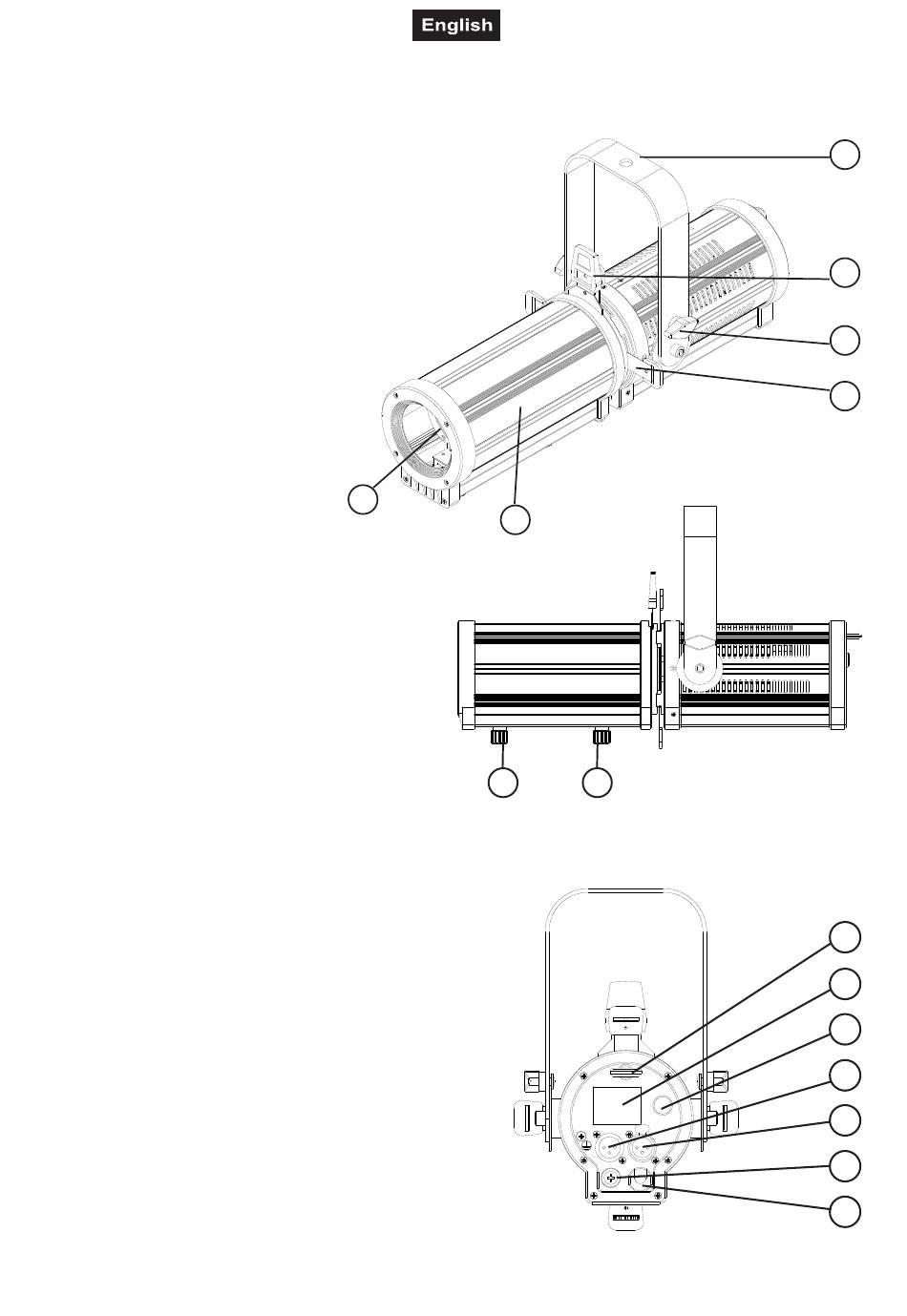

Device view describes article no. 40001721, LED PFE-60 WW/CW Profile Spot 9-25°.
(1) Mounting bracket
(2) Gobo holder
(3) Fixation screw
(4) Shutter blades
(5) Lens / LED
(6) Housing
(7) Manual zoom – Fixation screw
(8) Manual focus – Fixation screw
(9) Safety eyelet
(10) OLED display
(11) Encoder
(12) DMX in
(13) DMX out
(14) Fuse
(15) Power input
