Curve

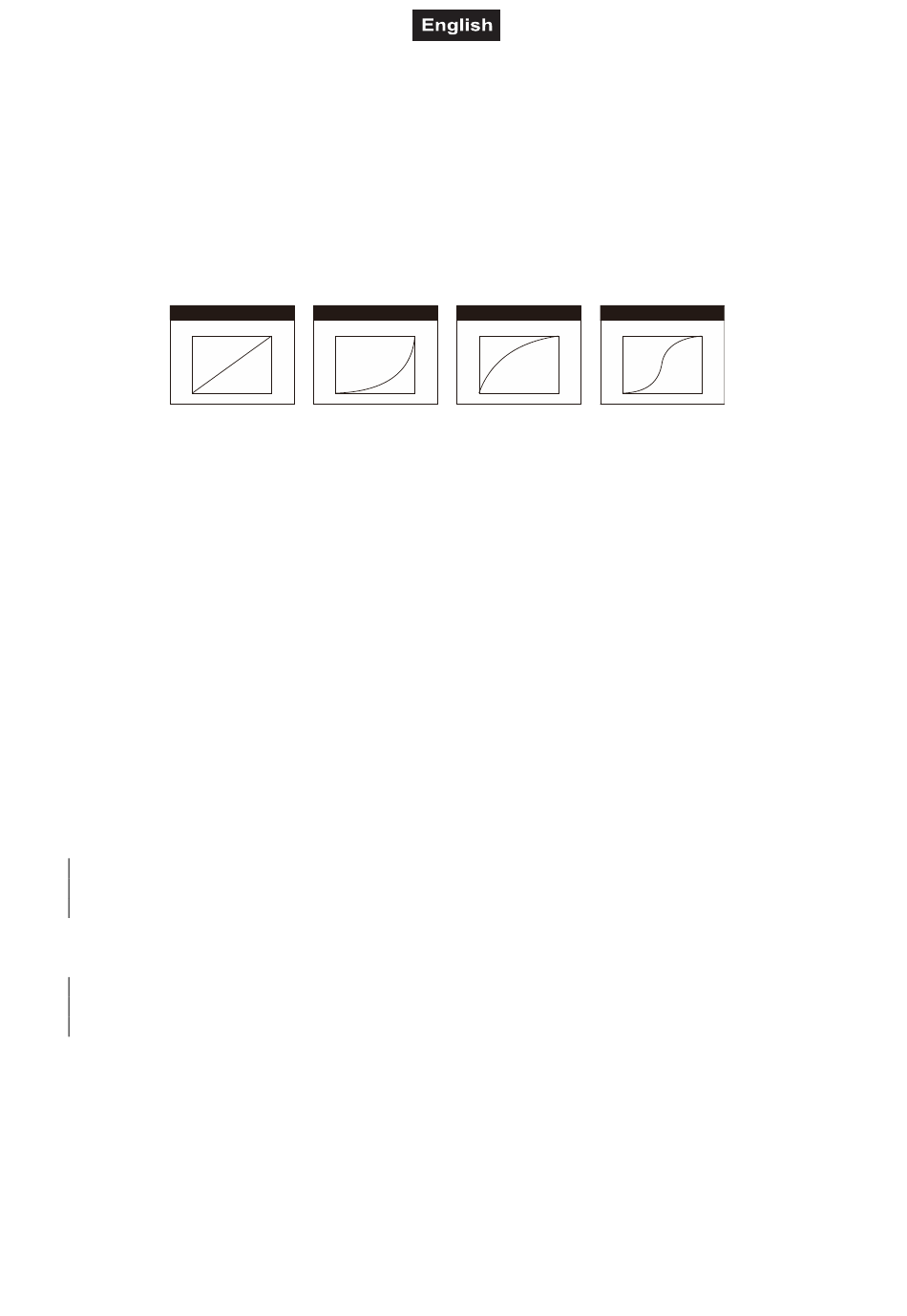

With this function, you can set various dimmer curves.
Press the encoder and then turn the encoder, until the function Curve appears in the display.
Linear: the increase in light intensity appears to be linear as DMX value is increased. Confirm by pressing
the encoder. Turning the encoder takes you to a further dimmer curve.
Exponential: light intensity control is finer at low levels and coarser at high levels. Confirm by pressing the
encoder. Turning the encoder takes you to a further dimmer curve.
Logarythmic: light intensity control is coarser at low levels and finer at high levels. Confirm by pressing the
encoder. Turning the encoder takes you to a further dimmer curve.
S-type: light intensity control is fine at low levels and high levels and coarser at medium levels. Confirm by
pressing the encoder.
Curve
Linear
Mode
This function is used to set the DMX channel mode.
Set the DMX start address A001 by turning the encoder.
Press the encoder and then turn the encoder until the default setting mode 1CH appears in the display. By
pressing the encoder, the desired mode is indicated in color. By turning the encoder, you can now also
select 2CH mode. Confirm by pressing the encoder.
PWM rate
With this function you can change the frequency of the pulse width modulation.
Press the encoder and then turn the encoder until the default setting of 1200 Hz is indicated in the display.
Confirm by pressing the encoder.
By turning the encoder you can now change the pulse width modulation from 800 Hz – 25000 Hz. Confirm by
pressing the encoder.
Focus adjustment manual
Step 1: Loosen the focus fixation screw on the underside of the device.
Step 2: Adjust the focus by sliding the lens-housing forward or backward.
Step 3: Tighten the focus fixation screw on the underside of the device.
Zoom adjustment manual
Step 1: Loosen the zoom fixation screw on the underside of the device.
Step 2: Adjust the zoom by sliding the lens-housing forward or backward.
Step 3: Tighten the zoom fixation screw on the underside of the device.
50C Curve 50C
Exponential
21/24
Curve 50C Curve
Logarythmic S-type
50C
