BOS R254K-UUI-LH12-S4
Photoelectric sensors
5
Primary device functions (continued)
5.3 Optical Frontend
5.3.1 Description
The Optical Frontend delivers the measurement value
determined by the sensor.
The evaluation in the switching profiles is effected based
on this measurement value (see Switching Profiles on
page 32).

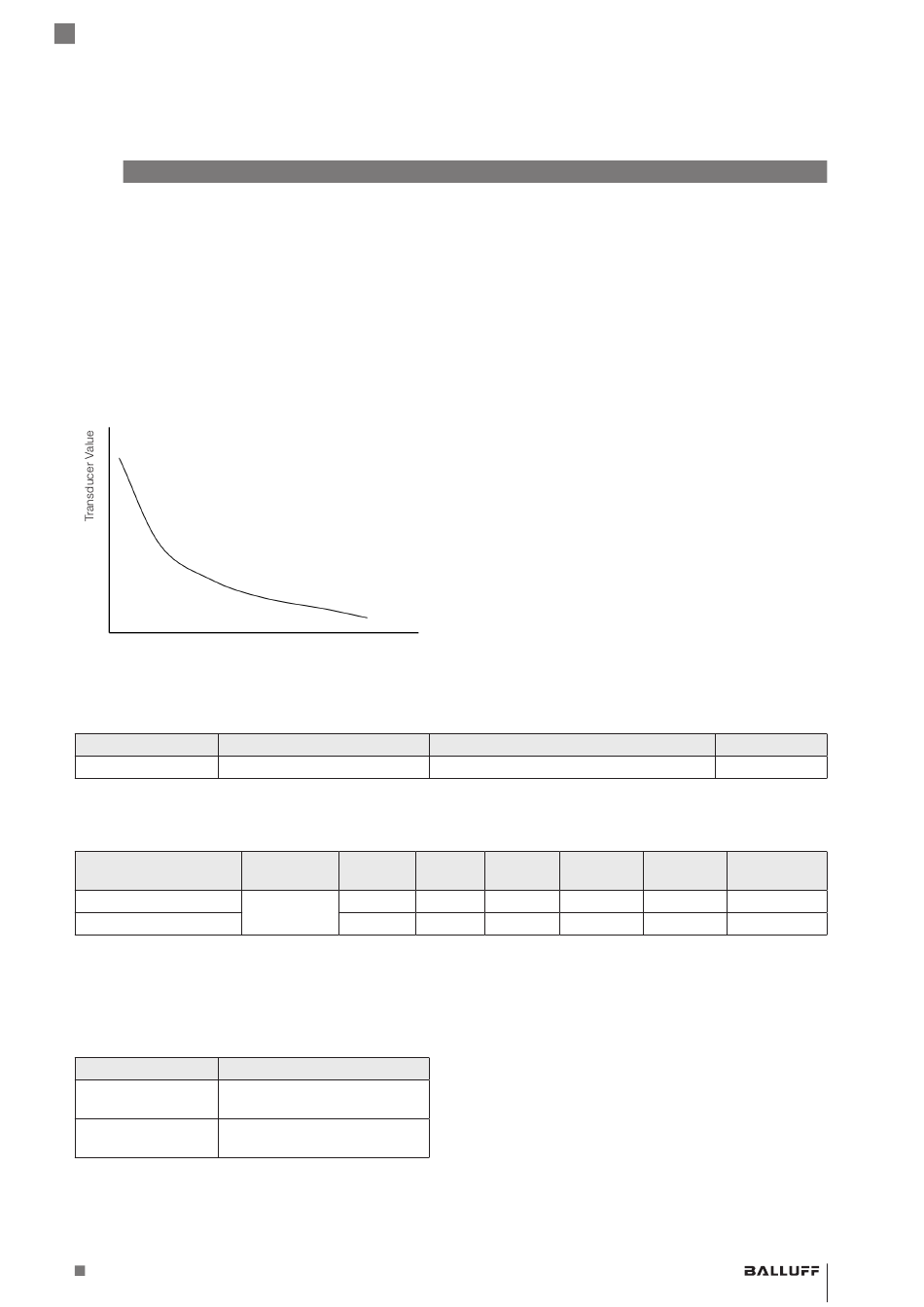

5.3.2 Mathematics/Algorithm
Distance
Fig. 5-1: Mathematics/Algorithm
5.3.3

Process data

Object ID Name
0xFFF7 (65527) Transducer Value
Tab. 5-4: Optical Frontend – Process Data
5.3.4 ISDU
Name
Optical frontend
Transducer Value
Tab. 5-5: Optical Frontend – ISDU
Transducer Value
Measured value determined by the sensor.
Value Description
0 (0x000) Measuring range, lower
measuring limit
4000 (0x0FA0) Measuring range, upper
measuring limit
Tab. 5-6: Transducer Value
www.balluff.com
Index Subindex
0x01B2 (434) 0
1
Description
Determined measurement value
Access Length Data Type
R 4 bytes
R 4 bytes INT32
Direction
Input
Data Default
Storage
No
