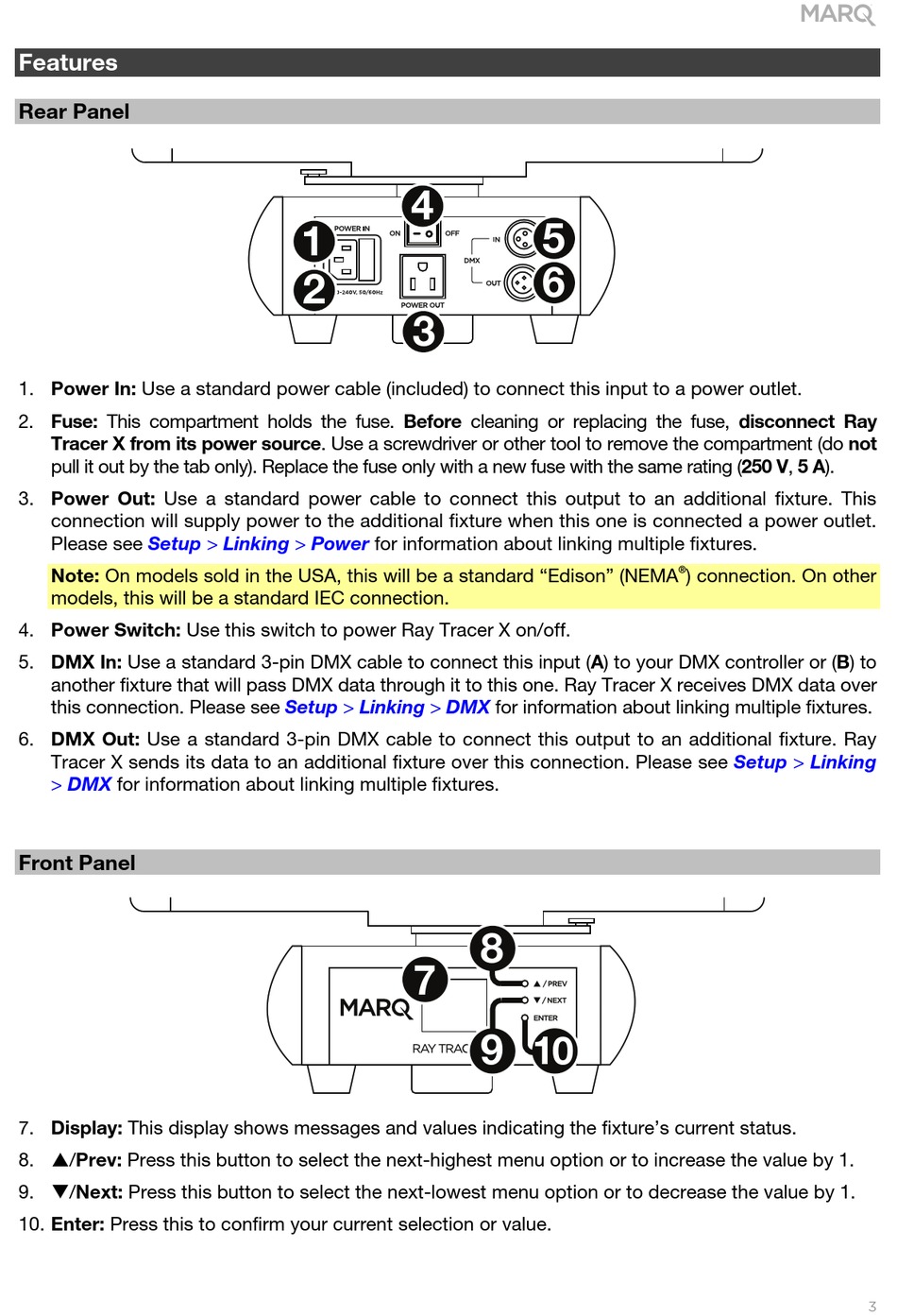

Features
Rear Panel
1. Power In: Use a standard power cable (included) to connect this input to a power outlet.
2. Fuse: This compartment holds the fuse. Before cleaning or replacing the fuse, disconnect Ray
Tracer X from its power source. Use a screwdriver or other tool to remove the compartment (do not
pull it out by the tab only). Replace the fuse only with a new fuse with the same rating (250 V, 5 A).
3. Power Out: Use a standard power cable to connect this output to an additional fixture. This
connection will supply power to the additional fixture when this one is connected a power outlet.
Please see Setup > Linking > Power
Note: On models sold in the USA, this will be a standard "Edison" (NEMA
models, this will be a standard IEC connection.
4. Power Switch: Use this switch to power Ray Tracer X on/off.
5. DMX In: Use a standard 3-pin DMX cable to connect this input (A) to your DMX controller or (B) to
another fixture that will pass DMX data through it to this one. Ray Tracer X receives DMX data over
this connection. Please see
6. DMX Out: Use a standard 3-pin DMX cable to connect this output to an additional fixture. Ray
Tracer X sends its data to an additional fixture over this connection. Please see
> DMX for information about linking multiple fixtures.
Front Panel
7. Display: This display shows messages and values indicating the fixture's current status.
8. /Prev: Press this button to select the next-highest menu option or to increase the value by 1.
9. /Next: Press this button to select the next-lowest menu option or to decrease the value by 1.
10. Enter: Press this to confirm your current selection or value.
4
1
2
3
for information about linking multiple fixtures.
Setup > Linking > DMX
7
5
6
for information about linking multiple fixtures.
8
9
10
®
) connection. On other
Setup > Linking
3
