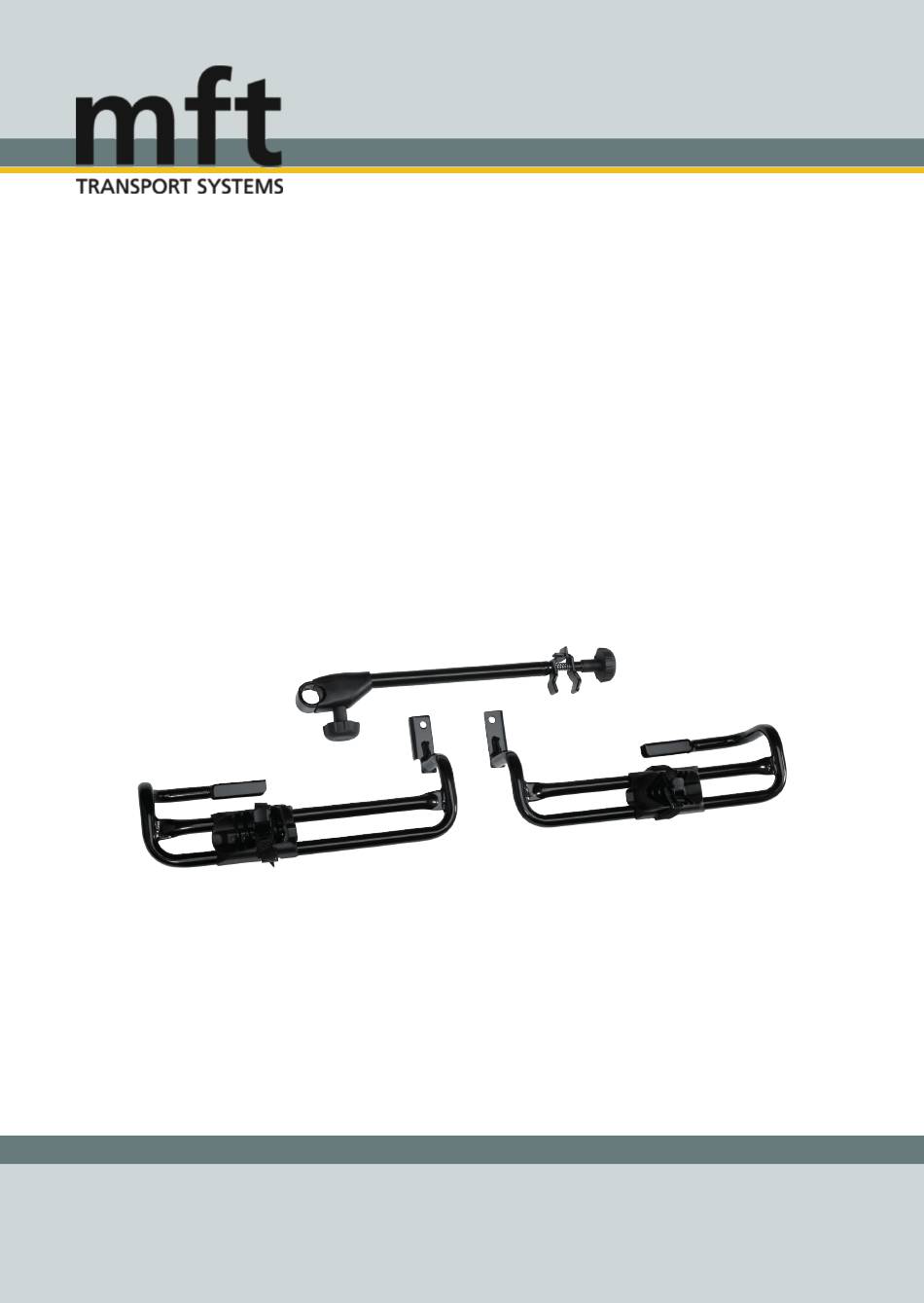

2 family Zubehör Accessory Erweiterung 3. Fahrrad Extension for a third bicycle...
Seite 2
Inhaltsverzeichnis / Contents Inhaltsverzeichnis / Contents Lieferumfang Scope of supply 2 - 3 Technische Daten Technical data Sicherheitshinweise Safety instructions 4 - 5 Montage dritter Haltearm Mounting the third frame holder 6 - 7 Montage Haltestange Mounting the upright bar 8 - 9 Radschienen montieren Mounting the wheel rails...
Seite 3
1360 mm Höhe: 900 mm Height: 900 mm Gewicht des multi-cargo 2 family: 18 kg* Weight of the mulit-cargo 2 family: 18 kg* Maximale Ladung des mulit-cargo 2 family: Maximum load of the mulit-cargo 2 family: 82 kg 82 kg (Stützlast der Anhängekupplung beachten!)
Seite 4
Teile und Zubehör zu ver- accessory products that habe been tested and wenden, die von mft auf Sicherheit, Funktion Beachten Sie, dass alle Schlösser des Fahr- Ensure that all locks on the bicycle carrier and approved.
Seite 5
Montage Fahrradhaltearm / Mounting the frame holder Montage Fahrradhaltearm / Mounting the frame holder Information! Information! Ist der Fahrradträger bereits komplett montiert, If the bike carrier is already completely Schlossschraube muss die Haltestange demontiert werden. assembled, the upright bar must be taken off. Carriage bolt Otherwise mount the third frame holder onto Andernfalls den 3.
Seite 6
Montage Haltestange / Mounting the upright bar Montage Haltestange / Mounting the upright bar Information Information Verbindungsstopfen Haltestange connecting plugs Die Knaufe der Haltearme müssen alle in die The knobs of all frame holders must point to upright bar selbe Richtung zeigen. the same direction.
Seite 7
Radschienen montieren / Mounting the wheel rails Radschienen montieren / Mounting the wheel rails Radschienen montieren Mounting the wheel rails 1. Die Schraube (1) herausdrehen. 1. Remove the screw (1). 2. Die Schraube (2) wenige Umdrehungen 2. Unscrew by few rotations the screw (2) lösen und den Tragerahmen etwas anheben.
