Manual

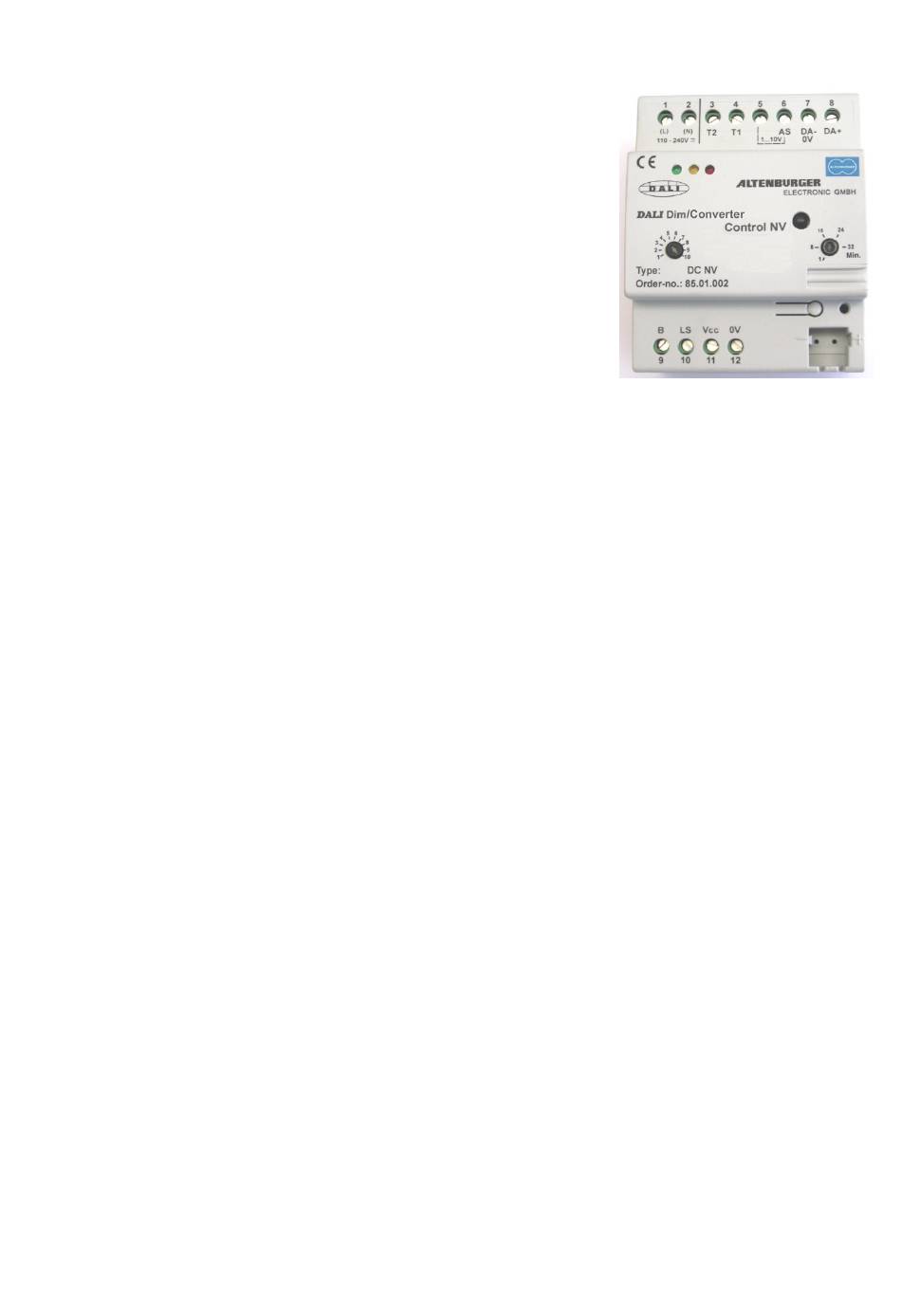

DALI Dim/Converter Control NV
Type : DC NV
Order-No. : 85.01.002
Application
The DALI Dim/Converter Control is suitable for the lighting control of a
max. of 100 DALI-ballasts or DALI-converters. Immediately after a
connection the DALI Dim/Converter control is ready for operation. An
additional setting into operation or group assignment is not required. All DALI components are commonly directly
controlled. The dim-control includes already the power supply for the interfaces of the 100 DALI-modules and
offers the following possibilities:
Analog control: via analog voltage 1 ...10V (0..10V) to DALI
•
1-pushbutton or 2-pushbutton switch-dim-functions
•
combination with multi-sensor-controls (daylight dependent constant light control and motion
•
detection)
The connection of external panels to the 2 pushbutton inputs [T1/T2] and / or to the analog control input [AS]
makes applications as the control of DALI-components with an analog voltage 1...10V (0...10V), as well as 1-
pushbutton or 2-pushbutton switch dim-functions possible. In combination with Multi-Sensors daylight
dependent- and motion controls can be performed. The switch ON or set value can be stored with a pushbutton
or with an analog voltage control being identical with the voltage at an analog control input.
The DALI Dim/Converter Control is an independent controller for DALI-lighting controls. It opens as well
possibilities to combine DALI systems with existing lighting control modules or with just a potentiometer.
Conventional lighting controls requiring an analog supply thus easily can be connected to DALI-ballasts.
To the DALI Dim/Converter Control up to 6 Multi-Sensors can be connected. They automatically are identified.
The DALI Dim/Converter Control in this case operates in dependence of daylight and presence detection.
The delay time after presence detection can be adjusted between 1 and 32 min. at the dimmer module with a
trimmer potentiometer. If no motion any longer is recognized the dimmer reduces the lighting after the set delay
time to 1 – 2 % of maximum and finally switches OFF after 10 min.
In case of a daylight portion above the set light level the multi-sensors are reducing the artificial light to a
minimum. If the daylight continuously exceeds the set light level lighting switches OFF after 10 min. If the
daylight falls below the set light level, depending on the multi-switch position the light automatic switches ON.
A manual switch ON function however is possible with a pushbutton, a switch contact or an analog control
input at any time, also if the daylight exceeds the set light level to be kept constant. At operation only with light
senor(s) in the multi-switch positions 5/6 there is no automatic switch on.
