Kicker KMTC9 Benutzerhandbuch Seite 3

Bar Diameter
1-1/2" to <1-3/4"
1-3/4" to 2-1/4"
<2-1/4" to <2-7/8"
2-7/8" to <3"
3" to 3-1/8"
Figure 2

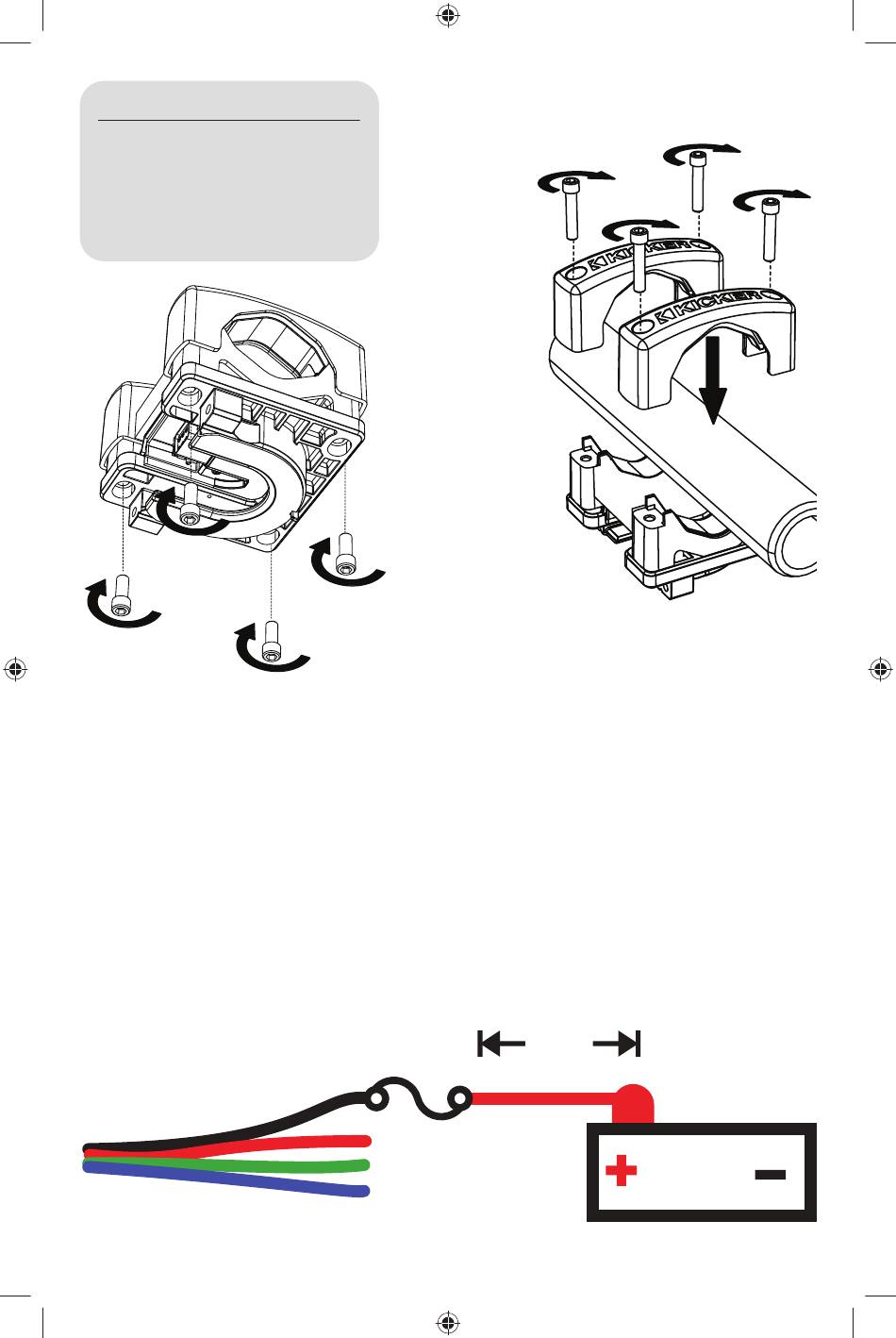

Step 2: Connect the speaker and tweeter wires to your source unit or amplifi er. KICKER recommends you
solder the connections and secure them with heat shrink. It is also strongly recommended that you use a
full-range amplifi er signal. A high-pass crossover set from 30Hz–50Hz should be used, and can be set to
70Hz for music with heavy bass.
When hard-wiring the RGB lighting, the black lead is +12V and the red, green, and blue leads are ground.
Splice and combine the ground wires to yield a different color. There are seven colors available, depending
on your wiring confi guration. KICKER recommends using the KMLC lighting controller (sold separately) for
more colors, patterns, and special effects.
Black : +12V
Transparent Blue : Speaker +
Copper : Horn Tweeter +
LED Wiring
Bolt Length
1-1/8"
1-1/2"
2"
2-1/2"
3"
upper mounting
bracket
Red : Ground
2A fuse
(max)
+12V
}
Ground
stainless steel socket-head cap screws
(1/4" Allen wrench – 5/16"-18 threads)
Green : Ground
Transparent Gray : Speaker –
Silver : Horn Tweeter –
≤7"
(17.5cm)
battery
Figure 1
lower mounting
bracket
Blue : Ground
12V
3
