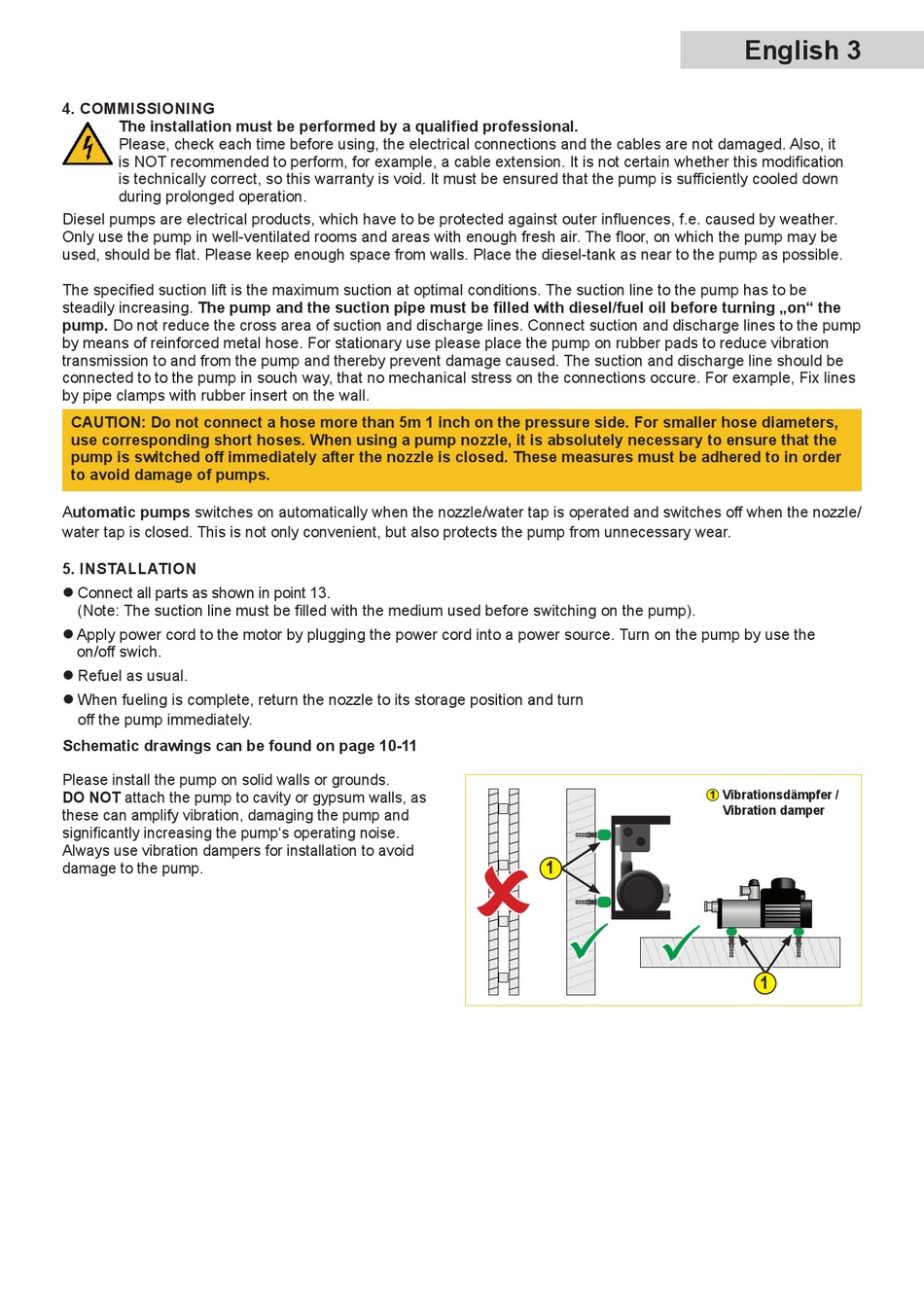

4. COMMISSIONING
The installation must be performed by a qualified professional.
Please, check each time before using, the electrical connections and the cables are not damaged. Also, it
is NOT recommended to perform, for example, a cable extension. It is not certain whether this modification
is technically correct, so this warranty is void. It must be ensured that the pump is sufficiently cooled down
during prolonged operation.
Diesel pumps are electrical products, which have to be protected against outer influences, f.e. caused by weather.
Only use the pump in well-ventilated rooms and areas with enough fresh air. The floor, on which the pump may be
used, should be flat. Please keep enough space from walls. Place the diesel-tank as near to the pump as possible.
The specified suction lift is the maximum suction at optimal conditions. The suction line to the pump has to be
steadily increasing. The pump and the suction pipe must be filled with diesel/fuel oil before turning „on" the
pump. Do not reduce the cross area of suction and discharge lines. Connect suction and discharge lines to the pump
by means of reinforced metal hose. For stationary use please place the pump on rubber pads to reduce vibration
transmission to and from the pump and thereby prevent damage caused. The suction and discharge line should be
connected to to the pump in souch way, that no mechanical stress on the connections occure. For example, Fix lines
by pipe clamps with rubber insert on the wall.
CAUTION: Do not connect a hose more than 5m 1 inch on the pressure side. For smaller hose diameters,
use corresponding short hoses. When using a pump nozzle, it is absolutely necessary to ensure that the
pump is switched off immediately after the nozzle is closed. These measures must be adhered to in order
to avoid damage of pumps.
Automatic pumps switches on automatically when the nozzle/water tap is operated and switches off when the nozzle/
water tap is closed. This is not only convenient, but also protects the pump from unnecessary wear.
5. INSTALLATION
l Connect all parts as shown in point 13.
(Note: The suction line must be filled with the medium used before switching on the pump).
l Apply power cord to the motor by plugging the power cord into a power source. Turn on the pump by use the
on/off swich.
l Refuel as usual.
l When fueling is complete, return the nozzle to its storage position and turn
off the pump immediately.
Schematic drawings can be found on page 10-11
Please install the pump on solid walls or grounds.
DO NOT attach the pump to cavity or gypsum walls, as
these can amplify vibration, damaging the pump and
significantly increasing the pump's operating noise.
Always use vibration dampers for installation to avoid
damage to the pump.
1
English 3
Vibrationsdämpfer /
Vibration damper
1
