Installation
The panel is supplied separately in a cardbox and fixed to a wall with mounting
brackets The panel can be installed on the wall lengthwise or widthwise; mount-
.

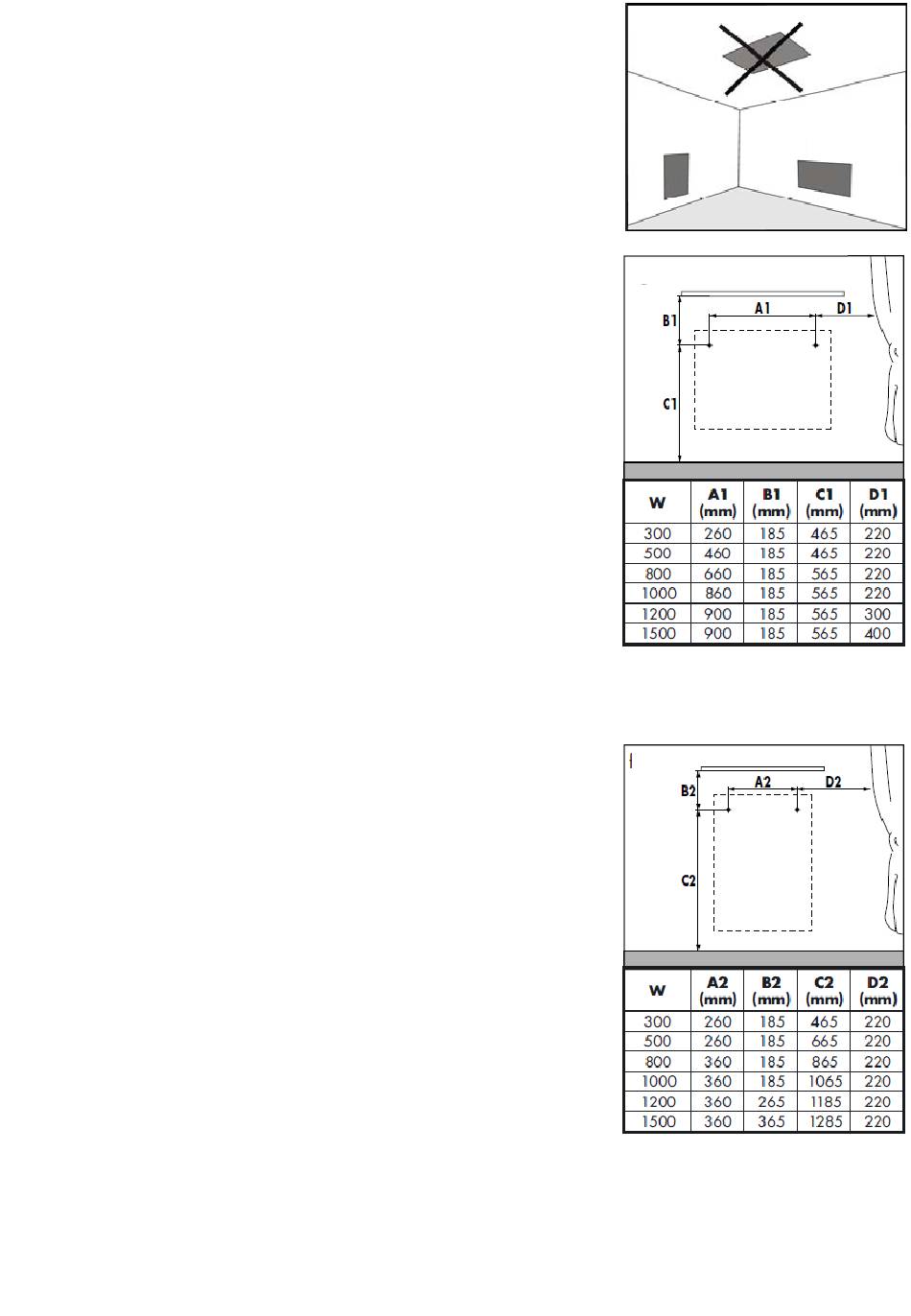

ing the panel on the ceiling is forbidden (fig. 4). Drill the holes for the mounting
brackets according to fig. 5 (lengthwise panel installation) or fig. 6 (widthwise
installation).
Dimensions A are distances between the drilled holes and dimensions B, C and D
are minimum distances of the holes from surrounding objects.
Fasten the brackets with screws into dowels (not included). The dowels should be
selected in respect of a wall material type and higher weight of panel. Hang the
panel on the mounting brackets with two upper screws (according to suspension)
and fasten firmly to the brackets with nuts with washer. For horizontal suspensi-
on, nuts are screwed on two screws of the panel.
Besides the mounting brackets, the panel includes adjustment rests fastened to
the lower screws of the panel and adjusting the distance between the panel and
the wall and the mounting bracket cover. Fig. 3 shows a side view of the panel
suspended on the wall.

Electric Installation

The panel is equipped with a two-core cable.
Power supply — 1/N 230 V / 50 Hz
Colour indication of wires:
brown
Phase —
Central (working) conductor —
The cable can be fitted with a plug (export markets), removal of the plug
and shortening of the supply lead will not result in loss of warranty
The power supply cable is connected to the wall junction box, see Fig. 3. If power
supply cable is damaged, then it may only be replaced by manufacturer or its
service technician or similarly
qualified person in order to prevent dangerous situation.

Panel Control

The panel control by external room thermostat equipped with a switch is recom-
mended.
The room thermostat maintains set air temperature in a room.
Moreover, the panel is equipped with a limiting thermostat which regulates the
panel surface temperature not to exceed 110 °C.
11
,
blue
.
fig. 4
fig. 5
fig. 6
.
