Operation

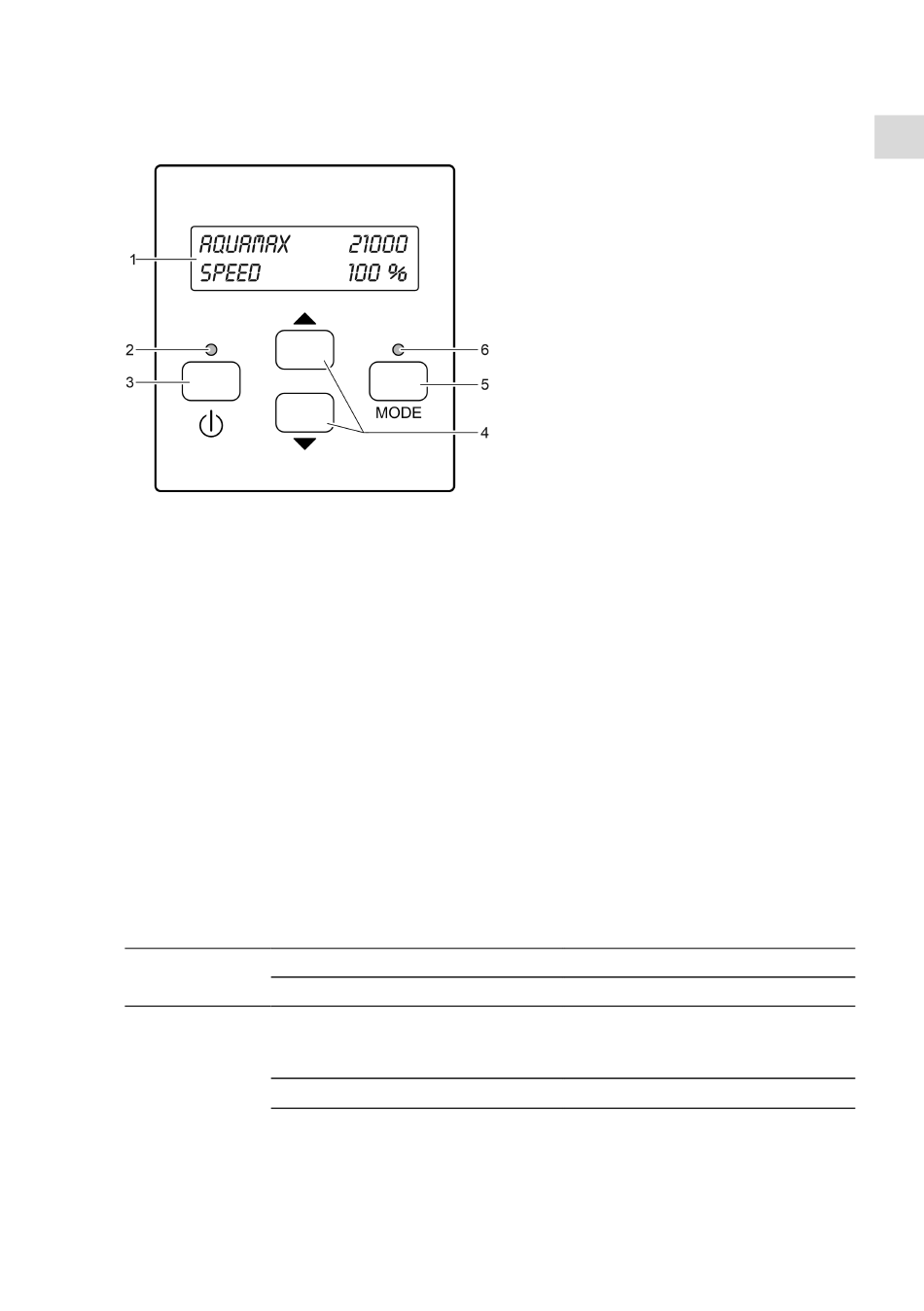

Control system overview

Description
1 Two-line display with backlighting
2 LED ON/OFF
3 ON/OFF button
4 Arrow keys
5 Mode button
6 LED MODE

Status displays

The LEDs signal the following statuses:
LED
LED ON/OFF
LED MODE
Function
Indicates whether the pump is switched on or off.
For switching the pump on or off.
For changing values in the menus or selecting other lines
in the menu.
For selecting the next menu in the display.
The selection is continuous. It continues from the last
menu to the first menu.
Indicates the pump status.
Status
Green
Off
Green
Red flashing
Off
Description
The pump is switched on.
The pump is switched off.
Seasonal Function Control (SFC) and/or
Dynamic Function Control (DFC) is acti-
vated
Malfunction (→ Error messages)
SFC and/or DFC is deactovated
