Dauerbetrieb:
Pause von ca. 11 Sekunden zwischen Programmenden und automatischem Programmstart.
Achtung !
Dauerbetrieb mit 16 V Wechselspannung kann zur thermischen Überlastung des Gerätes führen.
Das Modell darf dann nicht länger als 10 Min. mit 5 Min. Unterbrechung im Dauerbetrieb betrieben werden.
Dauerbetrieb mit 12....16 V Gleichspannung ist unproblematisch.
Einzelbetrieb:
Neustart nach Programmablauf ist erst wieder nach ca. 11 Sekunden möglich.
Programmdauer ca. 42 Sekunden (6 Auf- und 6 Abfahrten).
Programmablauf:
Allgemein:
jede Fahrt nach oben endet am oberen Reedkontakt.
Grüne LED leuchtet, wenn Motor in Aktion ist.

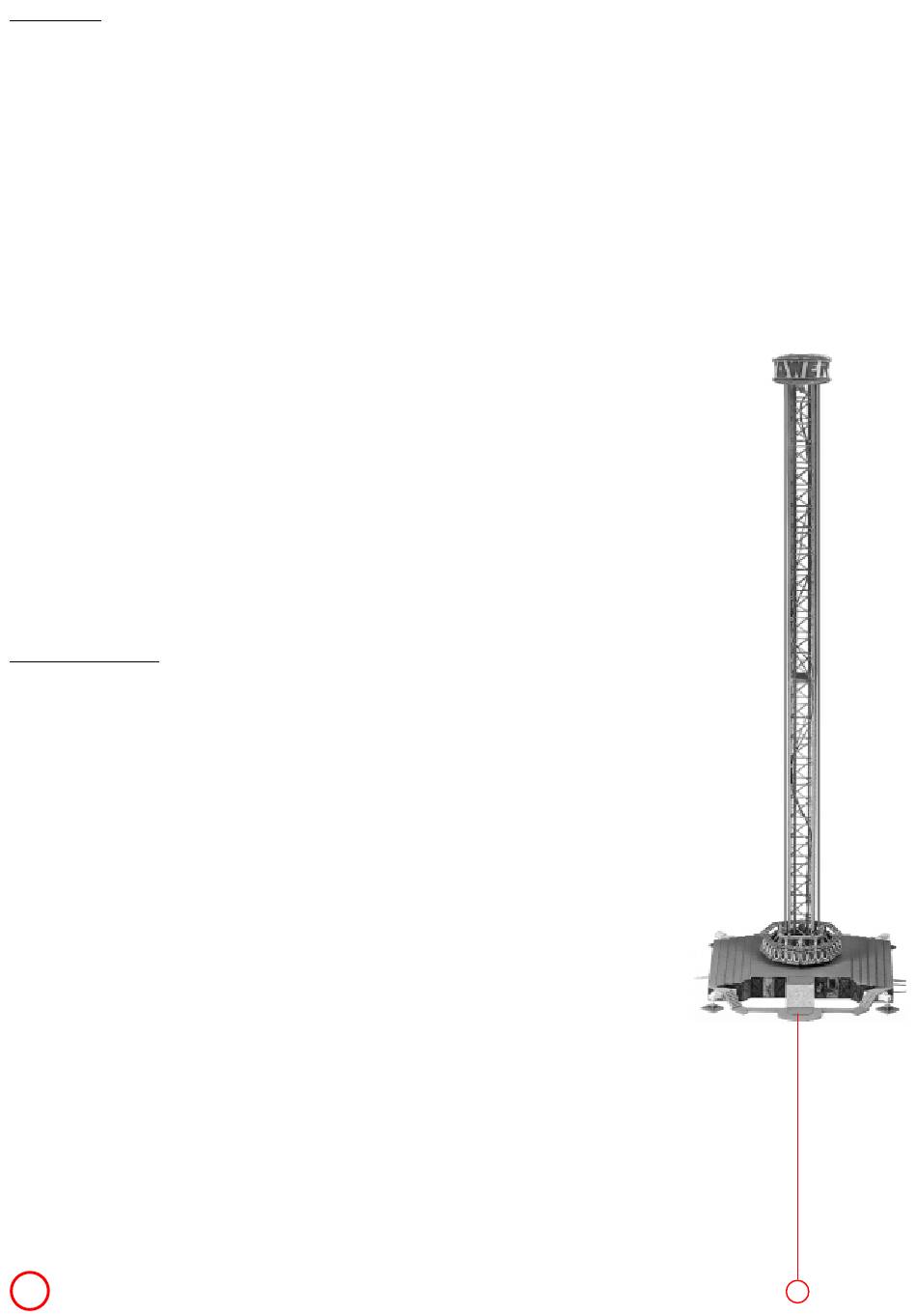

-1. Fahrt nach oben: Gondel fährt auf den oberen Reedkontakt
-2.... 6. Fahrt nach oben und unten bewegen sich zwischen den Reedkontakten
-6. Fahrt nach unten: Gondel fährt auf unteren Reedkontakt und bleibt bis zum
Neustart des Programmes stehen
Ist das nicht der
Fall, müssen die Verkabelung, Reedkontakt und Magnet überprüft werden.
Mögliche Ursachen:
Gondel hält nicht am oberen Reedkontakt
Gondel hält nicht am unteren Reedkontakt
Continuous operation:
There is a break of approx. 11 seconds between end of program and automatic program start.
Attention !
Continuous operation at 16 VAC may result in thermal overloading of the unit.
Never operate the model longer than 10 minutes – with an interruption of 5 minutes – in the conti-
nuous operation mode. Continuous operation at 12 ... 16 VDC is unproblematic.
Individual operation:
Re-start after expiry of program run will not be possible until after approx. 11 seconds.
Program duration approx. 42 seconds (six ascents and six descents).
Program run:
General:
Every ascent will end at the top reed contact.
Green LED will light, if motor is in action.
- 1. Ascent: Car will move to top reed contact
- 2. ... 6. Ascent and descent take place between reed contacts.
- 6. Descent: Car will move to bottom reed contact and remains there up
to the re-start of the program.
If this is not the
case, the wiring, the reed contacts and the magnet must be examined.
Possible causes:
Car fails to stop at Top reed contact
Car fails to stop at bottom reed contact
V
Fehler:
-Reedkontakt nicht angeschlossen; oder
-Reedkontakt defekt; oder
-Reedkontakt oben und unten sind vertauscht; oder
-Rundmagnet fehlt.
-Reedkontakt nicht angeschlossen; oder
-Reedkontakt defekt; oder
-Reedkontakt muß so justiert werden, daß die
rechtwinklig abgebogenen Anschlußdrähte
nach oben zum Turmende zeigen.
Fault:
- Reed contact not connected or
- Reed contact defective or
- Reed contacts top and bottom interchanged or
- Round magnet missing;
- Reed contact not closed or
- Reed contact defective or
- Reed contact must be adjusted in such a way that
the connecting wires bent at right angles point upwards
to the tower end;
LED geht aus
LED an / aus
LED geht aus
LED goes out;
LED On / Off
LED goes out
13
