TEPPER MOTOR MOUNTING
For particularly simple and convenient use, the stepper motor can be placed directly on the board
of your Joy-Pi Advanced via a holder included in the scope of delivery. This allows the stepper
motor to be equipped with the included perforated disk and combined with the light barrier.
To mount the stepper motor on your Joy-Pi Advanced it is first necessary to install it into the stepper
motor holder. For this you need the two black acrylic frames, 2 spacers, 4 washers and 4 screws
from the accessory set of your Joy-Pi Advanced.
17

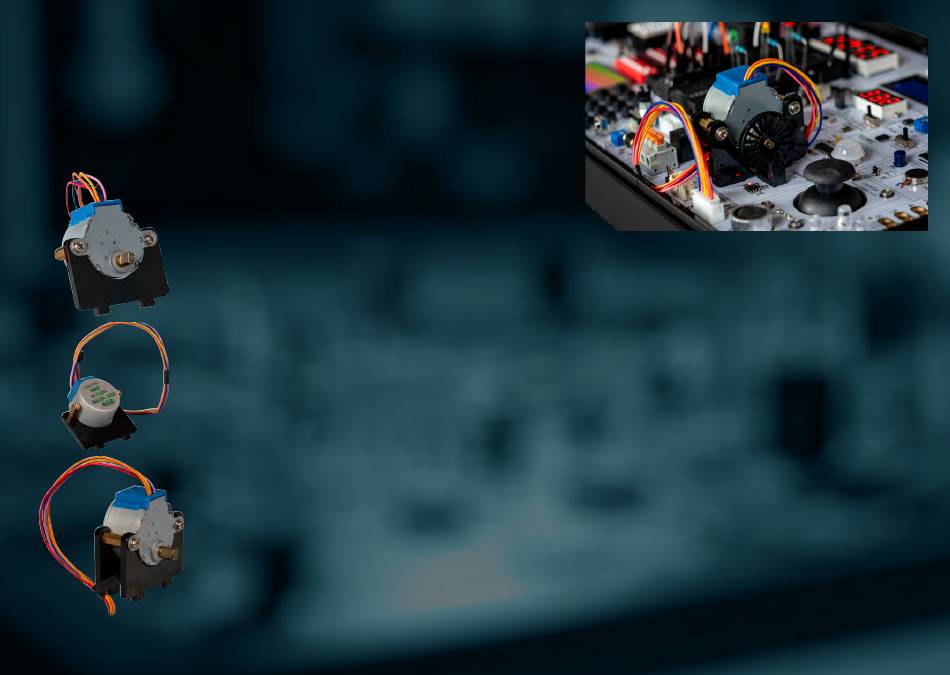

First, place the first, black acrylic frame on
your stepper motor and insert the two screws
with the two washers through the holes.
Screw them together with the two spacers.
Screw the second, black acrylic frame from the
other side with the two screws and washers.
Your stepper motor can now be plugged into
the receptacle on your Joy-Pi Advanced.
