5. U
SING THE ADAPTER BOARDS

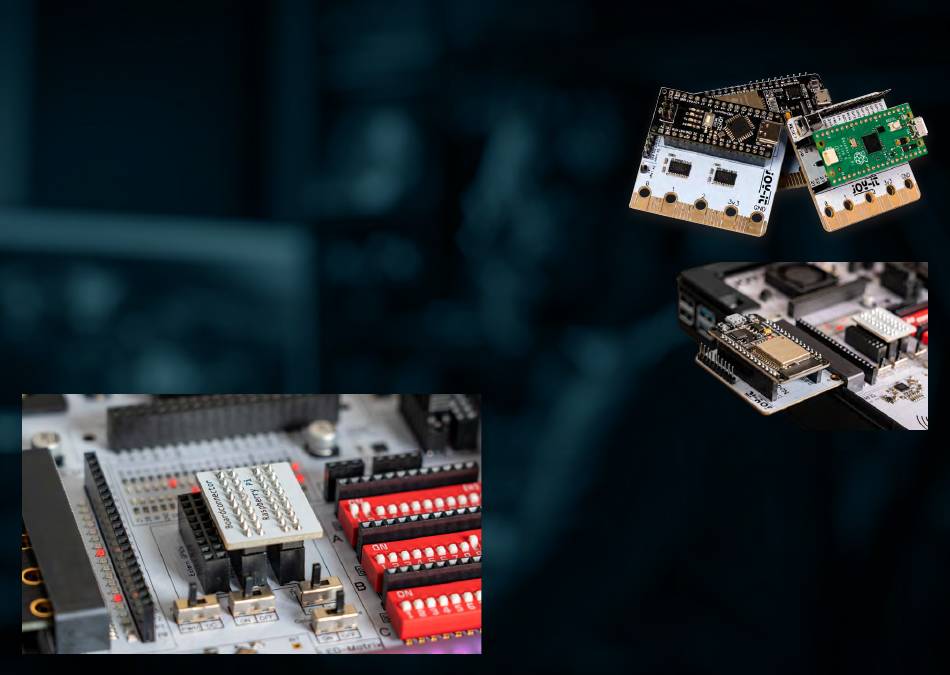

By combining our innovative adapter boards and the Micro:Bit slot, we achieve seamless compatibility with
a wide range of microcontrollers such as Raspberry Pi Pico, NodeMCU ESP32, Micro:Bit and Arduino Nano.
The specially designed adapter boards are designed to perfectly match the respective microcontroller. By
plugging the microcontroller onto the appropriate adapter board and then plugging it into the Micro:Bit
slot, the Joy-Pi Advanced quickly and easily becomes compatible with the different microcontrollers.
This allows a seamless integration of your preferred platform and the possibility to combine the strengths of
the different microcontrollers in your projects.
To use one of the adapter boards, your preferred microcontroller can simply be plugged onto the matching
adapter board. The adapter board is then plugged into the Micro:Bit connector on the Joy-Pi Advanced.
Important to note are also the two board connectors. Do you want to use the Joy-Pi Advanced with your
Raspberry Pi? Then plug the Raspberry Pi board connector onto the Joy-Pi Advanced. If you want to use
one of the adapter boards in combination with a microcontroller? Then simply use the connector labeled
„Boardconnector Extern" instead.
