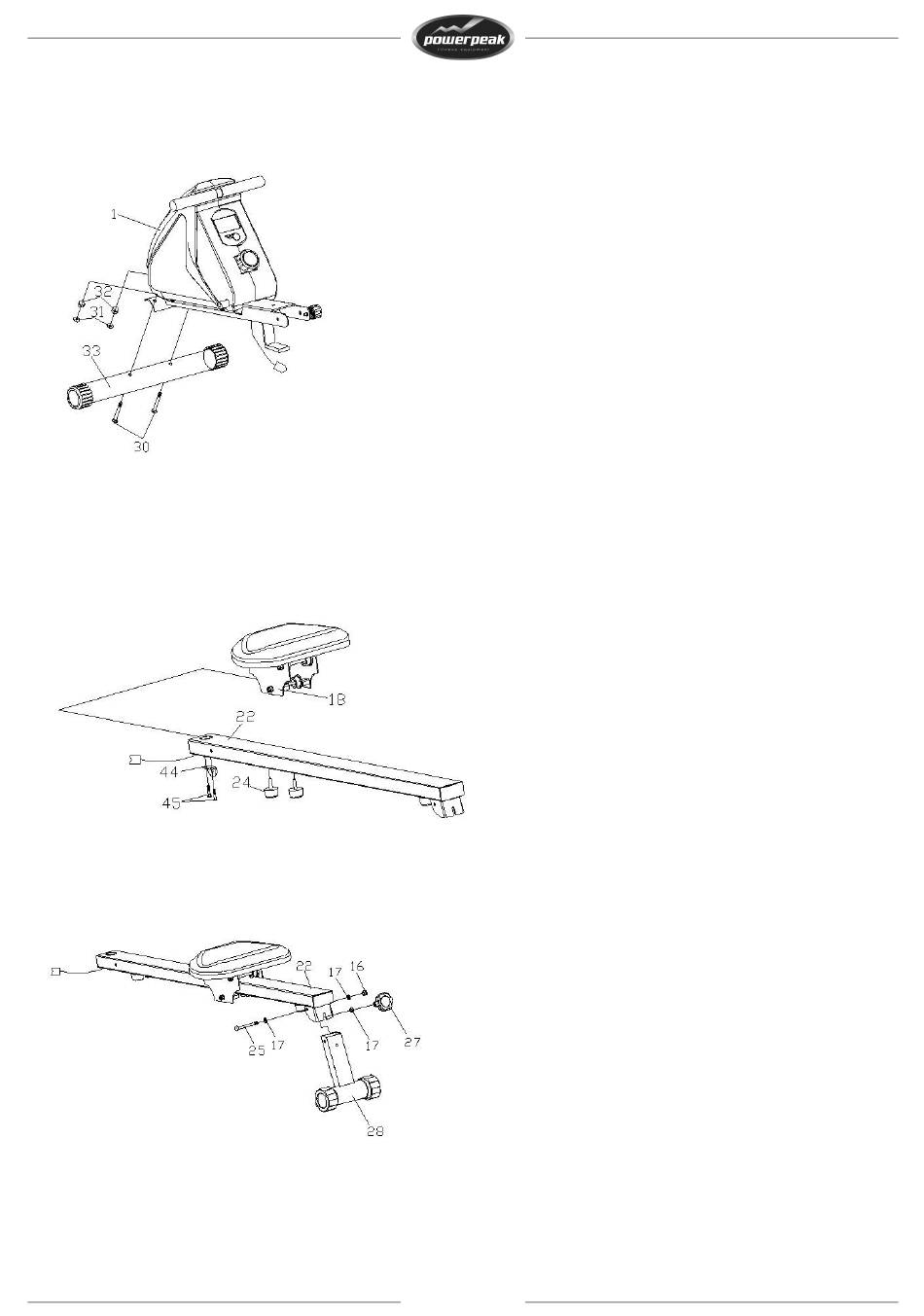

Step 1:
Attach the front stabilizer (33) to the main frame (1) with two bolts (30), two curved washers (31) and
two cap nuts (32).
Step 2:
Remove the front two knobs (24) and two screws (45) from the rail. Attach the seat support (18) to the
rail (22). Attach the front two knobs (24) to the rail (22).
Attach the connection plate (44) to the rail (22) with the two screws (45).
Note: please make sure the cable does not get trapped.
Step 3:
Attach the rear stabilizer (28) to the rail (22) with the hex bolt (25), washer (17), knob (27) and nylon nut
(16).
