5.2. Setting the Output Current
1.
Turn on the power supply
2.
Refer to Section 5.1 step 1 – 4 to give the voltage around 2-5V.
3.

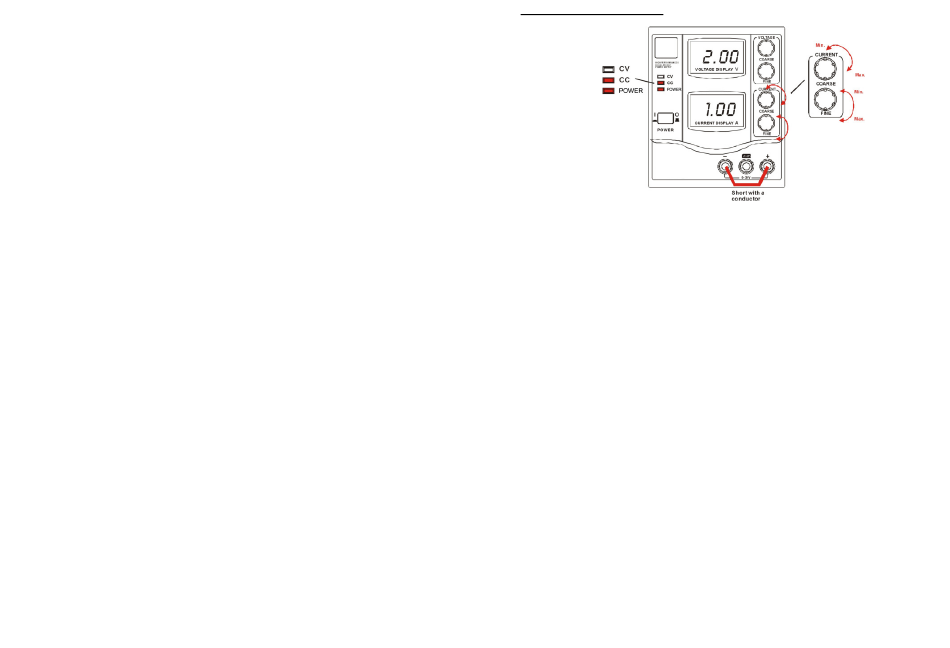

Turn the CURRENT COARSE TUNE KNOB [9] and CURRENT FINE TUNE KNOB [10]
anticlockwise reach the minimum current value.
4.
Short the + and the – MAIN TERMINAL [11, 13] with a conductor.
5.
Adjust the CURRENT KNOB [9, 10] to give a desired output current.
6.
Then the CC INDICATOR [3] will off and the CV INDICATOR [4] will on.
7.
Remove the conductor from the MAIN TERMINAL [11, 13].
8.
Set to the desired voltage.
9.
Connect the circuit to the MAIN TERMINAL [11, 13].
Caution:
*
Ensure the current is set to zero before short the MAIN TERMINAL [11, 13]. Otherwise it will
damage the power supply.
*
Do not short the MAIN TERMINAL [11, 13] over 1 minute; it will damage the power supply.
-16-
