TL 25 WT Setting tool VERSION TRADUITE Cette notice s’applique à l'outil TL 25 WT Setting tool dont les déclinaisons sont disponibles au catalogue en vigueur. SOMMAIRE 1. Informations préalables 3. Utilisation et maintenance 1.1. Domaine d’application 3.1. Touches Montée et Descente 1.2.
Seite 4
1. INFORMATIONS PRÉALABLES 1.1. DOMAINE D’APPLICATION Le TL 25 WT Setting tool est un outil spécialement dédié au réglages de stores d’intérieur vénitiens uniquement équipés d‘une motorisation de type filaire TLW 25 WT Somfy. En cas de doute, consulter un interlocuteur Somfy.
Seite 8
à la prise murale. Si le produit motorisé ou le TL 25 WT Setting tool ne fonctionne toujours pas, contacter un professionnel de la motorisation et de l’automatisation de l’habitat. 2.4.2. Retour en configuration d'origine Appuyer sur la touche RESET pendant environ sept secondes jusqu’aux deux va-et-vient du...
Seite 11
TL 25 WT Setting tool Par la présente SOMFY ACTIVITES SA déclare que le produit est conforme aux exigences essentielles et aux autres dispositions pertinentes des directives européennes applicables pour l’Union européenne. Une déclaration de conformité est mise à disposition sur www.somfy.com/ce.
Seite 13
1. VORBEMERKUNGEN 1.1. BESTIMMUNGSGEMÄSSE VERWENDUNG Das TL 25 WT Setting Tool ist spezifisch für die Einstellung von Innenjalousien bestimmt, die mit einem fest verdrahteten Antrieb vom Typ TLW 25 WT Somfy ausgestattet sind. Bitte wenden Sie sich im Zweifelsfall an Ihren Ansprechpartner bei Somfy.
Seite 17
Sie diesen in eine nicht. getrennt. Wandsteckdose ein. Wenn der Behang oder das TL 25 WT Setting Tool weiterhin nicht funktionieren, wenden Sie sich bitte an einen Fachmann für Gebäudeautomation. 2.4.2. Zurücksetzen auf Werkseinstellung Drücken Sie die Taste RESET für ca. sieben Sekunden, bis der Behang sich zweimal kurz bewegt (die LED für die Taste RESET leuchtet...
Seite 20
TL 25 WT Setting tool VERSIONE TRADOTTA Queste istruzioni si applicano a tutti gli strumenti TL 25 WT Setting tool, le cui diverse versioni sono disponibili nel presente catalogo. SOMMARIO 1. Informazioni preliminari 2.4. Consigli e raccomandazioni per 1.1. Settore di applicazione l'installazione 1.2.
Seite 21
1.2. RESPONSABILITÀ Prima di installare e di utilizzare il TL 25 WT Setting tool, leggere attentamente questo libretto. Il presente prodotto deve essere installato da un professionista di impianti di motorizzazione e domotica, conformemente alle istruzioni di Somfy e alle norme applicabili nel paese in cui avviene la messa in servizio.
Seite 22

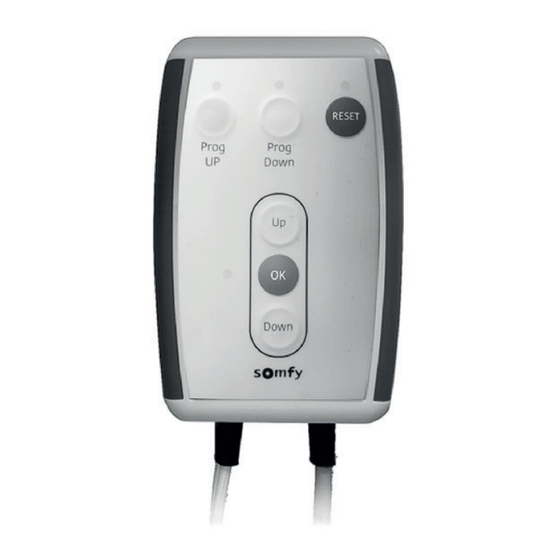

• Seguire la norme della motorizzazione corrispondente. 2.1. MONTAGGIO 2.1.1. Descrizione degli elementi Il TL 25 WT Setting tool è composto dai seguenti elementi: Un adattatore di rete 100-240 V, uscita 24 V 1,5 A, RESET...
Seite 25
Se il prodotto motorizzato oppure il TL 25 WT Setting tool continuano a non funzionare, contattare un professionista della motorizzazione e dell'automazione domestica. 2.4.2. Ritorno alla configurazione originale Premere il pulsante RESET per circa sette secondi, fino a quando non si otterranno due brevi movimenti...
Seite 27
TL 25 WT Setting tool Con la presente, SOMFY ACTIVITES SA dichiara che il prodotto è conforme ai requisiti essenziali e alle altre disposizioni pertinenti delle direttive europee applicabili per l'Unione Europea. Una dichiarazione conformità è disponibile all'indirizzo Internet www.somfy.com/ce.
Seite 28
TL 25 WT Setting tool VERTALING VAN DE HANDLEIDING Deze handleiding is geldig voor alle TL 25 WT Setting tool-toestellen en waarvan de verschillende versies in de huidige catalogus staan. INHOUD 1. Informatie vooraf 3. Gebruik en onderhoud 1.1. Toepassingsgebied 3.1.
Seite 29
1. INFORMATIE VOORAF 1.1. TOEPASSINGSGEBIED De TL 25 WT Setting tool is een apparaat dat speciaal voorzien is voor het instellen van gemotoriseerde binnenjaloezieën van het type TLW 25 WT van Somfy. Raadpleeg in geval van twijfel een vertegenwoordiger van Somfy.
Seite 30
• Volg de instructies van de overeenkomstige motor. 2.1. MONTAGE 2.1.1. Beschrijving van de elementen De TL 25 WT Setting tool bestaat uit de volgende RESET Prog Prog Down...
Seite 33
Als het gemotoriseerde systeem of de TL 25 WT Setting tool nog steeds niet werkt, neem dan contact op met een professionele installateur van motoriserings- en automatiseringssystemen in woningen.
Seite 36
TL 25 WT Setting tool ORIGINAL VERSION These instructions are applicable to the TL 25 WT Setting tool, versions of which are available in the current catalogue. CONTENTS 1. Prior information 3. Use and maintenance 1.1. Field of application 3.1. Up and Down buttons 1.2.
Seite 37
1. PRIOR INFORMATION 1.1. FIELD OF APPLICATION The TL 25 WT Setting tool is a tool specially designed for adjusting internal Venetian blinds fitted solely with a TLW 25 WT Somfy wired type drive. If in doubt, consult a Somfy representative.
Seite 44
TL 25 WT Setting tool VERSIÓN TRADUCIDA DEL MANUAL ORIGINAL Estas instrucciones se aplican a todas las herramientas TL 25 WT Setting tool. Las diferentes versiones están disponibles en el catálogo en vigor. ÍNDICE 1. Información previa 3. Uso y mantenimiento 1.1.
Seite 45
La herramienta TL 25 WT Setting tool es específica para ajustes de persianas venecianas de interior equipadas únicamente con un motor por cable TLW 25 WT Somfy. En caso de duda, póngase en contacto con uno de los agentes de Somfy.
Seite 49
Si el producto automatizado o la herramienta TL 25 WT Setting tool no funciona, póngase en contacto con un profesional de la motorización y la automatización de la vivienda. 2.4.2. Modo de fábrica Pulse el botón RESET durante siete segundos...
Seite 52
TL 25 WT Setting tool VERSÃO TRADUZIDA Estas instruções aplicam-se à ferramenta TL 25 WT Setting tool, cujas variantes estão disponíveis no catálogo em vigor. ÍNDICE 1. Informações prévias 3. Utilização e manutenção 1.1. Âmbito de aplicação 3.1. Botões Subida e Descida 58 1.2.
Seite 53
1.2. RESPONSABILIDADE Antes de instalar e utilizar a TL 25 WT Setting tool, leia atentamente estas instruções. Este produto deve ser instalado por um profissional da motorização e da automatização do lar, em conformidade com as instruções da Somfy e com a...
Seite 54
• Seguir as instruções do motor correspondente. 2.1. MONTAGEM 2.1.1. Descrição dos elementos A TL 25 WT Setting tool é composta pelos elementos seguintes: Um adaptador da fonte de alimentação 100-240 V (saída de 24 V 1,5 A); RESET...
Seite 57
à tomada elétrica. Se o produto motorizado ou a TL 25 WT Setting tool continuar a não funcionar, contacte um profissional da motorização e da automatização do lar. 2.4.2. Configuração de origem Premir o botão RESET durante cerca de sete segundos, até...
Seite 60
TL 25 WT Setting tool WERSJA PRZETŁUMACZONA Niniejsza instrukcja dotyczy narzędzi TL 25 WT Setting tool, których różne wersje dostępne są w aktualnym katalogu. SPIS TREŚCI 1. Informacje wstępne 3. Obsługa i konserwacja 1.1. Zakres stosowania 3.1. Przyciski Up i Down 1.2.
Seite 61
TL 25 WT Setting tool 1. INFORMACJE WSTĘPNE 1.1. ZAKRES STOSOWANIA TL 25 WT Setting tool to narzędzie specjalnie zaprojektowane do regulacji żaluzji wewnętrznych wyposażonych w napęd przewodowy TLW 25 WT Somfy. W razie wątpliwości, prosimy skontaktować się z przedstawicielem Somfy.
Seite 62
• Przestrzegać zaleceń dotyczących danego napędu. 2.1. MONTAŻ 2.1.1. Opis elementów Narzędzie TL 25 WT Setting tool składa się z następujących elementów: zasilacz sieciowy 100-240 V wyjście 24 V RESET 1,5 A, Prog...
Seite 65
ą ą podłączyć go do gniazda zasilania. ą ą y g Jeśli napędzany produkt lub TL 25 WT Setting tool nadal nie działa, należy skontaktować się ze specjalistą z zakresu urządzeń mechanicznych i automatyki w budynkach mieszkalnych. 2.4.2. Przywrócenie początkowej konfiguracji Nacisnąć...
Seite 68
TL 25 WT Setting tool PŘELOŽENÝ NÁVOD Tento návod platí pro všechny nastavovací kabely TL 25 WT Setting tool, jejichž různé verze jsou uvedeny v aktuálním katalogu. OBSAH 1. Úvodní informace 3. Používání a údržba 1.1. Oblast použití 3.1. Tlačítka Nahoru a Dolů...
Seite 69
TL 25 WT Setting tool 1. ÚVODNÍ INFORMACE 1.1. OBLAST POUŽITÍ Nastavovací kabel TL 25 WT Setting tool je nástroj určený speciálně pro nastavení interiérových žaluzií vybavených pohony Somfy TLW 25 WT. V případě pochybností kontaktujte pracovníka společnosti Somfy. Odborník na pohony a na automatické domovní systémy provádějící montáž...
Seite 73
Pokud poháněný výrobek nebo nastavovací kabel TL 25 WT Setting tool stále nefungují, kontaktujte odborníka na pohonné systémy a automatizaci budov. 2.4.2. Návrat do výrobního stavu Stiskněte tlačítko RESET na cca sedm sekund až...
