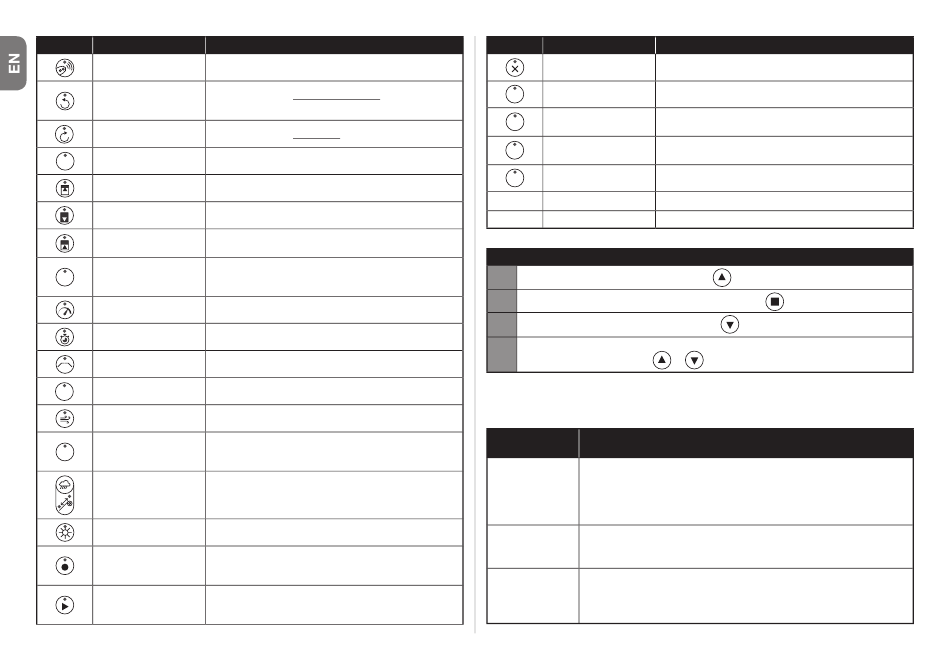

BUTTON FUNCTION DESCRIPTION
TRANSMITTER Enables the functions related to the storage of the
DRY
INSERTION transmitters.
CONT.
COUNTER-
Programmes the counter-clockwise rotation of the
CLOCKWISE
DRY
motor.
CONT.
DIRECTION
CLOCKWISE
Programmes the clockwise rotation of the motor.
DRY
DIRECTION
CONT.
Programmes the behavior of the "dry-contact" in
DRY CONTACT
DRY
the motor.
CONT.
Enables the functions related to the storage of limit
POSITION "0"
AUTO
switch "0".
Enables the functions related to the storage of limit
POSITION "1"
AUTO
switch "1".
Enables the functions related to the storage of
POSITION "I"
AUTO
intermediate position "I".
AUTOMATIC
Starts the automatic search procedure of the limit
SEARCH POSI-
AUTO
switches "0" and "1".
TIONS "0" - "1"
SPEED
Displays and sets the motor speed.
RDC
TIME OF
Displays and sets the duration of the motor's
RDC
MANEUVER
maneuver.
SOFT- START / Displays and sets the level of "soft start" and "soft
RDC
SOFT-STOP
stop".
TORQUE Displays and sets the level of the obstacle sensitiv-
RDC
REDUCTION ity (or the torque reduction).
Displays and sets the level of intervention of the
WIND LEVEL
ON
"wind protection" function.
SWITCHING ON /
Enables and/or disables the automatic movement
SWITCHING OFF
ON
caused by the SUN and RAIN sensors.
SENSORS
RAIN
Displays and sets the direction of movement in
DIRECTION
case of intervention of the RAIN sensor.
Displays and sets the level of intervention of the
SUN LEVEL
ON
"sun protection" function.
Reads the parameters and/or transmitters of the
READ
connected motor and saves them on the internal
RADIO
PARAMETERS
TEST
memory of TTPRO.
Writes the parameters and/or the transmitters of the
WRITE
connected motor, reading them from the TTPRO in-
RADIO
PARAMETERS
TEST
ternal memory.
3 – English
All manuals and user guides at all-guides.com
BUTTON FUNCTION
F1
F2
F1

3.1.1 - BUTTONS FOR MOVEMENTS

A
B
C
D

3.2 - Function and description of the LEDs

CONNECTION
LEDS
RED
ORANGE
GREEN
DESCRIPTION
ERASE Deletes the selected parameters; if pressed for 3
RADIO
PARAMETERS seconds, restores the factory parameters.
TEST
F1 Auxiliary functions 1 button.
F1 F2 F3
F2
Auxiliary functions 2 button.
F2 F3
F3 Auxiliary functions 3 button.
F3
RADIO TEST Displays the RF signal/noise level at 433.92 MHz
RADIO
TEST
•
Usb Displays the link status.
•
Chrg Displays the battery charge status.
ASCENT: press and release the button
MANEUVER STOP: press and release the button
DESCENT: press and release the button
INTERMEDIATE POSITION (if programmed):
press and release the keys +
DESCRIPTION
• LED on permanently:
- no motor connected.
- there have been serious errors of communication and TTPRO did
not recognise the motor properly.
• LED flashes fast: shutdown procedure under way.
• LED flashes slowly: motor search procedure under way.
• LED flashes fast: storing of motor parameters or transmitters
under way.
• LED on permanently: motor connected and properly recognised.
• LED flashes slowly: TTPRO waits for confirmation from the op-
erator (pressing of the OK button); after 3 sec the LED stops flashing
and the operation ends unsuccessful.
simultaneously
