Fronius OPT/i externer Gasregler Bedienungsanleitung Seite 24

24
1 0
1 0
1 4

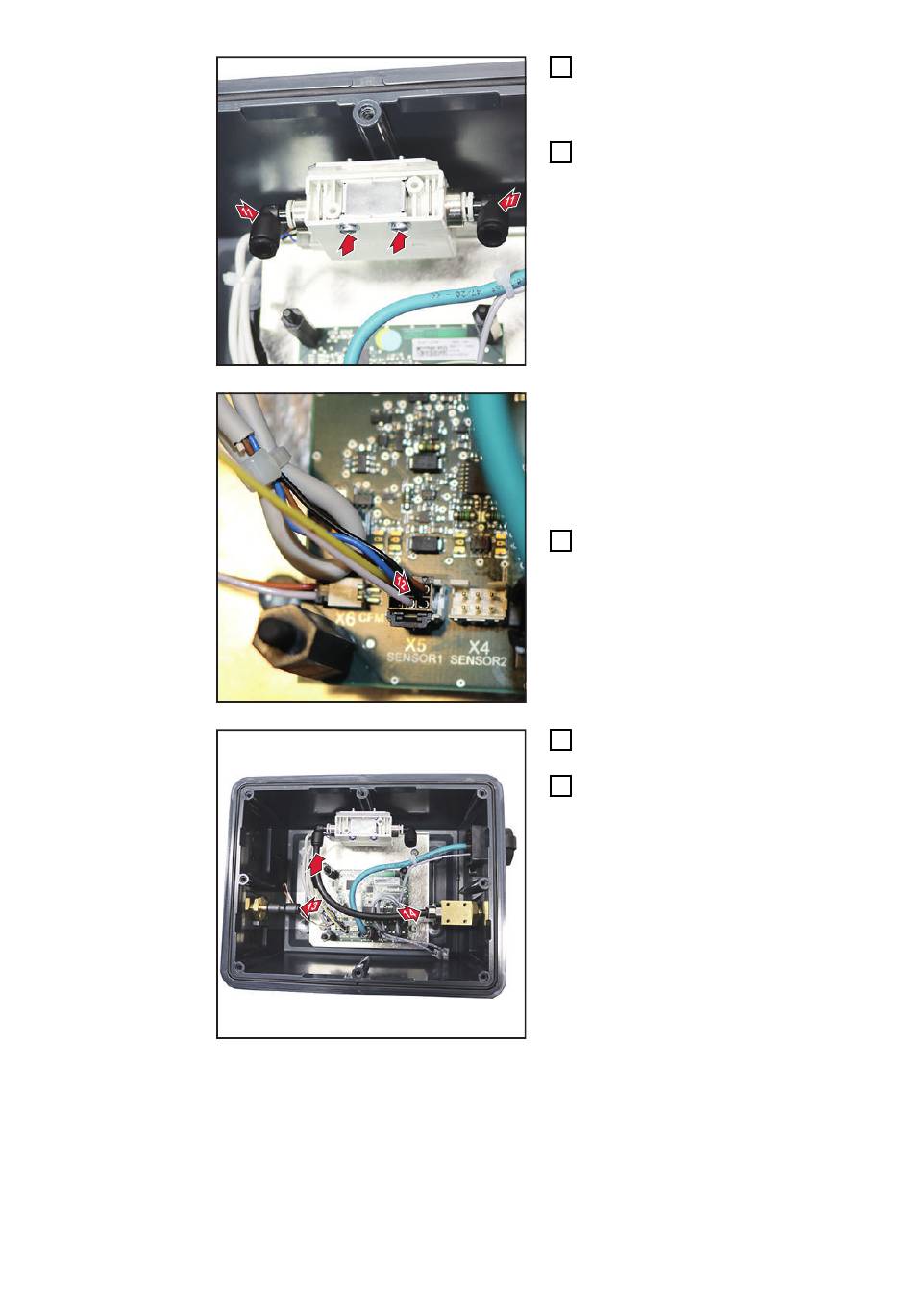

Mount the gas sensor on the bra-
10
cket with 2 M3 x 20 mm screws +
washers using a Philips® screwdri-
ver
Connect 2 angled connections to
11
the gas sensor
IMPORTANT! When connecting the
sensor cable, make sure that the lo-
cking mechanism of the plug points in
the direction of the information prin-
ted on the PC board "X5 SENSOR 1".
Connect the sensor cable to the
12
PC board at X5 SENSOR 1 as
shown in the figure
Connect the plug-in coupling to
13
the shielding gas connection
Connect the gas hose to the gas
14
sensor and control valve as shown
in the figure
