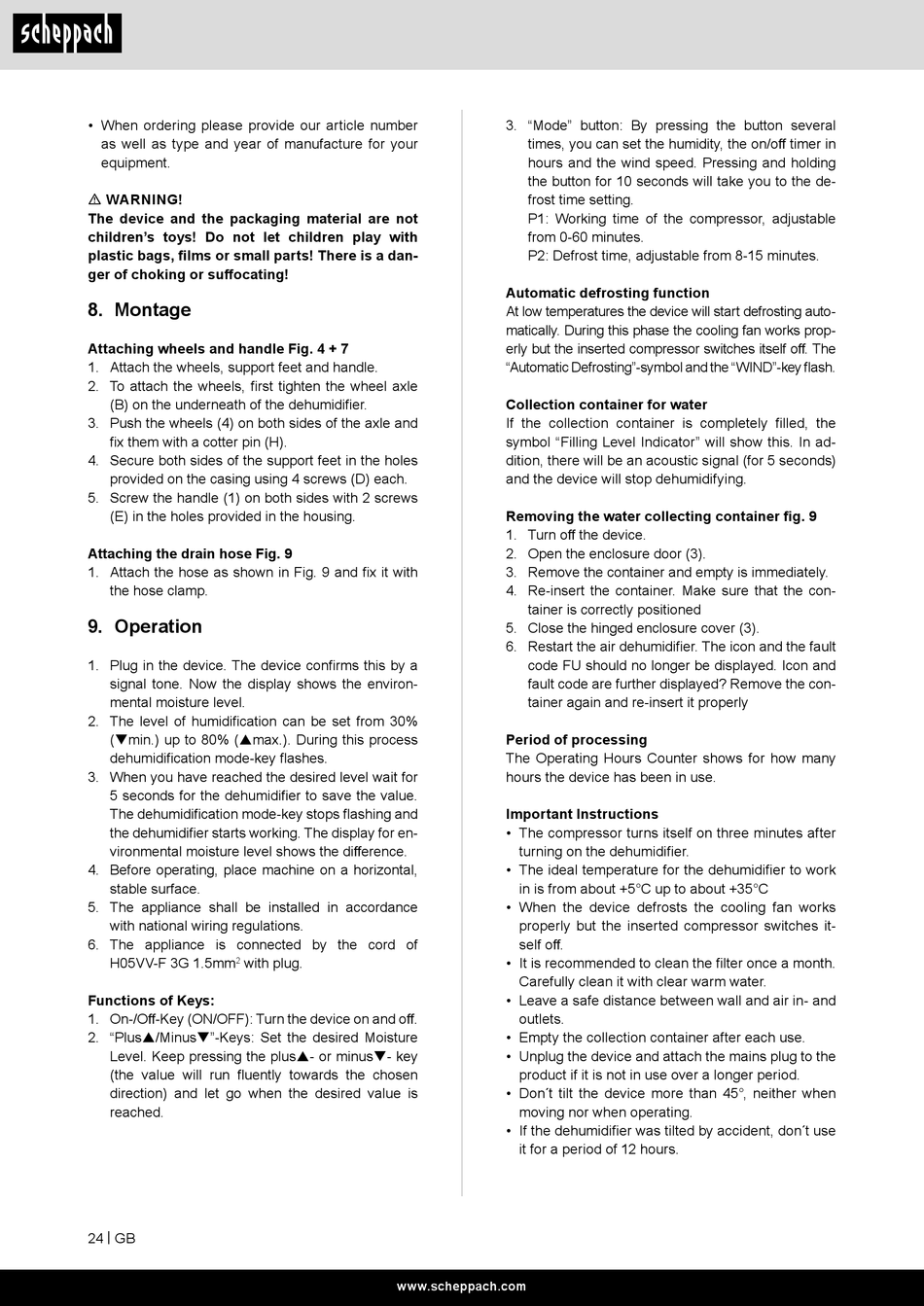

Montage; Operation - Scheppach DH8000x Originalbetriebsanleitung

• When ordering please provide our article number
as well as type and year of manufacture for your
equipment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with
plastic bags, films or small parts! There is a dan-
ger of choking or suffocating!

8. Montage

Attaching wheels and handle Fig. 4 + 7
1. Attach the wheels, support feet and handle.
2. To attach the wheels, first tighten the wheel axle
(B) on the underneath of the dehumidifier.
3. Push the wheels (4) on both sides of the axle and
fix them with a cotter pin (H).
4. Secure both sides of the support feet in the holes
provided on the casing using 4 screws (D) each.
5. Screw the handle (1) on both sides with 2 screws
(E) in the holes provided in the housing.
Attaching the drain hose Fig. 9
1. Attach the hose as shown in Fig. 9 and fix it with
the hose clamp.

9. Operation

1. Plug in the device. The device confirms this by a
signal tone. Now the display shows the environ-
mental moisture level.
2. The level of humidification can be set from 30%
(min.) up to 80% (max.). During this process
dehumidification mode-key flashes.
3. When you have reached the desired level wait for
5 seconds for the dehumidifier to save the value.
The dehumidification mode-key stops flashing and
the dehumidifier starts working. The display for en-
vironmental moisture level shows the difference.
4. Before operating, place machine on a horizontal,
stable surface.
5. The appliance shall be installed in accordance
with national wiring regulations.
6. The appliance is connected by the cord of
H05VV-F 3G 1.5mm with plug.
2
Functions of Keys:
1. On-/Off-Key (ON/OFF): Turn the device on and off.
2. "Plus/Minus"-Keys: Set the desired Moisture
Level. Keep pressing the plus- or minus- key
(the value will run fluently towards the chosen
direction) and let go when the desired value is
reached.
24 | GB
3. "Mode" button: By pressing the button several
times, you can set the humidity, the on/off timer in
hours and the wind speed. Pressing and holding
the button for 10 seconds will take you to the de-
frost time setting.
P1: Working time of the compressor, adjustable
from 0-60 minutes.
P2: Defrost time, adjustable from 8-15 minutes.
Automatic defrosting function
At low temperatures the device will start defrosting auto-
matically. During this phase the cooling fan works prop-
erly but the inserted compressor switches itself off. The
"Automatic Defrosting"-symbol and the "WIND"-key flash.
Collection container for water
If the collection container is completely filled, the
symbol "Filling Level Indicator" will show this. In ad-
dition, there will be an acoustic signal (for 5 seconds)
and the device will stop dehumidifying.
Removing the water collecting container fig. 9
1. Turn off the device.
2. Open the enclosure door (3).
3. Remove the container and empty is immediately.
4. Re-insert the container. Make sure that the con-
tainer is correctly positioned
5. Close the hinged enclosure cover (3).
6. Restart the air dehumidifier. The icon and the fault
code FU should no longer be displayed. Icon and
fault code are further displayed? Remove the con-
tainer again and re-insert it properly
Period of processing
The Operating Hours Counter shows for how many
hours the device has been in use.
Important Instructions
• The compressor turns itself on three minutes after
turning on the dehumidifier.
• The ideal temperature for the dehumidifier to work
in is from about +5°C up to about +35°C
• When the device defrosts the cooling fan works
properly but the inserted compressor switches it-
self off.
• It is recommended to clean the filter once a month.
Carefully clean it with clear warm water.
• Leave a safe distance between wall and air in- and
outlets.
• Empty the collection container after each use.
• Unplug the device and attach the mains plug to the
product if it is not in use over a longer period.
• Don´t tilt the device more than 45°, neither when
moving nor when operating.
• If the dehumidifier was tilted by accident, don´t use
it for a period of 12 hours.
