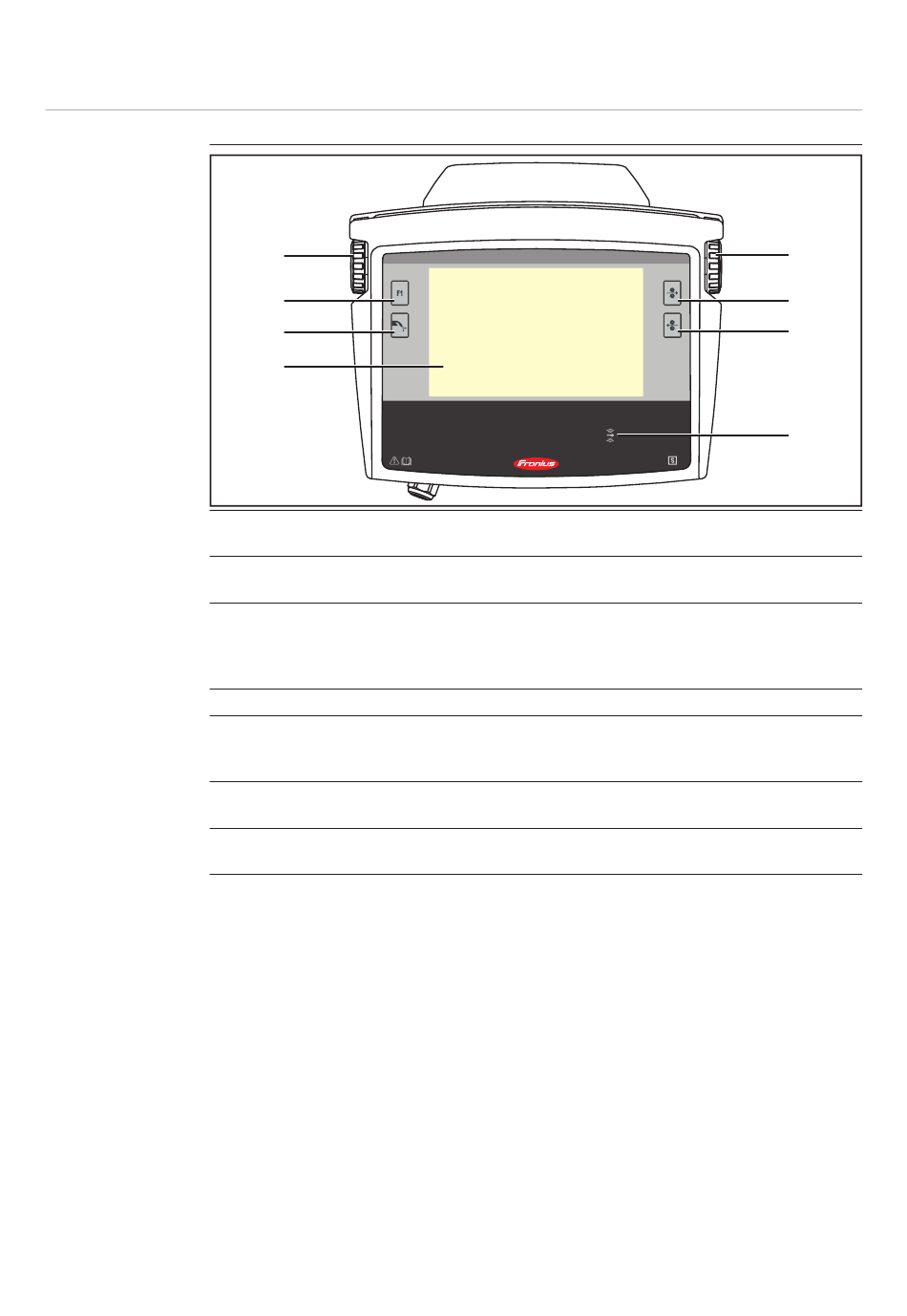

Control elements, connections and displays
Controls and indi-
cators
(1)
(2)
(3)
(4)
(5)
(6)
(7)
12
(1)
(2)
(3)
(4)
Adjusting dial
For setting parameters
Special function button
Special functions can be selected depending on the configuration
Gas-test button
For setting the required gas flow rate on the gas pressure regulator.
After pressing this button, gas flows for 30 seconds. Press the button again to stop
the gas test flow before the end of this period
Touch display
Wire threading button
For threading the wire electrode into the torch hosepack with no accompanying
flow of gas or current
Wire retract button
For retracting the wire electrode with no accompanying flow of gas or current
Key-card reader
For identifying different access rights granted by means of a Keycard
(1)
(5)
(6)
(7)
