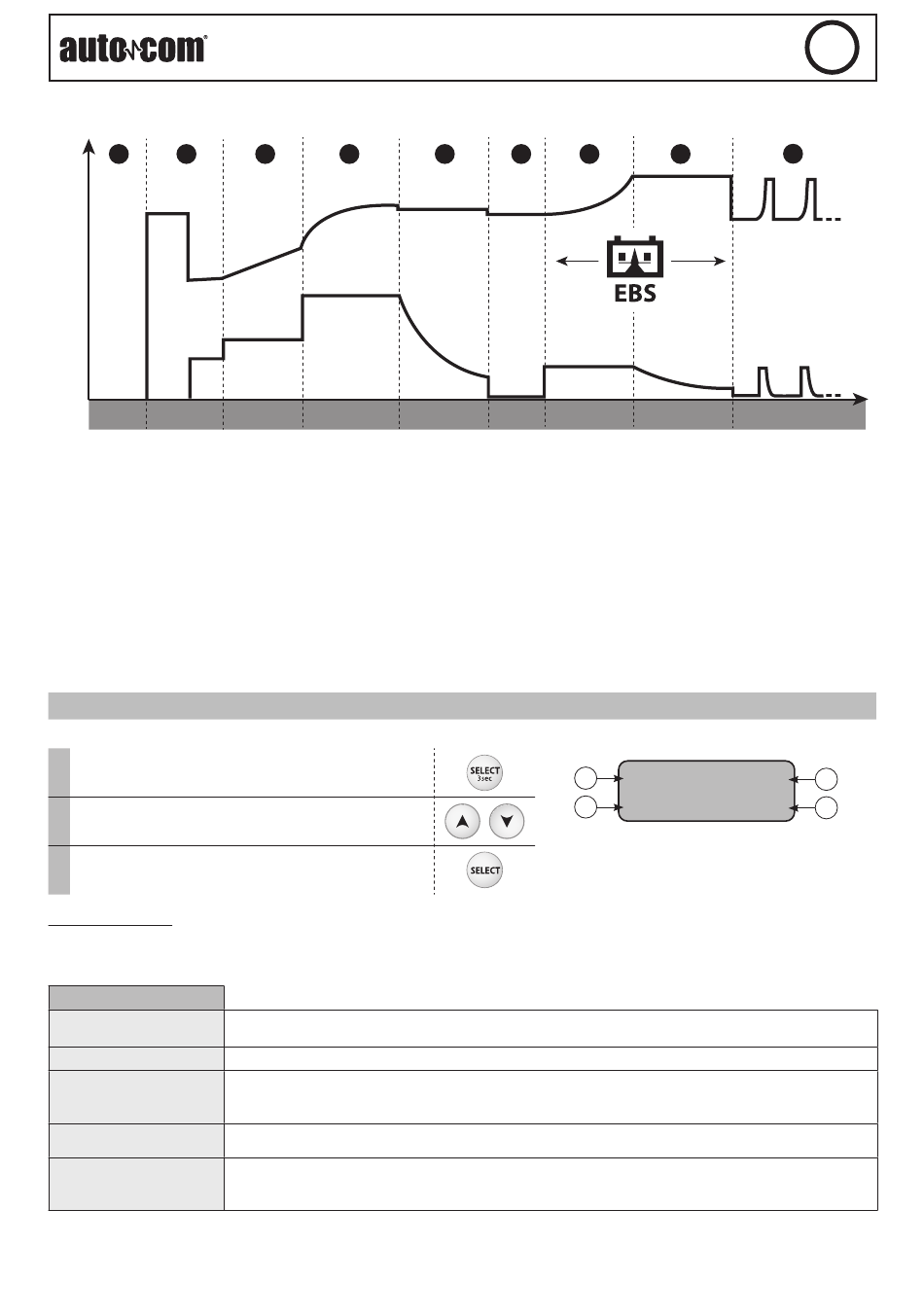

LFP Lithium charging curve:
1 2
U
I
Analysis UVP Wake up
Step 1 : Analysis
Analyses the state of the battery (charge level, polarity inver-
sion, wrong battery...)
Step 2: UVP Wake up
Reactivates batteries in UVP protection (Under Voltage Protection)
Step 3: Recovery
Recovery algorithm following a deep discharge.
Step 4 : Charge
Maximum current fast charge to reach an 90% charge level.
Step 5: Absorption
Constant voltage charge to reach a 95% charge level.
POWER SUPPLY MODES: SHOWROOM / DIAG+
• Setting the mode:
Press the SELECT button for 3 seconds to activate the
1
modification of the mode settings.
2 Use the arrows to change the value of the parameter.
Press the SELECT button to accept the value and move
3
to the next parameter.
Power limitation: If the symbol «*» appears next to the current setting (eg «I: 50A *»), this indicates that the charger cannot
deliver this current at the voltage set on the display. At this voltage level, the charger will be running at maximum power. However,
this current could be delivered at lower voltage depending on the power output of the charger.
POWER MODES
SHOWROOM
DIAG+
CHANGE BAT.
STARTER MODE
POWER SUPPLY
6 6
3 4
Recovery Charge
0% 2%
Maintains the battery's state of charge and supplies power when using the electrical consumers of a demonstra-
tion vehicle.
Supplies energy requirements during the vehicle diagnostic work.
Allows to keep the vehicle power supply during battery replacement, in order to preserve the memory of the
vehicle's ECUs.
Caution: Reverse polarity during use can be harmful to the charger and vehicle electronics.
Starting aid for combustion vehicles. Allows the battery to be precharged and the charger to send the maximum
current during the engine starting phase (the charger stops automatically after 30 minutes).
Allows the charger to be used as an adjustable stabilized power supply with high power. The voltage to be regula-
ted and the current limitation are fully adjustable.
Caution: Reverse polarity during use can be harmful to the charger and vehicle electronics.
Autocom CHARGER
5 6
Absorption Test Supplement
85% 95%
Step 6 : Test
Charge conservation test.
Step 7 : Supplement
Reduce current charge to reach 100% charge level.
Step 8: Equalization / Balancing
Balancing the battery cells
Step 9: Maintenance/Floating charge
Maintain the battery charge level at its maximum.
7 8
Equalizing Battery System
Equalization /
Balancing
99% 100%
SHOWROOM
1
U:13.5V
2
1- Mode name
2- Voltage to be regulated
3- Rated voltage
4- Maximum current
EN
9
Maintenance/
Floating charge
12V
3
I:50A
4
