OEC installation (accessory)

The OEC is installed as follows, which is different from
the way described in the OEC instruction manual:
● Remove the cover hood.
● Pico Compact with steel cladding:
Before you can install the temperature sensor and
the sensor cable, you need to remove the back pan-

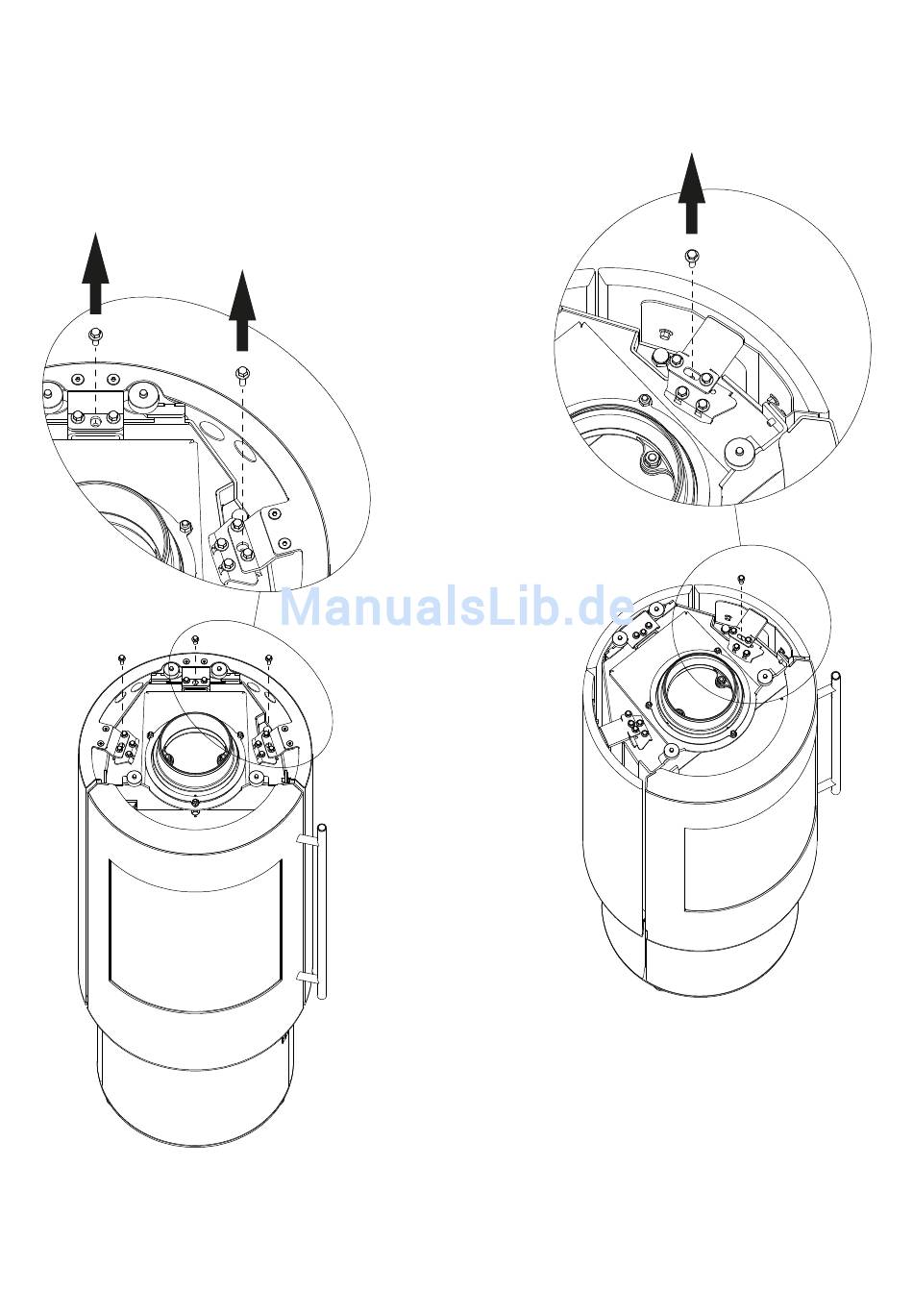

el. To do so, unscrew the 3 hex head screws (see
Fig.7) before lifting the back panel up and out.
Fig.7
18
● Pico Compact with ceramic cladding:
Before you can install the temperature sensor and
the sensor cable, you need to remove the ceramic
side panel on the right. To do so, unscrew the hex
head screw (see Fig.8) before lifting the ceramic
side panel up and out.
Fig.8
