● Install the pipe lining (provided on site) in the chim-
ney. The connection height can be individually spec-
ified for a top stovepipe connection, however should
not exceed 1.5 m from the connector sleeve. For the
rear stovepipe connection heights please refer the
"Technical Data" chapter. No combustible material is
permitted within a radius of 20 cm around the stove
pipe.
● Connect the stovepipe at both connection points
with stove putty so that the stove pipe is permanent-
ly sealed.
● Push the stove onto its planned position and orient it
so that the stovepipe fits into the pipe lining.
The stovepipe connections must be tight. The
stovepipe must not protrude into the chimney.
Bear in mind that on partition walls in accordance
with test specification EN 13240 the temperature
of 85°C can be reached, and with light wallpaper
or similar combustible construction materials this
can result in colour changes.
14

OEC installation (accessory)

The OEC is installed as follows, which is different from
the way described in the OEC instruction manual:
● Combustion chamber door open.
● Carefully pull the lower front shield (Pos.8, Fig.3) to
the front.
● Tighten the motor retaining clip (6) with the spac-
er sleeve to the motor console. Push the servo-mo-
tor (5) onto the rotation axis of the air regulator lever
and snap into the motor retaining clip (Fig.1).

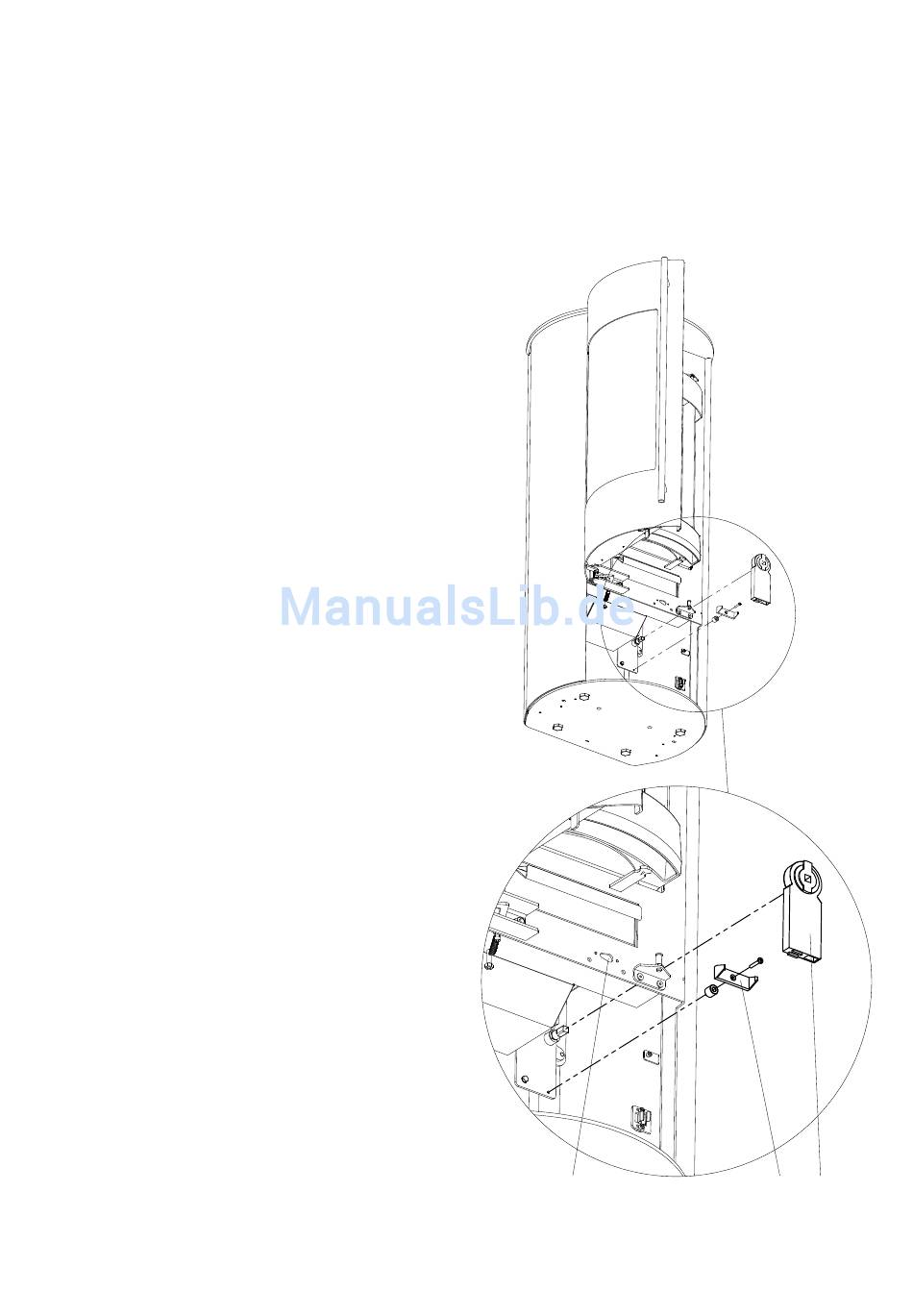

Fig.1 7
5 Servo-motor
6 Motor retaining clip
7 Door contact switch fastening position
6 5
