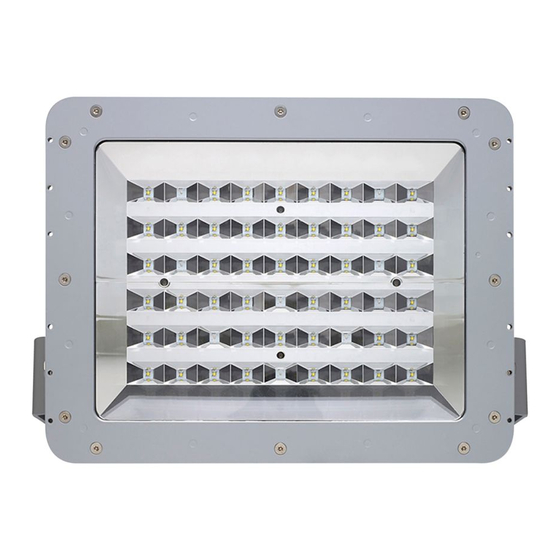

Champ LED floodlight FMV LED fixtures Gen. II
Installation & maintenance information
APPLICATION
Champ LED floodlights are suitable for use in the following hazardous (classified)
®
locations as defined by the National Electrical Code (NEC
FMV:
NEC/CEC:
• Class I, Division 2, Groups A, B, C, D
• Class I, Zone 2
• Class II, Groups E, F, G
• Wet Location, Type 4X, IP66
IECEx & ATEX:
• IECEx UL15.0029X
• DEMKO 15 ATEX 1377X
• DEMKO 15 ATEX 1383
• Ex II 3 G Ex nA IIC T5 Gc Tamb -40°C - +40°C
• Ex II 3 G Ex nA IIC T4 Gc Tamb -40°C - +40°C*
• Ex ec IIC T5 Gc Tamb -40°C - +40°C
• Ex ec IIC T4 Gc Tamb -40°C - +55°C
• Ex II 2 D Ex tb IIIC T65 Db Tamb -40°C - +40°C
• Ex II 2 D Ex tb IIIC T80 Db Tamb -40°C - +55°C
• Ex tb IIIC T65 Db Tamb -40°C - +40°C
• Ex tb IIIC T80 Db Tamb -40°C - +55°C
•
0539
UL standards:
• UL 844 Hazardous (Classified), UL1598 Luminaires, UL1598A Marine, UL8750
*T4 from -40°C - +40°C when used with 3x3 optic.
To avoid the risk of fire, explosion or electric shock, this product should be
installed, inspected and maintained by a qualified electrician only, in accordance
with all applicable electrical codes.
To avoid electric shock:
• Be certain electrical power is OFF before and during installation and
maintenance.
• Floodlight must be supplied by a wiring system suitable per local code with
an equipment grounding conductor.
To avoid burning hands:
• Make sure LEDs and drivers are cool to touch when performing
maintenance.
INSTALLATION
Mounting
Yoke Mount - Wall Mount Using Floodlight Yoke Only
1. Using floodlight yoke as a template, mark and drill desired location on mounting
surface.
2. Secure floodlight yoke to surface using ½" bolts or lag screws (not provided).
WIRING
Wiring the Floodlight
1. Open back cover/heat sink by loosening nine (9) #10-24 x 0.75" stainless steel cover
bolts using a 5/8" nut socket or flat head screwdriver (see Figure 1). The heat sink
cover should be removed by pulling back on one corner of the top most edge to cover should be removed by pulling back on one corner of the top most edge to
prevent damage to gasket. prevent damage to gasket.
2. All components in the fixture are pre-wired so only line in, neutral and ground need to
be connected in the fixture using the terminal block, using methods that comply with
all applicable codes. Insert wires into terminal block by pressing down on tabs. Be
sure wires are spaced as shown in Figure 2.
• Wire range from AWG 18-14 (0.75 - 2.5mm²) for neutral, and line (strip length
0.43" [10.9mm]), and AWG 16-14 (1.5 - 2.5mm²) for ground connections (strip
length 0.43" [10.9mm]).
• Entries to driver housing shall be sealed, using HTL or STL, with devices rated a
minimum of IP66.
• Standard openings are M20, M25 or 3/4" NPT.
• Optional openings are M20 (20mm) and/or M25 (25mm).
• Secure all electrical connections and wiring entry glands.
• Ensure that the following lengths for field wiring, internal to the driver housing
compartment, are followed:
– 4.5" ± 0.25" (114 ± 6mm) for ground wire
– 2.5" ± 0.25" (64 ± 6mm) for neutral wire
– 2" ± 0.25" (51 ± 6mm) for line in wire
IF 1737 • 04/22
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
):
®
WARNING
WARNING
(see Figure 1). The heat sink
Copyright
IEC standards:
• IEC 60079-0, 6 th
(2013-11) + I-SH 02 (2014-10)/EN 60079-0:2012 + A11:2013
• IEC 60079-7, Edition 5.1 (2017-08)/EN 60079-7: 2015 +A1:2018
• IEC 60079-31, 2
• IEC 60598-1:2008/EN60598-1:2008
• IEC 60598-2:2008/EN60598-2:2008
Refer to the floodlight nameplate for specific classification information, maximum
ambient temperature suitability and corresponding operating temperature (T-code).
Champ LED floodlights' construction is designed for use indoors and outdoors in
marine and wet locations, where moisture, dirt, corrosion, vibration and rough usage
may be present.
Champ LED floodlights are supplied for use with a choice of voltages:
• 100-277 VAC, 50/60 Hz
• 108-250 VDC
• 347-480 VAC, 50/60 Hz
Champ LED floodlights for IEC:
• 100-252 VAC, 50/60 Hz 2.16
• 108-250 VDC
• 347-440 VAC, 50/60 Hz
Champ LED floodlights are compliant with the regulation on the assessment of
product compliance for explosive atmospheres.
This product contains a light source of energy efficiency class D or E.
To avoid explosion:
• Make sure the supply voltage is the same as the rated floodlight voltage.
• Do not install where the marked operating temperatures exceed the
ignition temperature of the hazardous atmosphere.
• Do not operate in ambient temperatures above those indicated on the
floodlight nameplate.
• Use only replacement parts from Crouse-Hinds.
• Use proper supply wiring as specified on the floodlight nameplate.
• All surfaces must be clean.
• Before opening, electrical power to the floodlight must be turned off and
area must be free from hazardous atmosphere. Keep tightly closed when
in operation.
• To minimize the risk from electrostatic discharge, when cleaning, wipe the
lens with a clean, damp cloth.
2022, Eaton's Crouse-Hinds Division
®
Edition (2011-06) + Corr. 1 (2012-01) + Corr. 2 (2013-12) + I-SH 01
nd Edition (2013-11)/EN 60079-31:2014
Directive EU 2019/2015
WARNING

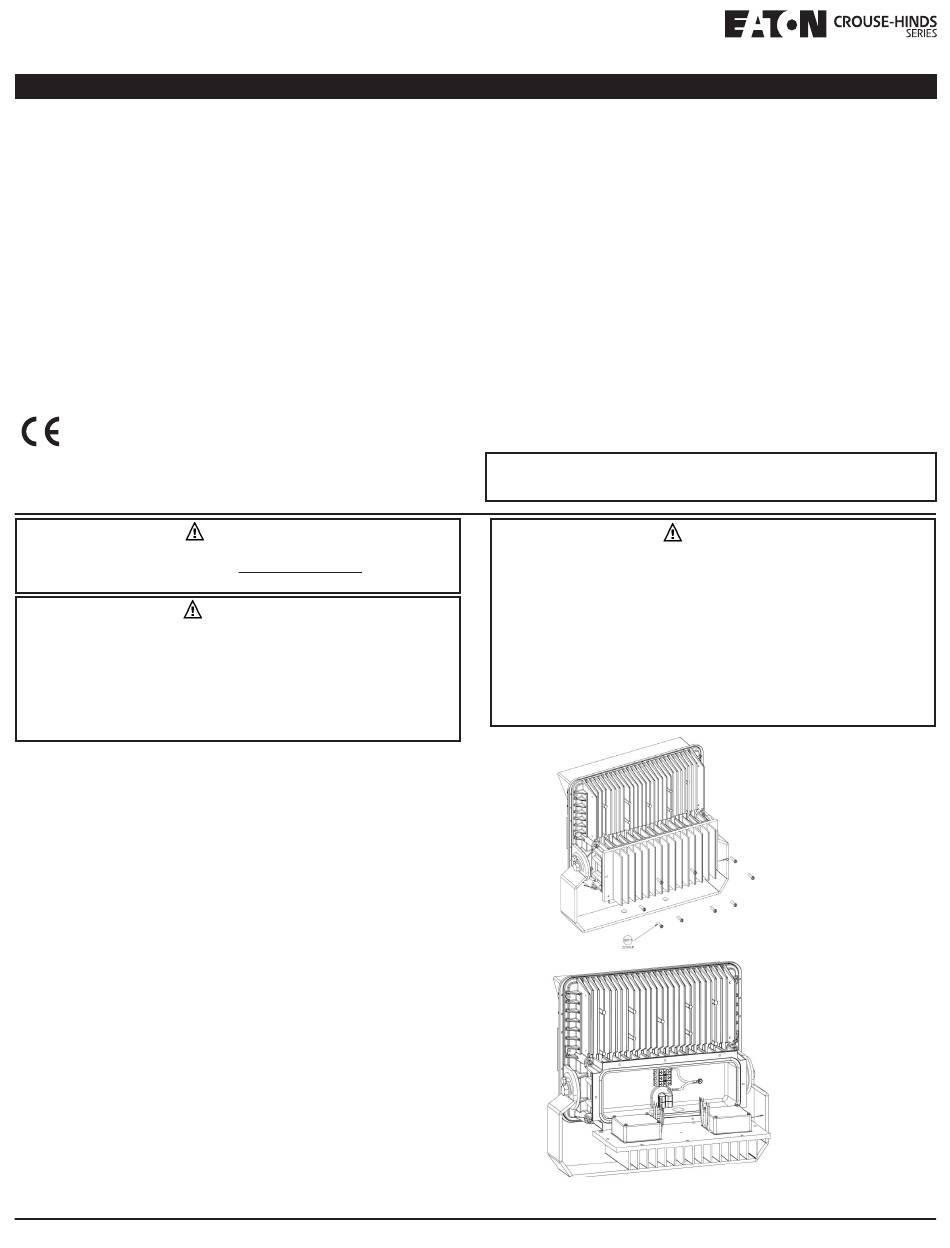

Figure 1
IF 1737
DO NOT PLACE
ADDITIONAL WEIGHT
ON THE BACK COVER/
HEAT SINK
