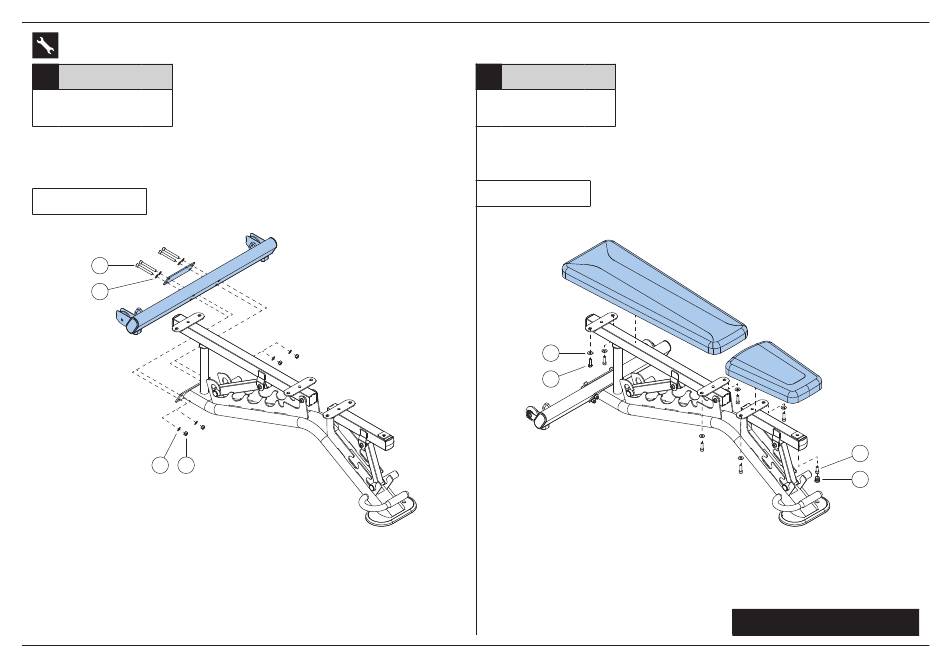

ASSEMBLY
1
Hardware Qty
A Bolt (M10x75L) 4
B Flat Washer (M10) 8
C Nut (M10) 4
Torque Value
30 Nm / 22 ft-lb
A
B
B C
ENGLISH
2
Hardware Qty
D Bolt (M10x25L) 7
B Flat Washer (M10) 6
E Bolt Cap 1
Torque Value
20 Nm / 15 ft-lb
B
D
5
D
E
ASSEMBLY COMPLETE
