Bedienungs- und Installationsanleitung
Installation- and Operation Instruction
Meßgaskühler / Sample Gas Coolers EGK 4 S
Maintenance and repair
−
Repairs on the device must be carried out by Bühler authorized persons only.
−
Only perform modifications, maintenance or mounting described in this manual.
−
Only use original spare parts.
−
During maintenance regard all safety regulations and internal operation instructions.

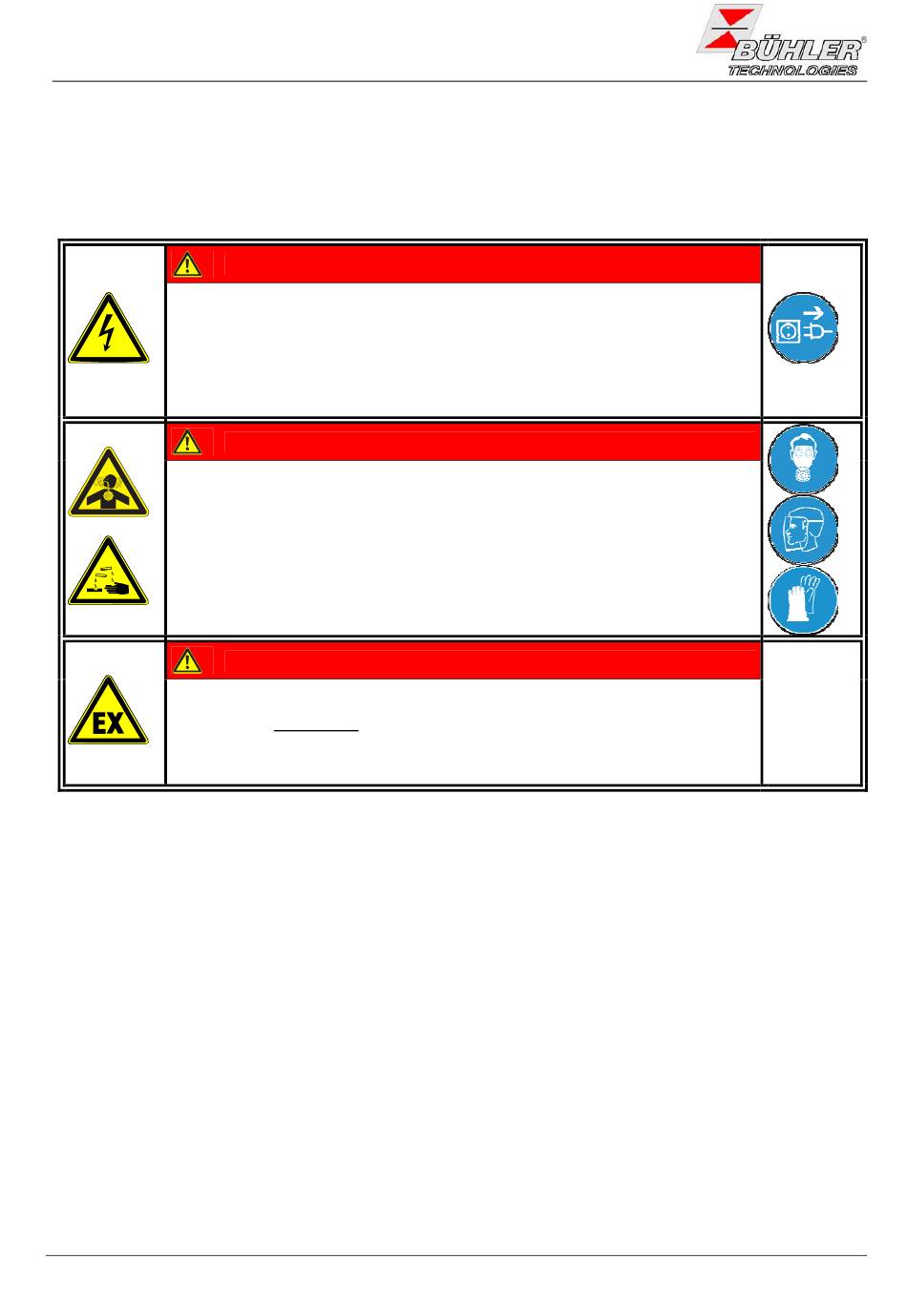

DANGER
Electrical voltage
Electrocution hazard.
Disconnect the device from power supply. Make sure that the equipment
cannot be reconnected to mains unintentionally.
The device must be opened by trained staff only.
DANGER
Toxic and corrosive gases
Sample gas can be hazardous.
Take care that the gas is exhausted in a place where no persons are in danger.
Protect yourself during maintenance against toxic / corrosive gases. Use
gloves, respirator and face protector under certain circumstances.
DANGER
Explosion hazard if used in hazardous areas
The device is not suitable for operation in hazardous areas with potentially
explosive atmospheres.
Do not expose the device to combustible or explosive gas mixtures.
3

Installation and Connection

The EGK 4S sample cooler is to be attached to vertical panels or can be table mount. In the latter case make
sure that the cooler is standing on a safe, rigid and levelled surface to avoid tilting.
The heat exchangers either made from stainless steel, glass or PVDF are inserted from the top. Make sure,
that there is enough space left above and under the cooler to get the pipes or hoses connected to the unit.
The place of installation must be weather shielded and air shall circulate freely around the cooler. The ambient
temperature shall not exceed the range from +5 to +50°C (+41 to +122°F).
Free air circulation must be provided. On both sides a gap of at least 10 cm (4 inches) must be kept clear.
Free air circulation must also be provided if the cooler is installed inside a cabinet. In some cases a fan is
necessary to establish sufficient circulation within the cabinet.
3.1

Mounting

Depending on the application parameters the connecting pipes or hoses must be of adequate material and
fastened tight. Connect the hoses to the heat exchangers made of Duran glass with care to avoid breaking the
glass.
Make sure that all sample gas lines leading to the cooler are installed with downward slope to enable conden-
sate flow into the heat exchanger by gravity.
BX450004, 09/2006 ART. NR. 90 31 060
11
