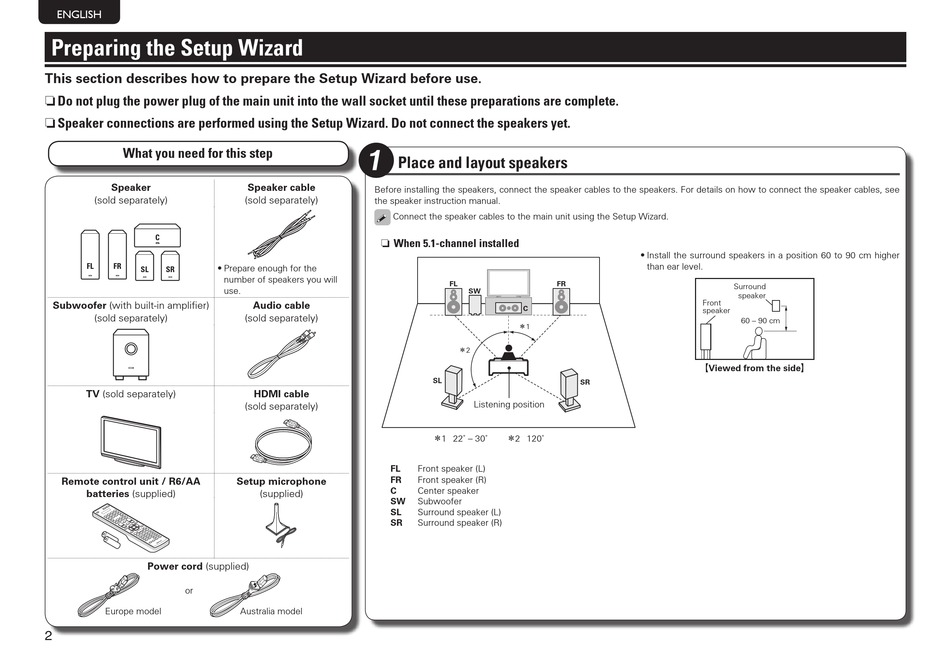

Preparing the Setup Wizard

This section describes how to prepare the Setup Wizard before use.
n Do not plug the power plug of the main unit into the wall socket until these preparations are complete.
n Speaker connections are performed using the Setup Wizard. Do not connect the speakers yet.
What you need for this step
Speaker
(sold separately)
C
FL FR
• Prepare enough for the
SL SR
number of speakers you will
use.
Subwoofer (with built-in amplifier)
(sold separately)
TV (sold separately)
Remote control unit / R6/AA
batteries (supplied)
Power cord (supplied)
or
Europe model
2
FrANçAiS itAliANo ESpAñol
1
Place and layout speakers
Speaker cable
Before installing the speakers, connect the speaker cables to the speakers. For details on how to connect the speaker cables, see
(sold separately)
the speaker instruction manual.
Connect the speaker cables to the main unit using the Setup Wizard.
n When 5.1-channel installed
Audio cable
(sold separately)
HDMI cable
(sold separately)
FL
FR
Setup microphone
C
(supplied)
SW
SL
SR
Australia model
NEDErlANDS SVENSKA
FL FR
SW
C
z1
z2
SL
SR
Listening position
z1 22˚ – 30˚ z2 120˚
Front speaker (L)
Front speaker (R)
Center speaker
Subwoofer
Surround speaker (L)
Surround speaker (R)
РУССКИЙ POLSKI
• Install the surround speakers in a position 60 to 90 cm higher
than ear level.
Surround
speaker
Front
speaker
60 – 90 cm
GViewed from the sideH
TÜRKÇE
