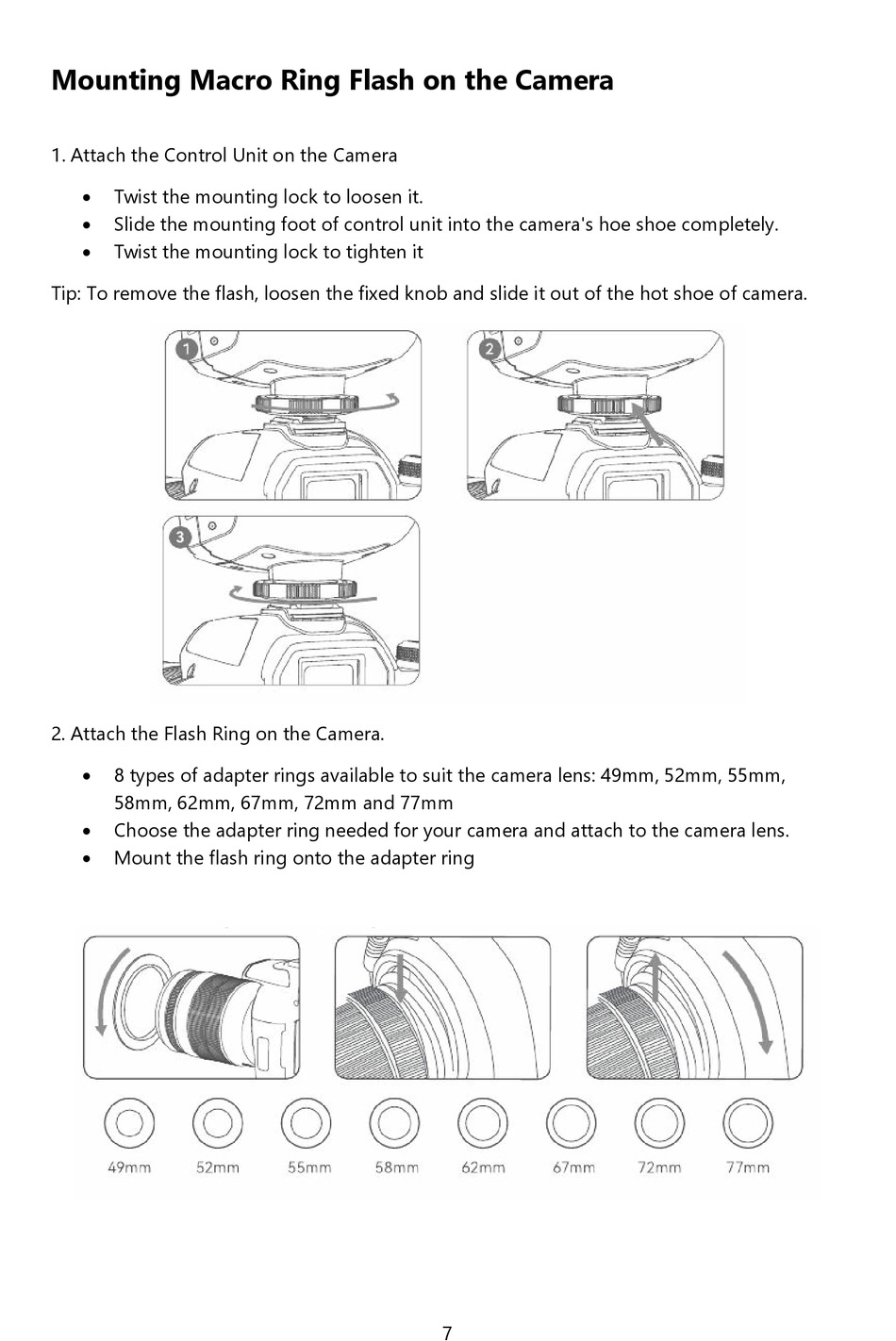

Mounting Macro Ring Flash on the Camera
1. Attach the Control Unit on the Camera

Twist the mounting lock to loosen it.

Slide the mounting foot of control unit into the camera's hoe shoe completely.

Twist the mounting lock to tighten it
Tip: To remove the flash, loosen the fixed knob and slide it out of the hot shoe of camera.
2. Attach the Flash Ring on the Camera.

8 types of adapter rings available to suit the camera lens: 49mm, 52mm, 55mm,
58mm, 62mm, 67mm, 72mm and 77mm

Choose the adapter ring needed for your camera and attach to the camera lens.

Mount the flash ring onto the adapter ring
