EMPHASER EM-BMW3FR1 Einbau & Bedienungsanleitung Seite 5

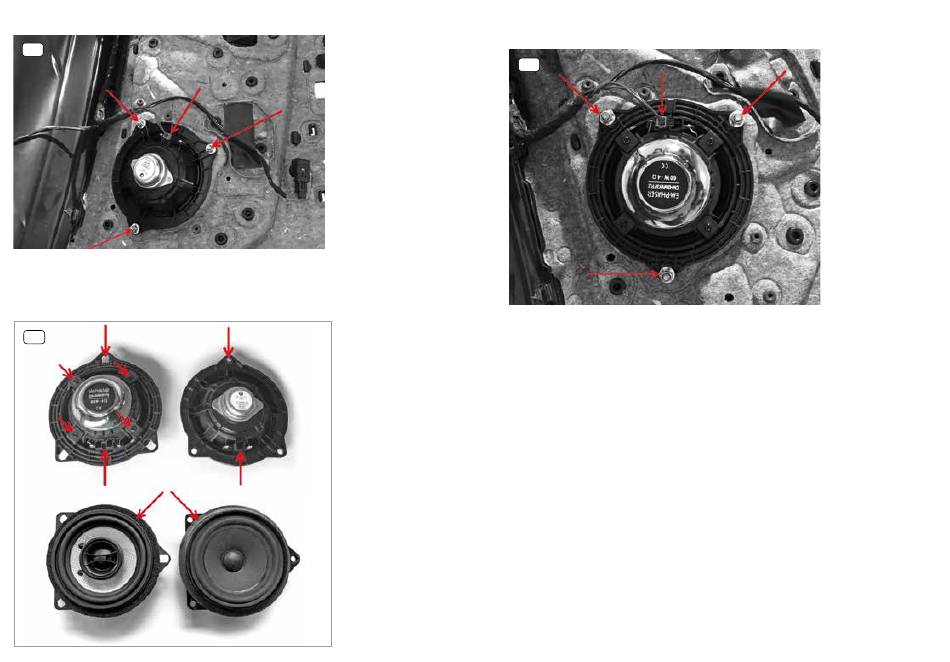

Disassemble the original speaker.
3
Now choose the right adapter for your new EMPHASER loudspeaker. In the case of the BMW
F10, it is the adapter for installation type A / B. Mount the adapter to the base loudspeaker
chassis with the enclosed screws. Finally stick the provided foam ring to the adapter.
4
8
Place the completely assembled EMPHASER loudspeaker on the door panel and tighten it
with the original screws.
5
Only EM-BMW3FR1: Remove the original tweeter and attach the new EMPHASER tweeter.
Route the connection cable to the midrange. Insert the provided Y-cable adapter into the
EMPHASER midrange terminal and connect the original cable with the EMPHASER tweeter lead.
Only EM-BMW3FR2: Plug the original cable into the terminal of the EMPHASER loudspeaker.
Mount the door trim in reverse order.
