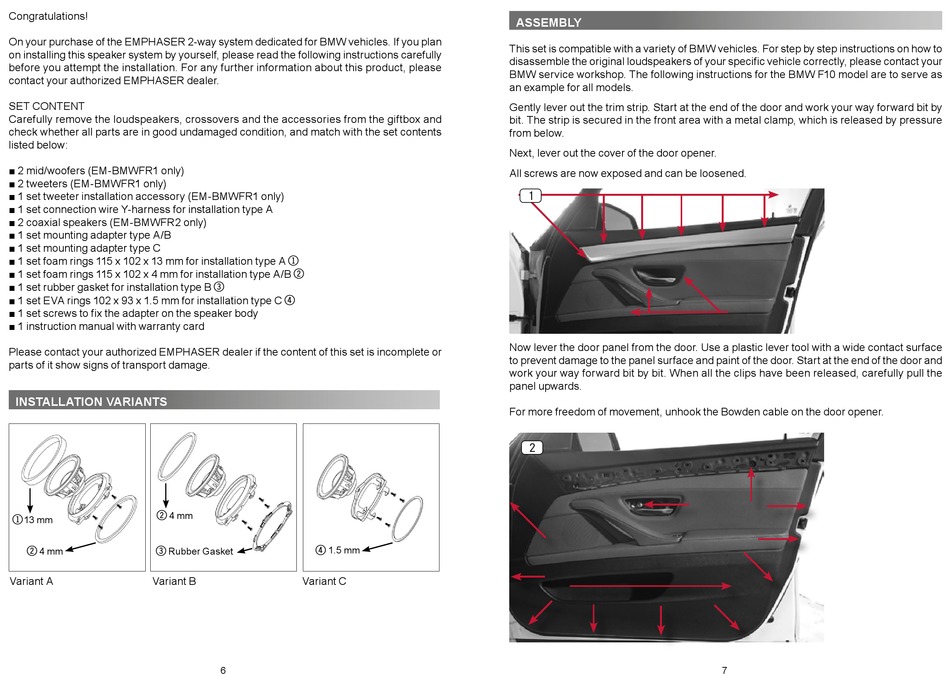

Congratulations!
On your purchase of the EMPHASER 2-way system dedicated for BMW vehicles. If you plan
on installing this speaker system by yourself, please read the following instructions carefully
before you attempt the installation. For any further information about this product, please
contact your authorized EMPHASER dealer.
SET CONTENT
Carefully remove the loudspeakers, crossovers and the accessories from the giftbox and
check whether all parts are in good undamaged condition, and match with the set contents
listed below:
■ 2 mid/woofers (EM-BMWFR1 only)
■ 2 tweeters (EM-BMWFR1 only)
■ 1 set tweeter installation accessory (EM-BMWFR1 only)
■ 1 set connection wire Y-harness for installation type A
■ 2 coaxial speakers (EM-BMWFR2 only)
■ 1 set mounting adapter type A/B
■ 1 set mounting adapter type C
■ 1 set foam rings 115 x 102 x 13 mm for installation type A
■ 1 set foam rings 115 x 102 x 4 mm for installation type A/B
■ 1 set rubber gasket for installation type B
■ 1 set EVA rings 102 x 93 x 1.5 mm for installation type C
■ 1 set screws to fix the adapter on the speaker body
■ 1 instruction manual with warranty card
Please contact your authorized EMPHASER dealer if the content of this set is incomplete or
parts of it show signs of transport damage.
INSTALLATION VARIANTS
4 mm
2
13 mm
1
4 mm
Rubber Gasket
2
3
Variant A
Variant B
1
2
3
4
1.5 mm
4
Variant C
6
ASSEMBLY
This set is compatible with a variety of BMW vehicles. For step by step instructions on how to
disassemble the original loudspeakers of your specific vehicle correctly, please contact your
BMW service workshop. The following instructions for the BMW F10 model are to serve as
an example for all models.
Gently lever out the trim strip. Start at the end of the door and work your way forward bit by
bit. The strip is secured in the front area with a metal clamp, which is released by pressure
from below.
Next, lever out the cover of the door opener.
All screws are now exposed and can be loosened.
1
Now lever the door panel from the door. Use a plastic lever tool with a wide contact surface
to prevent damage to the panel surface and paint of the door. Start at the end of the door and
work your way forward bit by bit. When all the clips have been released, carefully pull the
panel upwards.
For more freedom of movement, unhook the Bowden cable on the door opener.
2
7
