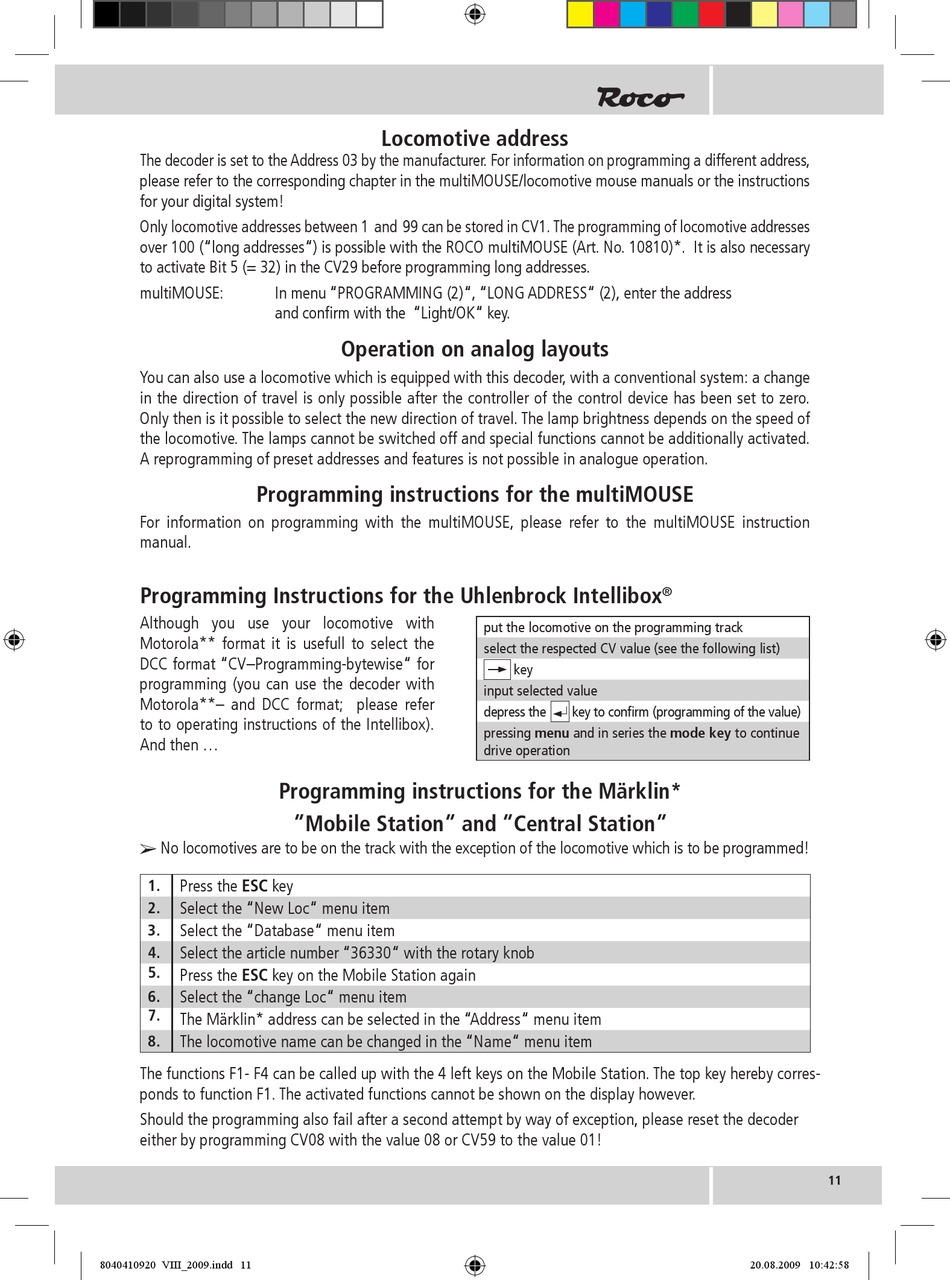

The decoder is set to the Address 03 by the manufacturer. For information on programming a different address,
please refer to the corresponding chapter in the multiMOUSE/locomotive mouse manuals or the instructions
for your digital system!
Only locomotive addresses between 1 and 99 can be stored in CV1. The programming of locomotive addresses
over 100 ("long addresses") is possible with the ROCO multiMOUSE (Art. No. 10810)*. It is also necessary
to activate Bit 5 (= 32) in the CV29 before programming long addresses.
multiMOUSE:
In menu "PROGRAMMING (2)", "LONG ADDRESS" (2), enter the address
and confirm with the "Light/OK" key.
You can also use a locomotive which is equipped with this decoder, with a conventional system: a change
in the direction of travel is only possible after the controller of the control device has been set to zero.
Only then is it possible to select the new direction of travel. The lamp brightness depends on the speed of
the locomotive. The lamps cannot be switched off and special functions cannot be additionally activated.
A reprogramming of preset addresses and features is not possible in analogue operation.
Programming instructions for the multiMOUSE
For information on programming with the multiMOUSE, please refer to the multiMOUSE instruction
manual.
Programming Instructions for the Uhlenbrock Intellibox
Although you use your locomotive with
Motorola** format it is usefull to select the
DCC format "CV–Programming-bytewise" for
programming (you can use the decoder with
Motorola**– and DCC format; please refer
to to operating instructions of the Intellibox).
And then ...
Programming instructions for the Märklin*
No locomotives are to be on the track with the exception of the locomotive which is to be programmed!
1.
Press the ESC key
2.
Select the "New Loc" menu item
3.
Select the "Database" menu item
4.
Select the article number "36330" with the rotary knob
5.
Press the ESC key on the Mobile Station again
6.
Select the "change Loc" menu item
7.
The Märklin* address can be selected in the "Address" menu item
8.
The locomotive name can be changed in the "Name" menu item
The functions F1- F4 can be called up with the 4 left keys on the Mobile Station. The top key hereby corres-
ponds to function F1. The activated functions cannot be shown on the display however.
Should the programming also fail after a second attempt by way of exception, please reset the decoder
either by programming CV08 with the value 08 or CV59 to the value 01!
8040410920 VIII_2009.indd 11
Locomotive address
Operation on analog layouts
"Mobile Station" and "Central Station"
®
put the locomotive on the programming track
select the respected CV value (see the following list)
key
input selected value
depress the
key to confirm (programming of the value)
pressing menu and in series the mode key to continue
drive operation
11
