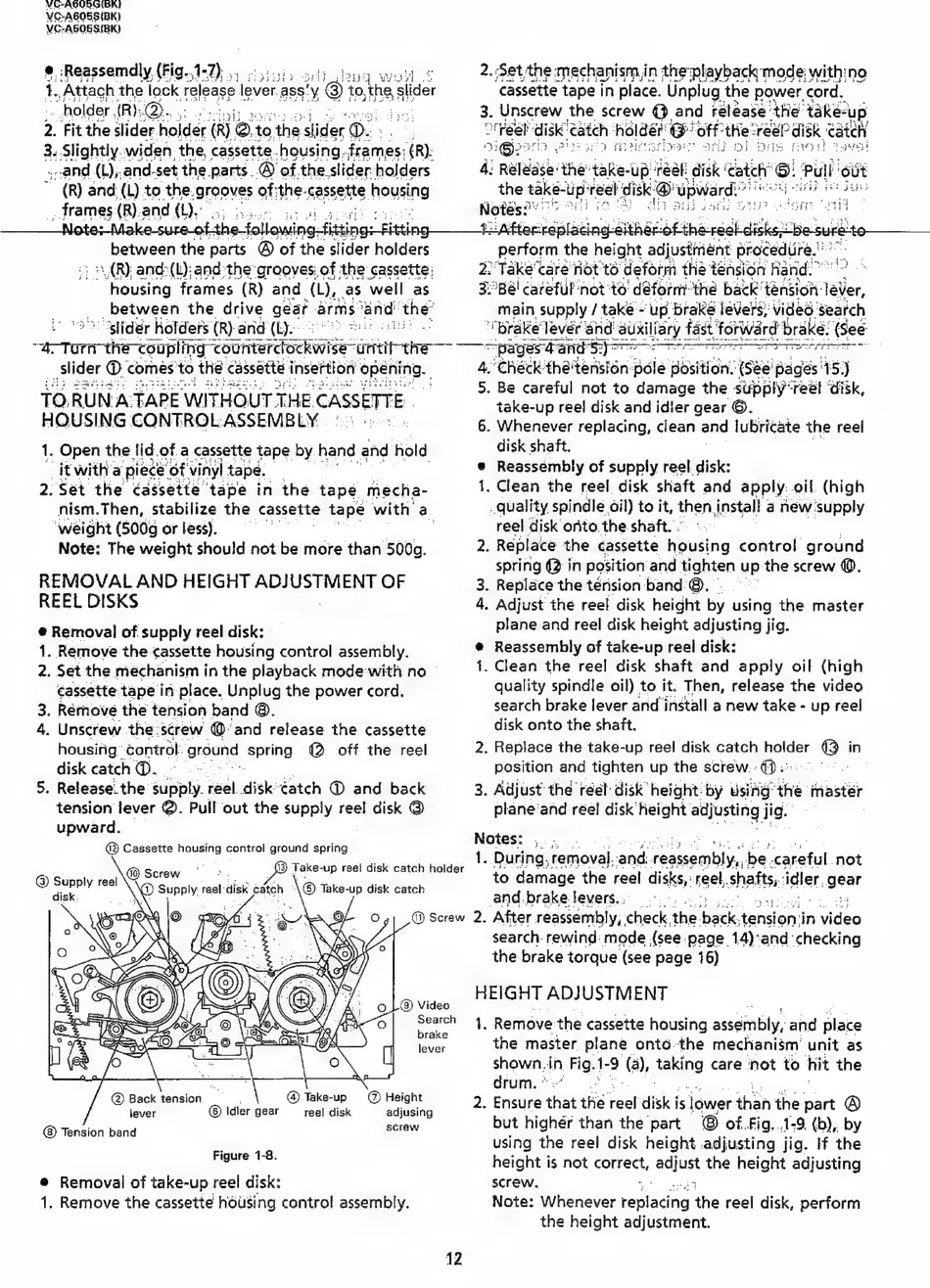

Sharp VC-A605G Serviceanleitung Seite 12

VC-ASOSGIBR}
VC-AG05SIBK)
VC-A505SIBK)
@ :Reassemdly (Fig-,1-7) .) -3:, 34
1. Attach the lock release 'lever.ass' y
"holder (RQ. 0 oe typ
2. 'Fit the slider. holder ® oN to the slider @.
3. Slightly. widen. the, cassette. housing, frames: €R):
and (L);. and-set the parts ® of the. slider holders
~ (R) and ae) to the. sar OOYES of; the. Cassette housing
frames (R).and (1),
@ to, Ha slider
2. Set the: mechanism
'cassette tape in place. Unplug the power. cord.
3. Unscrew the screw 4} and release tHe' take= "up
m3 at disk atch holder Soff 'the: feeb disk atch
hy; Seok PRPs yas me ids : cy
min theiplayback mode withino
Fast
between the parts ® of the slider holders
+s (R); and:(L): and the grooves: of the cassette:
housing frames '(R) and (LU), as 'well as
between the drive gear arms aa the:
glider Holders (R)-and (L). wit Ht.
' tare tees upling counte rT RISE atte os pages 4 and 7 cao
. Slider oO. comes 'to the cassette insertion operiing. |
TO, RUN: rN FAPE WITHOUT TI THE CASSET TE
HOUSING CONTROL:ASSEMBLY. .
1. Open the lid.of a cassette tape by hand and hold
_itwitha piece: 'ot vinyl tape. .
2. Set the cassette 'tape in the tape mecha-
nism.Then, stabilize the cassette tape with a
'weight (500g or less).
Note: The weight should not be more than 500g.
REMOVAL AND HEIGHT fable ENT OF
REEL DISKS
@ Removal of supply reel disk:
1. Remove the cassette housing control assembly.
2. Set the mechanism in the playback mode:with no ©
€assette tape in place. Unplug the power cord.
3. Remove thé tension band @.
4. Unscrew the:screw @'and release the cassette
housing' control. ground spring (@ off the reel
disk catch @.
S, Release. the ppl: reel disk: éatch @ and back
tension lever @. Pull out the supply reel disk @
upward. —
(2 Cassette nOuADY control ground spring
Take-up reel disk catch holder
\® Take-up disk catch
(0) Screw
Vo Supply ree! disk catch
ae @
@) Supply reel
disk.
ia u. to © Og) _@) Screw
(3) Video
0 Search
brake
lever
@) Back tension ia @) Take-up @) Height
lever @® Idler gear _— reel disk adjusing
Tension band Palen
Figure 1-8.
@ Removal of take-up reel disk:
1. Remove the cassette housing control assembly.
12
perform the height adjustinent progedire."
2: Take' care Hot to deform the tension Rand. ©
3Ba! careful not to: d@forr: "the back' tension: lever,
main supply / take ~ up brake levers}: video $eatch
i 'Brake' levér and auxiliary fast foiward brake: (See
e Reppert:
4. CHéck:thétension: pole position: (S86 pagés 45)
. Be careful not to damage the supply eet disk,
take-up ree! disk and idler gear ©.
6. Whenever replacing, clean and lubricate the reel
disk shaft.
® Reassembly of supply reel. disk:
1. Clean the reel disk shaft and apply: il (high
quality spindle. oil) to it, then. install a new supply
reel disk orito.the shaft. .
2. Replace the cassette poten contro! ground
spring @2 in position and tighten uP the screw @.
3. Replace the tension band ©.
4. Adjust the reel disk height by using the master
plane and reel disk height adjusting jig.
@ Reassembly of take-up reel disk:
1. Clean the ree! disk shaft and apply oil (high
quality spindle oil) to it. Then, release the video
search brake lever and install a new take - up reel
disk onto the shaft.
2. Replace the take-up reel disk catch holder 3 in
position and tighten up the screw.: 49 «- .
3. Adjust the réel disk height by using: the hati
plane'and reel disk height adjusting jig.
ui
Notes: ,..
1. During, removal. and ey he. capatul, not
to damage the reel disks, : reel, shafts, idler, sia
and.brake levers. 9...
2. After reassembly, . check the. eee, fencion: 'in Aides
search rewind mode (see. page 14)-and 'checking
the brake torque (see page 16)
HEIGHT ADJUSTMENT
i. Remove the cassette housing assembly, and jlace
the master plane onto. the mechanism unit as
sown. in \ Fig. | "9 (a), ae care not to hit the
drum. °
2. Ensure thet the teal disk is. jower than the part ®
but highér than the part © of.fig,.1-9 (b), by
using the reel disk height adjusting jig. If the
height is not correct, clus the height adjusting
screw.
Note: Whenever faplading the reel disk, perform
the height adjustment.
