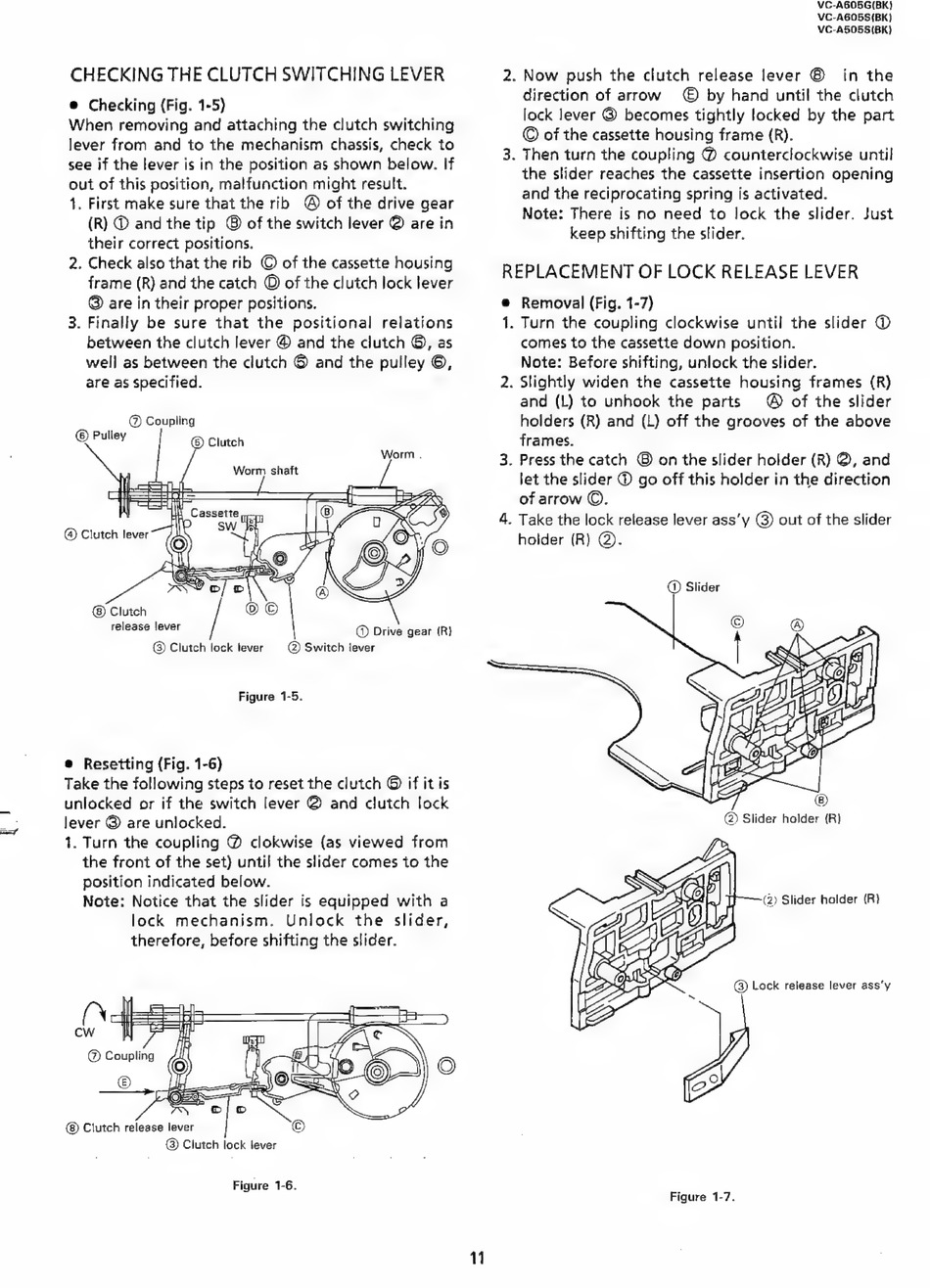

Sharp VC-A605G Serviceanleitung Seite 11

CHECKING THE CLUTCH SWITCHING LEVER
® Checking (Fig. 1-5)
When removing and attaching the clutch switching
lever from and to the mechanism chassis, check to
see if the lever is in the position as shown below. If
out of this position, malfunction might result.
1. First make sure that the rib @® of the drive gear
(R) © and the tip ® of the switch lever @ are in
their correct positions.
2. Check also that the rib © of the cassette housing
frame (R} and the catch © of the clutch lock lever
@ are in their proper positions.
3. Finally be sure that the positional relations
between the clutch lever @ and the clutch @, as
well as between the clutch © and the pulley ©,
are as specified.
@) Coupling
@ Pulley © Clutch
Worm shaft
Clutch
(3) Clutch lock lever @) Switch fever
Figure 1-5.
e Resetting (Fig. 1-6)
Take the following steps to reset the clutch @ if it is
unlocked or if the switch lever @ and clutch lock
lever @ are unlocked.
1. Turn the coupling @ clokwise (as viewed from
the front of the set) until the slider comes to the
position indicated below.
Note: Notice that the slider is equipped with a
lock mechanism. Unlock the slider,
therefore, before shifting the slider.
Clutch release lever
(3) Clutch lock sever
Figure 1-6.
11
2
VC-AGO5G(BK}
VC-AG6G05S(BK}
VC-A505S(8K)
Now push the clutch release lever © in the
direction of arrow © by hand until the clutch
lock lever @ becomes tightly locked by the part
© of the cassette housing frame (R).
. Then turn the coupling @ counterclockwise until
the slider reaches the cassette insertion opening
and the reciprocating spring is activated.
Note: There is no need to lock the slider. Just
keep shifting the slider.
REPLACEMENT OF LOCK RELEASE LEVER
Removal (Fig. 1-7)
. Turn the coupling clockwise until the slider @
comes to the cassette down position.
Note: Before shifting, unlock the slider.
. Slightly widen the cassette housing frames (R)
and (L) to unhook the parts @ of the slider
holders (R) and (L) off the grooves of the above
frames.
. Press the catch © on the slider holder (R) @, and
let the slider © go off this holder in the direction
of arrow ©.
. Take the lock release lever ass'y @) out of the slider
holder (R) @).
(1) Slider
Figure 1-7.
