SELECTION OF INSTALLATION PLACE
Height of ceiling
When height of the ceiling exceeds 3.0m, it is difficult
that the hot air reaches up to the floor surface. In this
case, it is necessary to exchange the motor speed-up
by using a connector, which is attached to the air
conditioner unit.
Installable height of ceiling
Up to 3.0m
3

INSTALLATION OF INDOOR UNIT

Install the air conditioner certainly to sufficiently withstand the weight.
If the strength is insufficient, the unit may fall down resulting in human injury.
Perform a specified installation work to guard against strong wind or earthquake.
An incomplete installation can cause accidents by the units falling and dropping.
Strictly comply with the following rules to prevent damage of the indoor units and human injury.
• Do not put a heavy article on the indoor unit. (Even units are packaged)
• Carry in the indoor unit as it is packaged if possible. If carrying in the indoor unit unpacked by necessity, be
sure to use buffering cloth, etc. to not damage the unit.
• To move the indoor unit, do not apply force to the refrigerant pipe, drain pan, foamed parts, or resin parts, etc.
• Carry the package by two or more persons, and do not bundle it with band at positions other than specified.
• The hanging bolt pitch on longitudinal direction is not divided at center with the ceiling opening size.
Therefore, check the relational position in the followering figure.
If relational position is incorrect, the check panel cannot be installed.

In case of wireless type

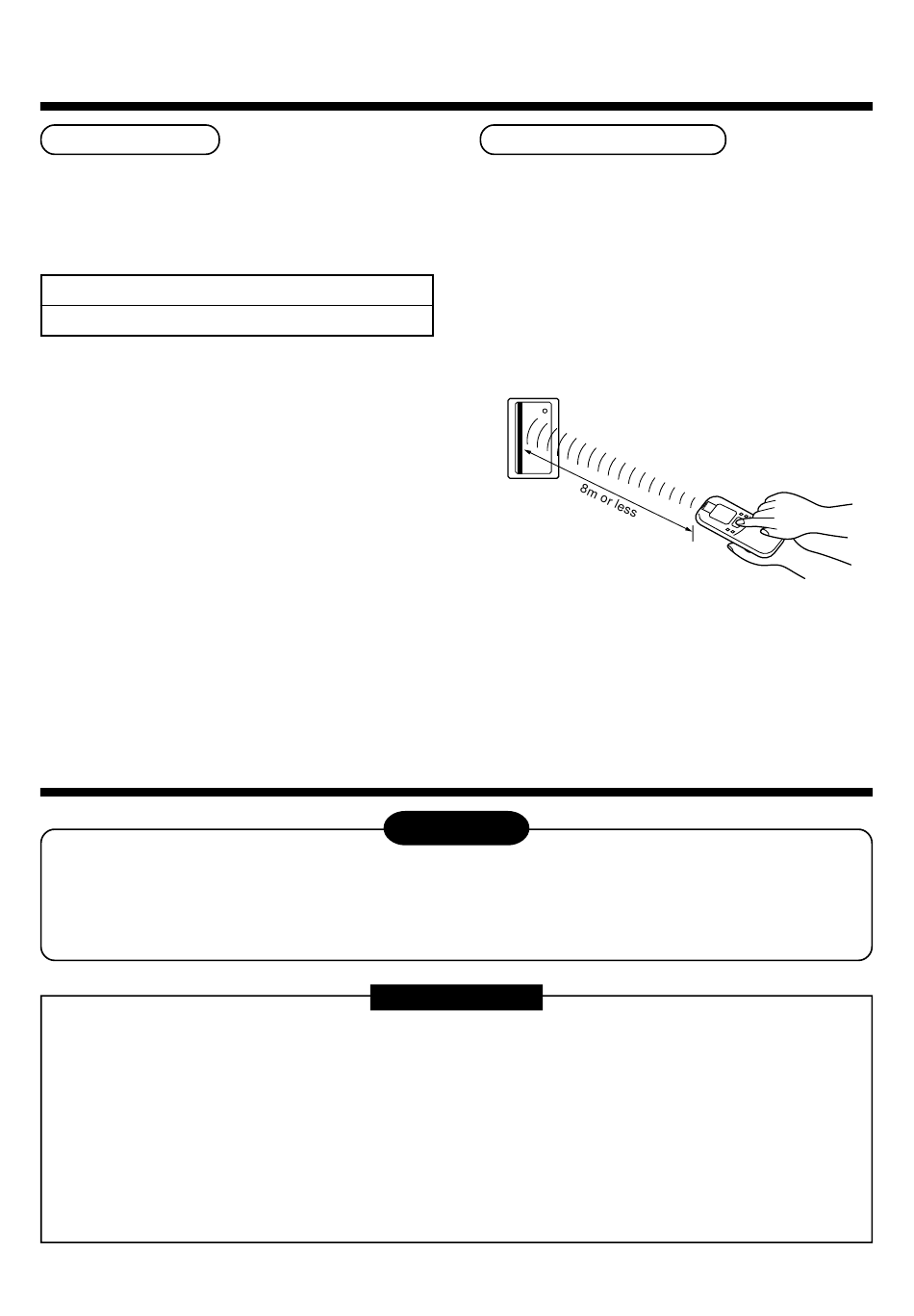

The sensor of indoor unit with wireless remote
controller can receive a signal within approx. 8m.
Based upon it, determine a place where the remote
controller is operated and the installation place of the
indoor unit.
• To prevent a malfunction, select a place where is not
influenced by a florescent light or direct sunlight.
• Two or more (Up to 6 units) indoor units with
wireless remote controller can be installed in the
same room.
