TV70 Navigator Controller

The controller can be mounted in two position:
To install the controller execute please refer to the outline drowings.
The L-shaped bracket is available as an option.
NOTE

Pump Connection

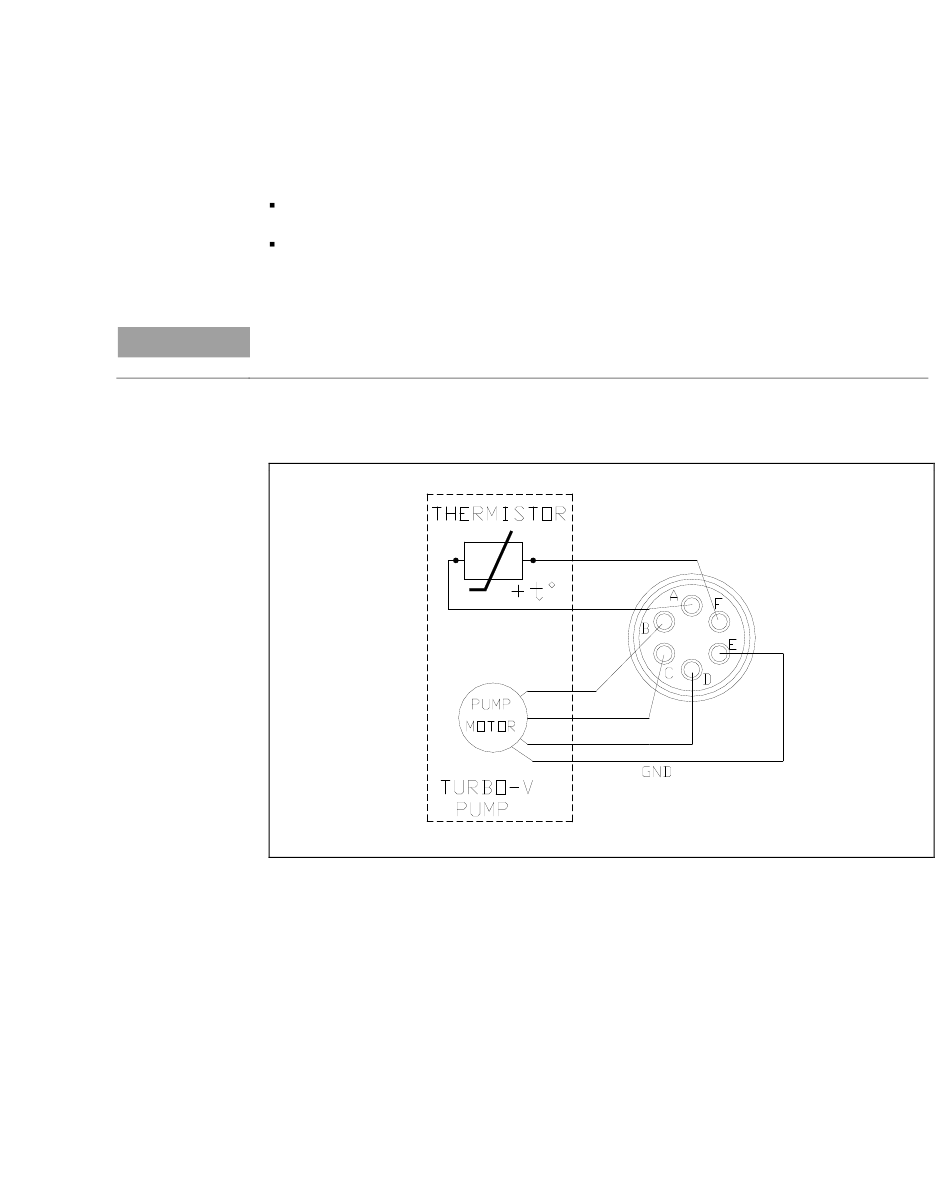

Figure 15
The turbopump is connected to the controller through an 6-pin
connector. Pins B, C and D are the 3-phase supply to the motor, pins
A and F are connected to the temperature sensor (NTC type, 30 K
resistance at 25° C) and pin E is connected to the pump ground.
If the temperature sensor is disconnected, the pump will not start. To
prevent damage to the pump when the temperature exceeds 60° C,
the sensor automatically cuts out the power supply.
Controller TV70 Navigator User Manual / 87-900-956-01 (G)
bottom mounting
side mounting.
