• - If the liquid gets into the eyes, rinse them immediately with plenty
of clean water for at least 10 minutes and seek medical advice.
• - Do not use a battery that is damaged or modified. Damaged or
modified batteries may act unpredictably, leading to fire, explosion
or danger of injury.
• - The battery must not be exposed to moisture or water.
• - Always keep the battery away from a heat source. Do not leave
it in a high temperature environment (in direct sunlight, near
radiators or anywhere where the temperature exceeds 50°C) for
long periods of time.
• - Do not expose the battery to fire or excessive heat. Exposure
to fire or temperatures above 130°C may cause an explosion.
• NOTE! A temperature of 130°C can be specified as 265°F.
• - Do not cover or plug a lit tool with a cloth or cardboard etc.
Covering or plugging may cause a flame.
• - The lamp is not waterproof. Do not use it in damp or wet locations.
Do not expose it to rain or snow. Do not wash it in water.
• - Do not touch the inside of the lamp head with tweezers, metal
tools, etc.
• - Do not allow the lamp to be strongly shaken by dropping, bumping,
etc.
• - Follow all charging instructions, do not charge the battery at
a temperature outside the range specified in the rating data
table in the manual. Charging incorrectly or at temperatures
outside the specified range can damage the battery and increase
the risk of fire.

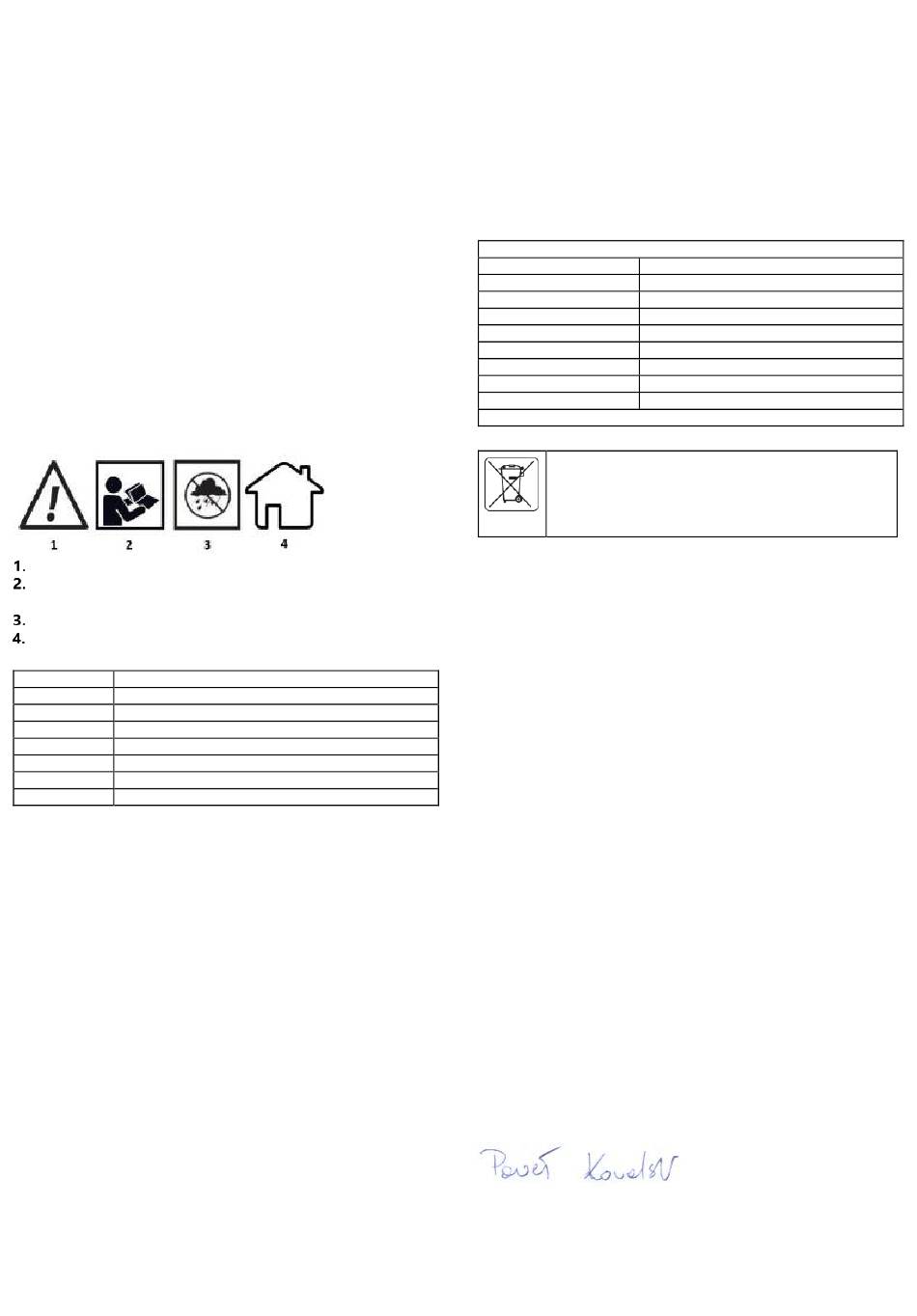

PICTOGRAMS AND WARNINGS
ATTENTION! Take special precautions!
Read the operating instructions, observe the warnings and safety
conditions contained therein!
Protect from rain
For indoor use
DESCRIPTION OF THE GRAPHIC ELEMENTS
Designation
1 Transport handle
2 LEDs
3 Switch / modes of light
4 Battery socket
5 Pressure knobs
6 Basis
7 Stabilisers
PURPOSE
Portable rechargeable lamp, with regulation of light intensity and angle.
Designed to illuminate the workplace, leisure as an emergency source of
light. Easy to transport thanks to the transport handle which also gives the
possibility to hang the lamp.
LAMP OPERATION
Before use, make sure the battery is charged and the lamp switch is in
position "0" fig. B2.
Battery installation deinstallation
To insert the battery in the socket Fig. A4 you have to tilt the lamp so that
the light source is facing the base. In this position access to the socket
Fig. A4 is easier. Insert the battery into the socket until you hear a distinct
click. To remove the battery pack from the socket, first press the red button
on the battery case and then pull it to the right.
Switching the lamp on and off
A switch/regulator is used to switch on and change the light output of the
lamp, fig. A3; fig. B.
Switch in position "0" - lamp off Fig. B1
Switch in position "I" - lamp switched on at full power Fig. B2
Switch in position "II" - lamp switched on at half power Fig. B3
The lamp base has stabilisers fig. A7 made of plastic. Make sure that the
side stabilizers fig. A7 are moved towards the back of the lamp. This will
prevent the lamp from tilting back under the weight of the battery.
Lamp angle adjustment
To lock the selected position of the lamp, use the pressure knobs fig. A5.
It should be done with feeling, firmly enough so that the lamp does not
change direction, but not too firmly so as not to damage the unit.
Description
Handle angle adjustment
To adjust the handle, use a hex key to loosen the Hex bolts by turning
counterclockwise. Adjust the handle angle to the desired position . Then
retighten the screws clockwise.
MAINTENANCE AND STORAGE
Disconnect the battery from the lamp before cleaning and storage. Use a
dry cloth for lamp maintenance, with a mild detergent in case of heavy dirt.
Do not immerse the lamp in water or other solutions. If moisture gets into
the lamp, it may cause a short circuit and thus lamp failure or fire in special
cases.
If the lamp is unused for an extended period of time, remove the battery
pack from the lamp. Store the lamp in a dry place.
Rated data
Supply voltage
Rated power
Number of diodes
Diode type
Luminous power
Degree of protection
Protection class
Dimensions H/Hg/W
Mass
58GE109 indicates both the type and the machine designation
ENVIRONMENTAL PROTECTION
Electrically powered products should not be disposed of with household
waste; instead they should be taken to the appropriate disposal facilities.
Please consult your product dealer or local authority for information on
disposal. Waste electrical and electronic equipment contains substances
that are not harmful to the environment. Equipment which is not recycled
poses a potential hazard to the environment and human health.
"Grupa Topex Spółka z ograniczoną odpowiedzialnością" Spółka komandytowa with
headquarters in Warsaw, ul. Pograniczna 2/4 (hereinafter: "Grupa Topex") informs that all
copyrights to the content of this manual (hereinafter: "Manual"), including among others.
Its text, photographs, diagrams, drawings, as well as its composition, belong exclusively
to Grupa Topex and are subject to legal protection under the Act of 4 February 1994 on
Copyright and Related Rights (ie Journal of Laws 2006 No. 90, item 631, as amended).
Copying, processing, publishing, modification for commercial purposes of the entire
Manual, as well as its individual components, without the consent of Grupa Topex
expressed in writing, is strictly prohibited, and may result in civil and criminal liability.
EU Declaration of Conformity
Manufacturer: Grupa Topex Sp. Z o.o. Sp.k., ul. Pograniczna 2/4 02-285
Warszawa
Product: Cordless LED lamp
Model: 58GE109
Commercial name: GRAPHITE
Serial number: 00001 ÷ 99999
This declaration of conformity is issued under the sole responsibility of
the manufacturer.
The product listed above is in conformity with the following EU Directives:
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU as amended by Directive 2015/863/EU
And fulfills requirements of the following Standards:
EN 60598-1:2015/A1:2018; EN 60598-2-4:2018; EN 60598-2-5:2015;
EN 62493:2015;
EN IEC 55015:2019/A11:2020; EN 61547:2009;
IEC 62321-2:2013; IEC 62321-3-1:2013; IEC 62321-4:2013+A1:2017;
IEC 62321-5:2013; IEC 62321-6:2015; IEC 62321-7-1:2015; IEC 62321-
7-2:2017; IEC 62321-8:2017
This declaration relates exclusively to the machinery in the state in which
it was placed on the market and excludes components which are added
and/or operations carried out subsequently by the final user.
Name and address of the person residing or established in the EU and
authorized to compile the technical file:
Signed for and on behalf of:
Grupa Topex Sp. Z o.o. Sp.k.
Ul. Pograniczna 2/4
02-285 Warszawa
Paweł Kowalski
GRUPA TOPEX Quality Agent
Warsaw, 2022-05-11
5
18V DC
20 W
20
LED
( I ) 2000 lm ( II ) 1000 lm
IP20
III
230x230x270 mm
720 g without battery
